The 48RE transmission is the weakest point on a Dodge Cummins truck, failing not only on trucks with minor upgrades but even in stock form. A heavy duty truck needs parts which can stand up to heavy trailers, stop-and-go commutes, or high-horsepower applications—that's why ATS modifies the transmission to make it the strongest and most reliable part of your drivetrain.
Stage 3 Performance Upgrades:
Enhanced Clutch Packs: ATS increases the clutch count in the Forward, Overdrive, and Overdrive Brake clutch packs for much higher torque capacity in each gear, using Borg Warner and Raybestos clutches for high torque strength, longevity, and reliability.
Billet Components: The factory sheet metal strut anchor is replaced with a much stronger billet strut anchor for more precise band application, and the factory plastic accumulator piston is replaced with a billet unit. Package includes ATS Billet Input Shaft for enhanced strength.
High-Performance Band System: Features a 1:5.0 ratio apply lever with Borg Warner red lining band using performance friction material capable of holding higher power levels.
Modified Valve Body: Extensively modified valve body with the ability to lock the torque converter in 1st and 2nd gear, circulate transmission fluid in park/reverse/neutral, machined TV valve passage with proprietary TV valve sleeve, and increased line pressure. Available in towing or racing configurations—the towing version delivers smooth, quick, crisp shifts for street driving and trailer towing.
Complete Package Includes:

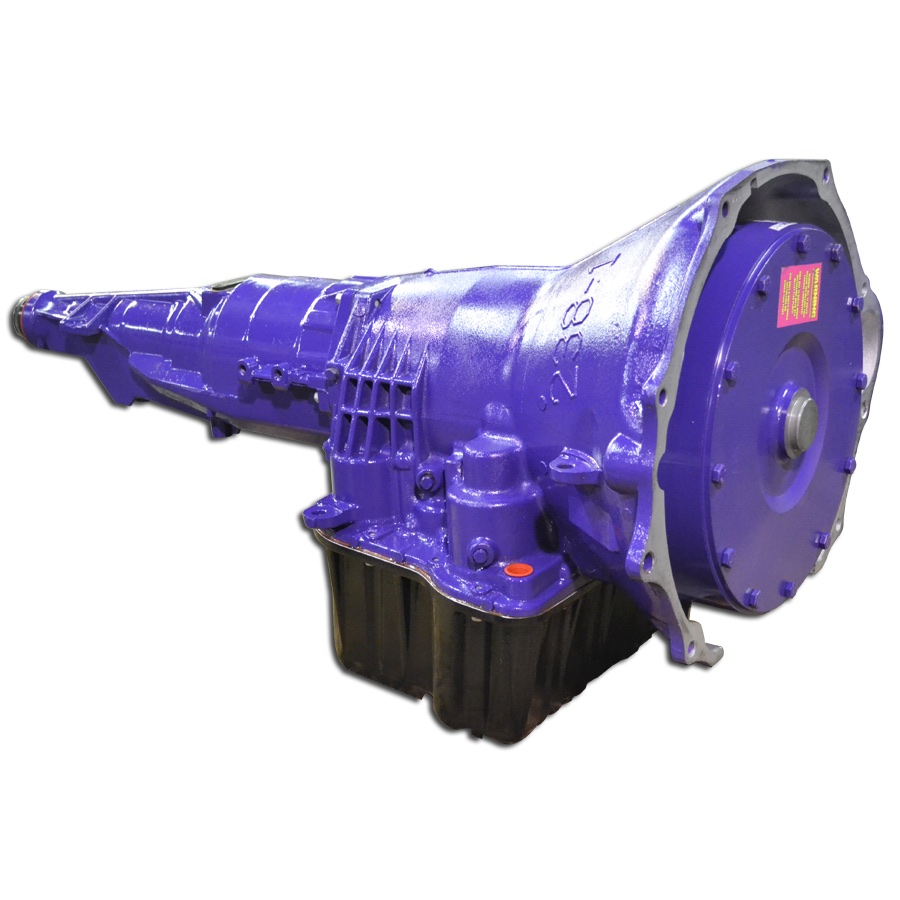

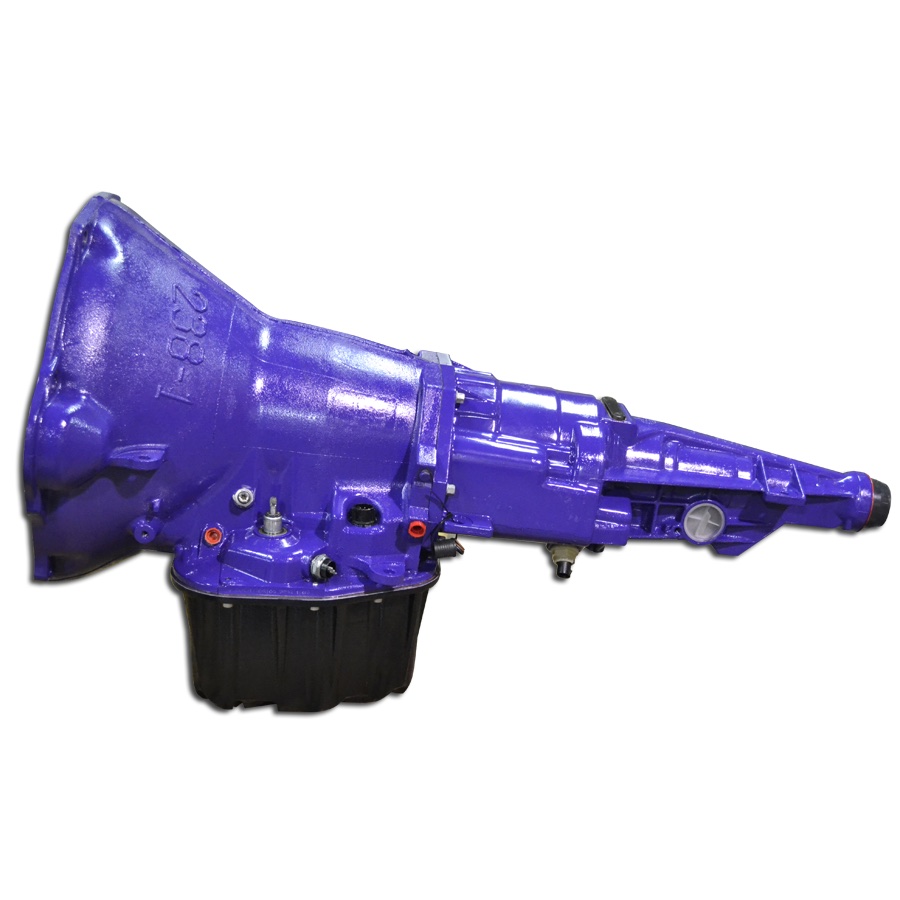

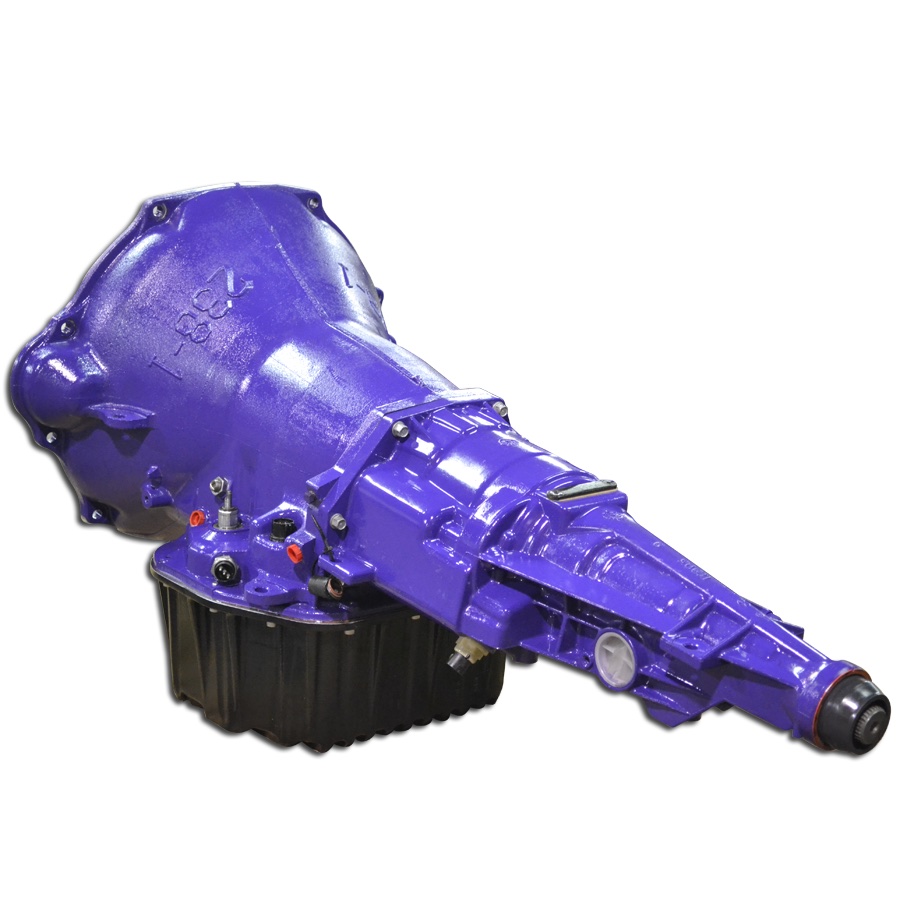

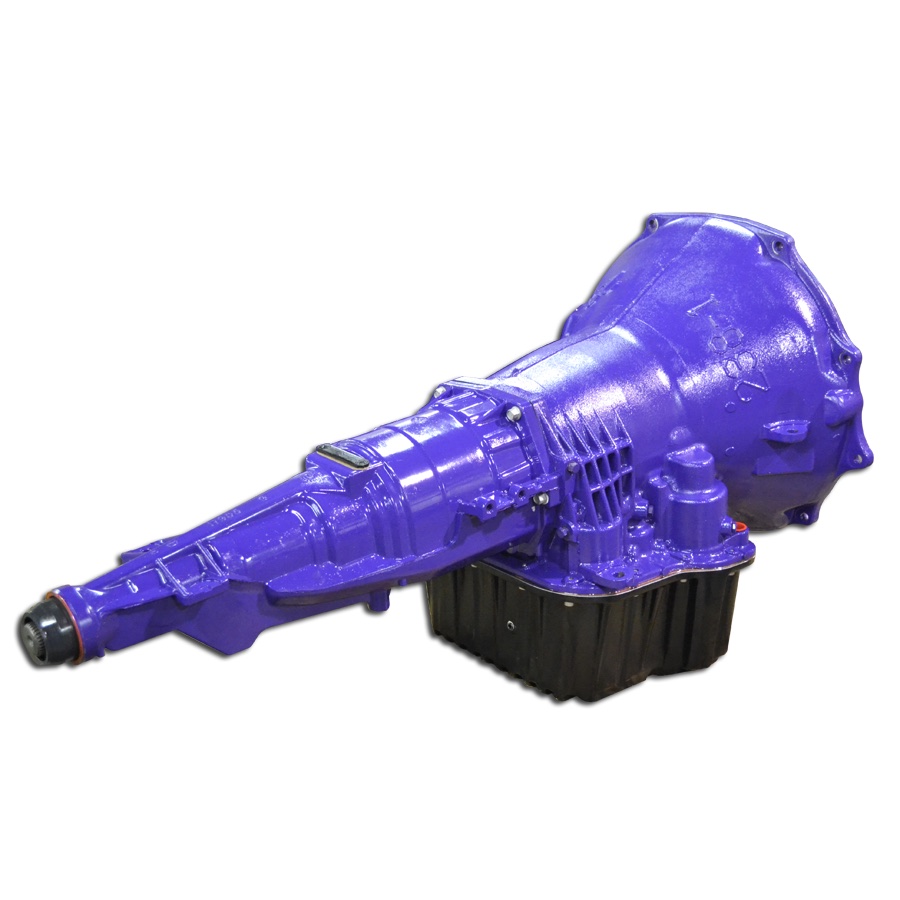

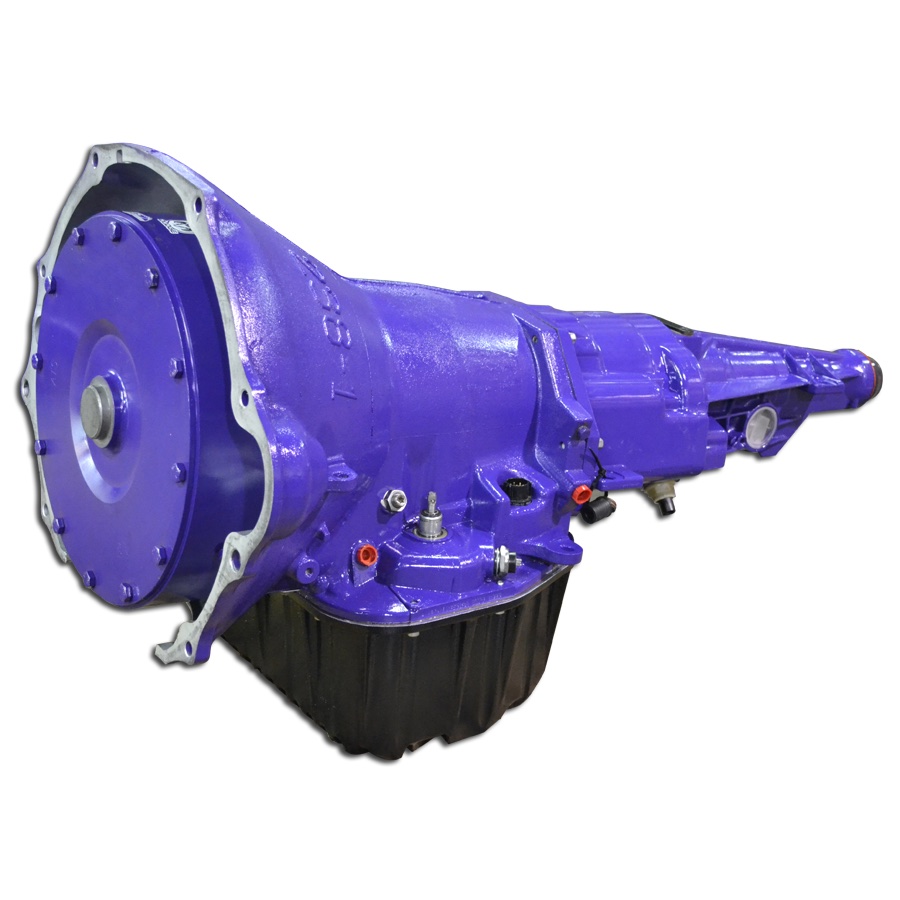

- ATS Built 48RE Automatic Transmission
- ATS 5 Star Viskus Clutch Drive Torque Converter

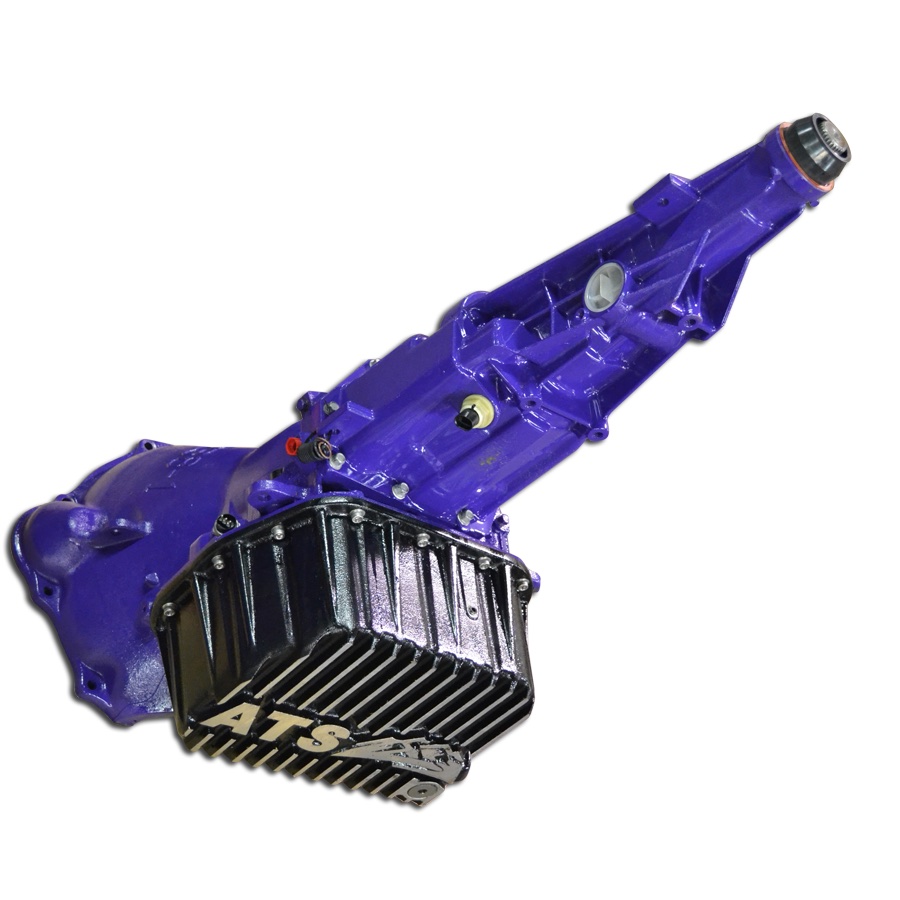

- ATS Extra Deep Transmission Pan
- ATS Billet Input Shaft
- ATS CoPilot Torque Converter Lock-Up Controller
Every ATS transmission is dyno tested under load behind a diesel engine to ensure full pressure at full lock-up torque before shipping, backed by an available 5-year, 500,000 mile warranty. Designed specifically for Early 2004 Dodge Ram 2WD trucks with T.V. cable configuration.
Note: A separate $1,600 core charge applies to this transmission package.
