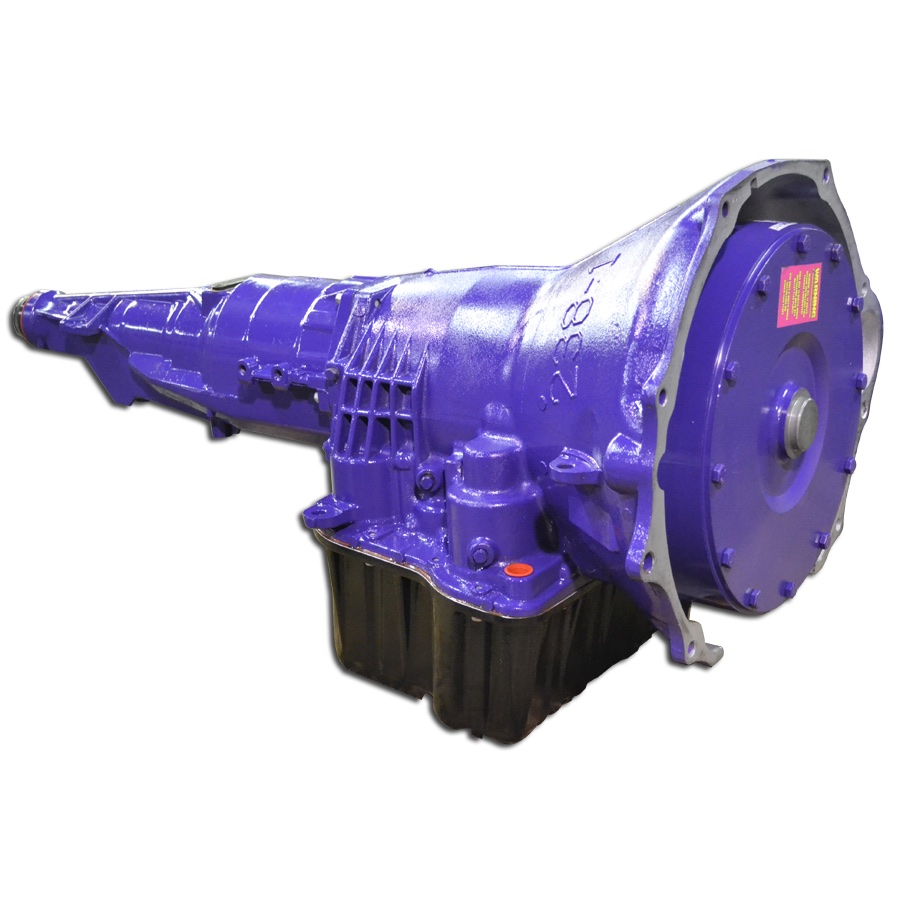

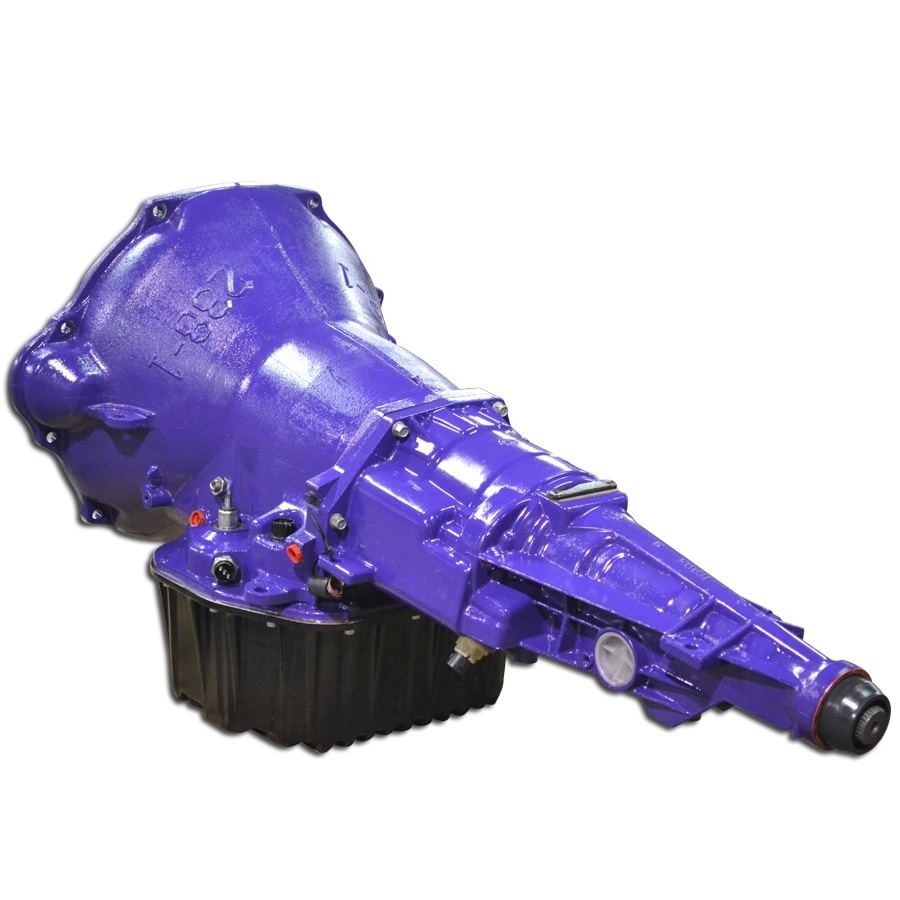

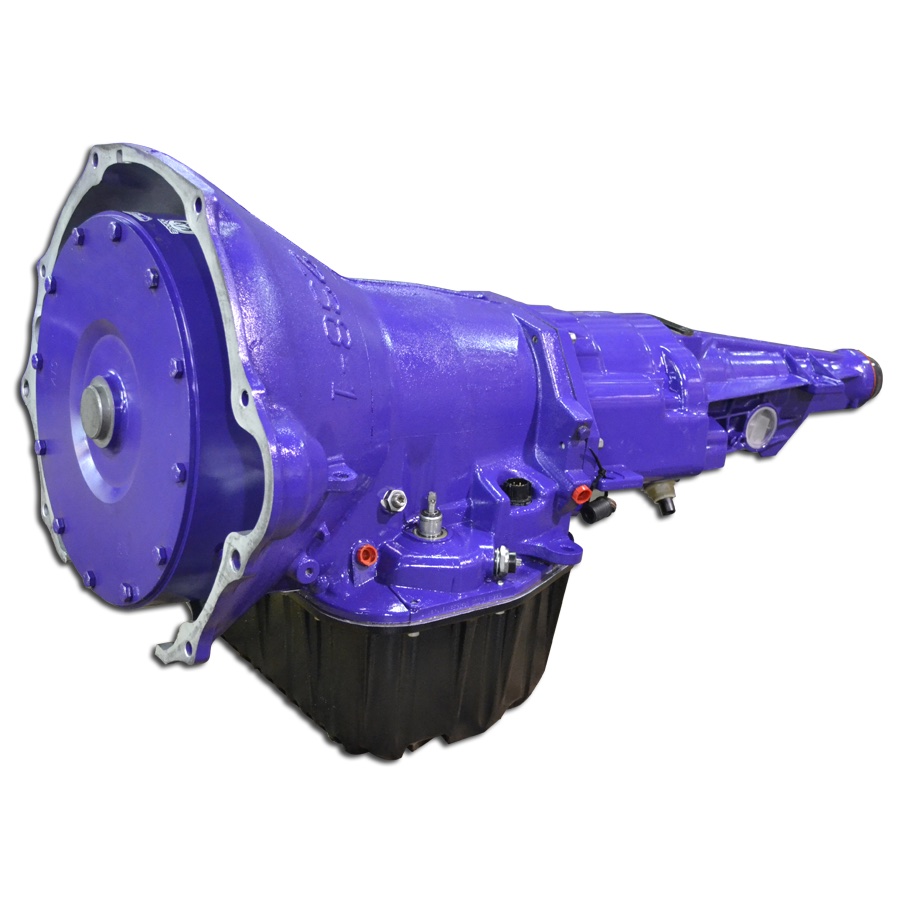

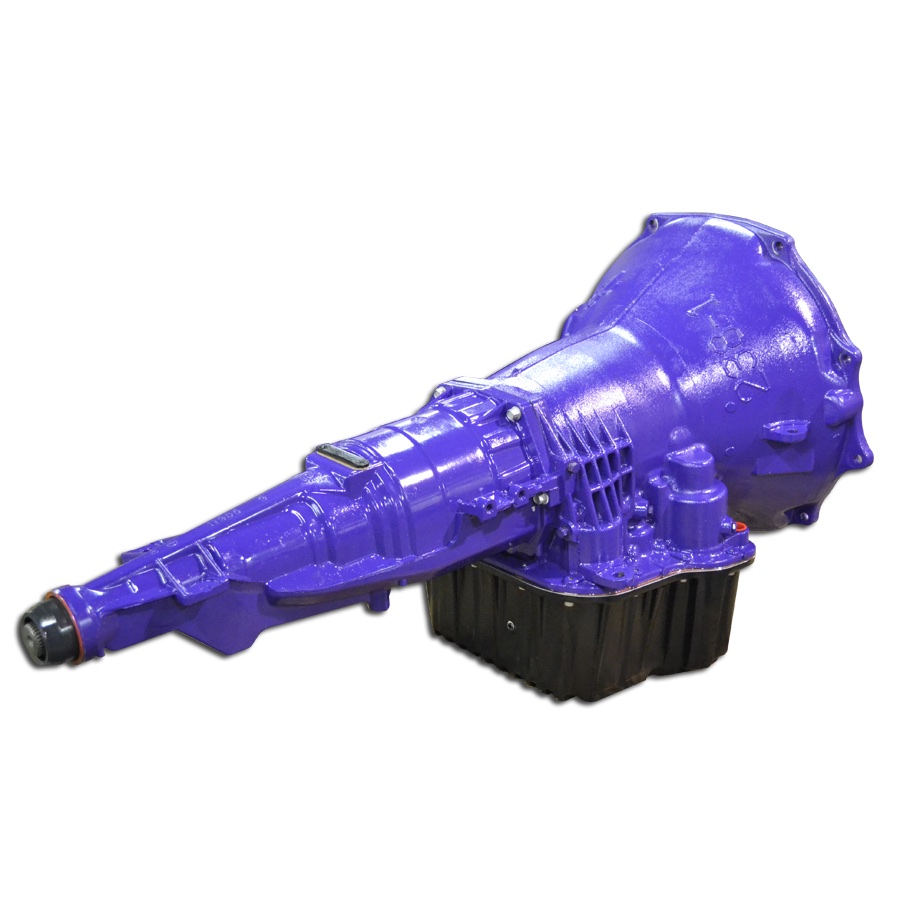

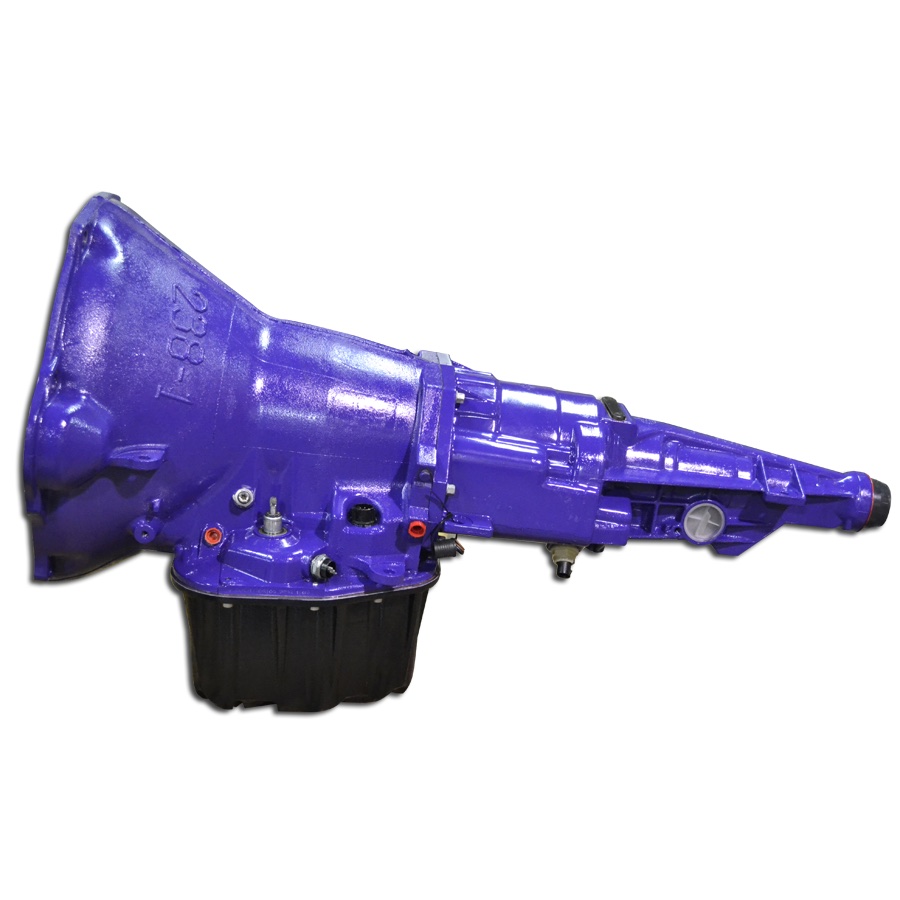

ATS Diesel 3099262188 Stage Transmission Package Dodge Cummins - 47RE 2 1996-1998 2WD 5.9L

The ATS Diesel 47RE Stage 2 Transmission Package is designed specifically for 1996 to early 1998 Dodge Ram 2WD trucks equipped with the 12-valve 5.9L Cummins diesel engine and represents the first partially electronic transmission offered in this platform. This Stage 2 package is engineered for trucks with stock to moderate power increases, light and heavy towing, and daily driving applications. The Stage 2 build is rated for up to 500 horsepower.

Key Features and Components:

• ATS Five Star billet torque converter with patented Vikus clutch drives featuring five square tab lock-up clutches designed for heavy loads and reliable power transfer
• Billet 300M input shaft and forward hub with two-piece design engineered to withstand greater than stock power, earlier torque converter lock-up, increased towing weight, and racing applications
• ATS Deep Pan with finned design that dissipates heat and adds five quarts of fluid capacity versus stock to keep transmission temperatures under control
• Precisely machined pressure plates with one additional forward clutch and one additional direct clutch, plus high performance bands, billet band strut, billet accumulator piston, and heavy duty overdrive bearings
• Modified valve body with Teflon sleeve bore for precise valve control, capable of circulating fluid in park, reverse and neutral, locking the torque converter in any forward gear, and raising line pressure versus stock
• Four-speed transmission with aluminum case featuring purple finish and aluminum deep pan with black finish
• Includes speedometer adapter for 2WD applications

All high-stress areas of the transmission case are reinforced, and the external surface is sealed for maximum durability. This transmission package is backed by ATS's industry-leading 5-year/500,000-mile warranty. This is a remanufactured transmission sold as a complete kit.

Important Note: A separate core charge applies to this transmission package. This package is designed specifically for 1996 to early 1998 model year Dodge Ram 2500/3500 trucks with 2WD configuration and 12-valve Cummins diesel engines equipped with speedometer adapters.
