ATS Diesel 3099243140 Stage Transmission Package Ford - 2 E4OD 1992-94 7.3L 4WD

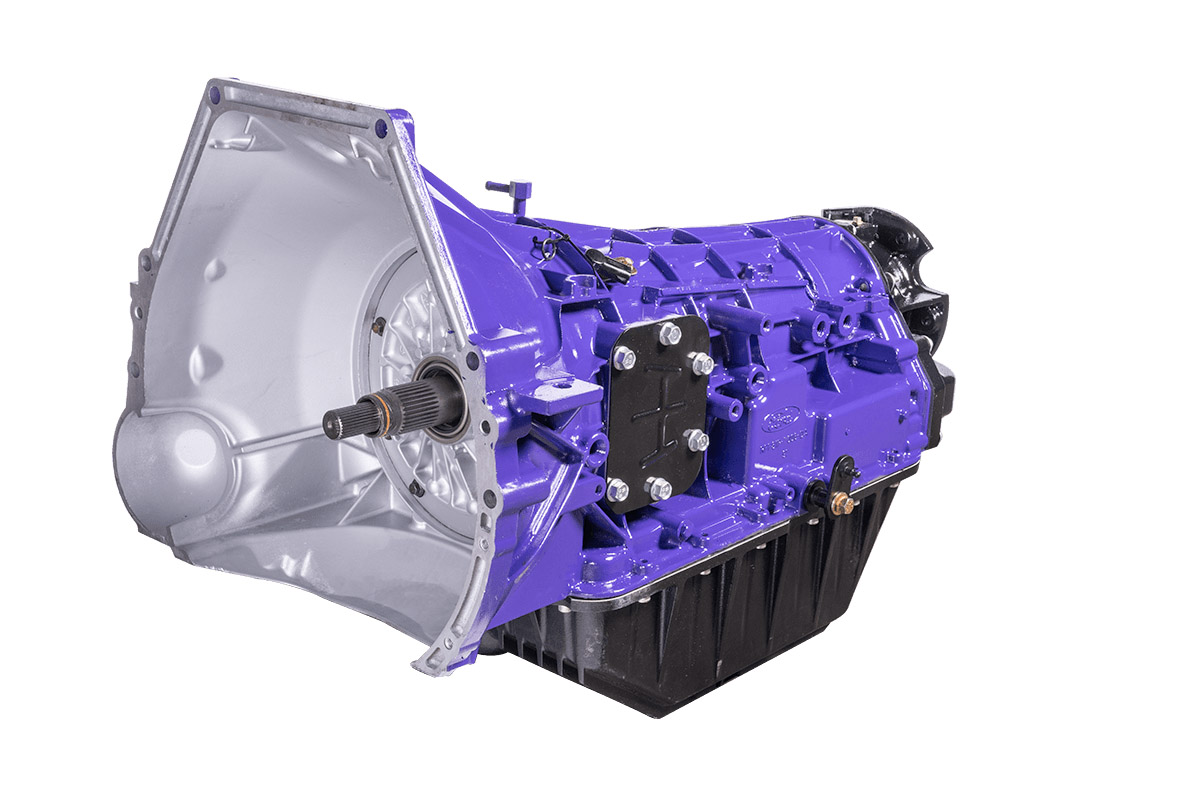

The ATS Diesel Stage 2 E4OD Transmission Package is a performance-built automatic transmission designed specifically for 1992-1994 Ford F-250 and F-350 trucks with 7.3L diesel engines and 4-wheel drive. This complete transmission package addresses the common failures of factory E4OD transmissions when subjected to increased diesel torque, heavy towing, and performance modifications.

Stage 2 Package Components:

• ATS Five Star Torque Converter with billet cover and five lock-up clutches, available in low or high stall configurations
• Billet input shaft made from 300M material for superior strength and reliability
• High-performance overdrive, intermediate, and forward clutch packs with one additional clutch per section
• Modified transmission pump to increase line pressure and clutch pack clamping force
• Precision-engineered valve body for crisp shifts and increased torque capacity
• ATS Deep Transmission Pan that adds 5 quarts of fluid over stock for improved cooling
• New bearings, seals, and gaskets throughout
• Heavy-duty low roller clutch, intermediate sprag, and bonded coast and overdrive pistons

Performance Benefits:

The Stage 2 package is engineered for trucks used in light to heavy towing applications, greater-than-stock power levels, and street performance. The billet input shaft withstands significantly greater torsional loads than the factory component, providing increased reliability under modified power conditions. Each transmission is dyno-tested under load to ensure reliable functionality and peak performance.

Industry-Leading Warranty:

This transmission package is backed by ATS Diesel's exceptional 5-year/500,000-mile warranty, demonstrating their confidence in the quality and durability of their engineering. All ATS transmissions are designed, manufactured, and tested in their Arvada, Colorado facility.

Important Notes:

This is a complete remanufactured transmission assembly. A separate core charge and crate charge will apply. Professional installation is recommended, and line pressures must be tested at time of installation for warranty validation.
