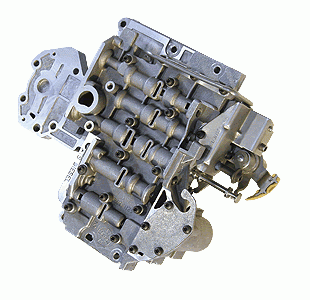

ATS Diesel 3039022164 Performance Valve Body Towing Edition 47RH Transmission

The ATS Diesel Performance Valve Body Towing Edition is engineered specifically for 1994-1995 Dodge trucks equipped with the 47RH transmission. This valve body serves as the control center of your transmission, managing shift timing, torque converter operation, and overall transmission reliability through precise hydraulic control.

Innovative Hydro-Balanced Valve and Sleeve Technology:

ATS has addressed common valve body failures with their proprietary hydro-balanced valve and sleeve design. Stock Dodge valve bodies are prone to valve sticking and bore wear due to soft materials. ATS solves this by placing hardened sleeves in the valve body bore and redesigning the valve material and shape, similar to a piston sleeve in an engine. This prevents sticking issues and dramatically extends component life.

Key Features:

• Progressive line pressure rise for smooth, quality shifts
• Sleeved throttle valves for extended durability
• Exhaust brake-ready design
• Allows 1st-2nd gear lock-up when used with ATS Commander
• Optimized for towing applications
• More aggressive line pressure slope while maintaining shift quality
• Superior torque converter clutch engagement

Warranty: Backed by ATS's industry-leading 5-year/500,000-mile warranty, demonstrating confidence in this re-engineered valve body design.

Important Note: This product requires a $200 core charge, which is refundable upon return of your rebuildable core valve body.
