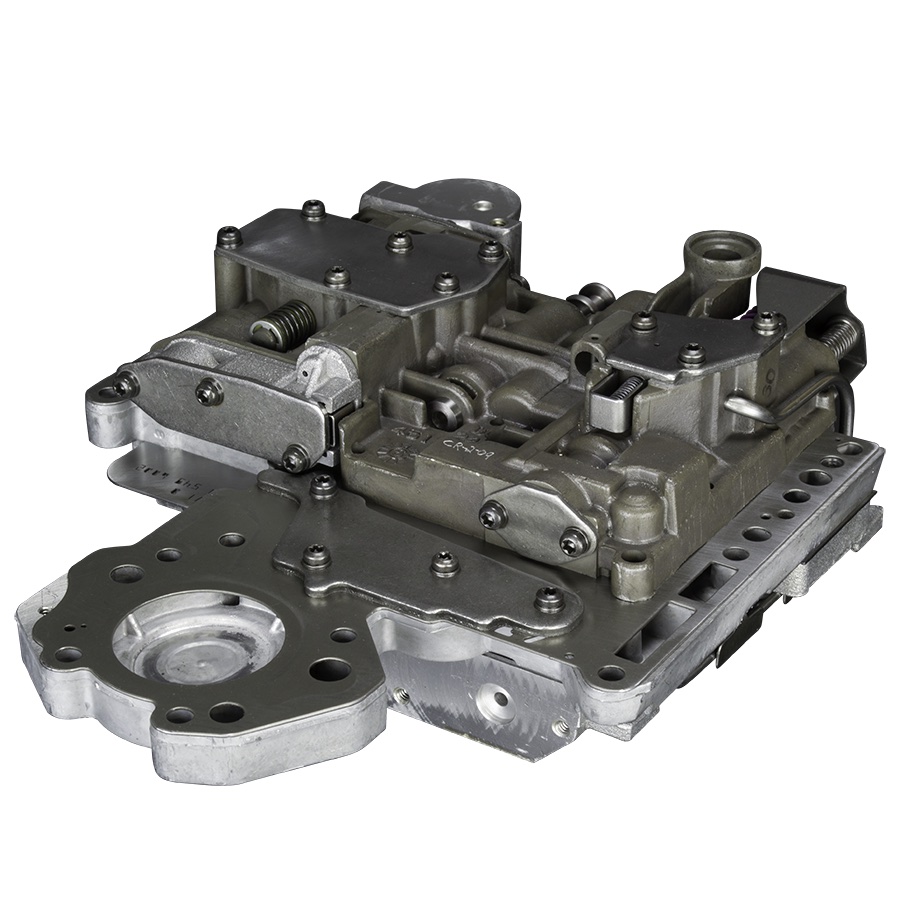

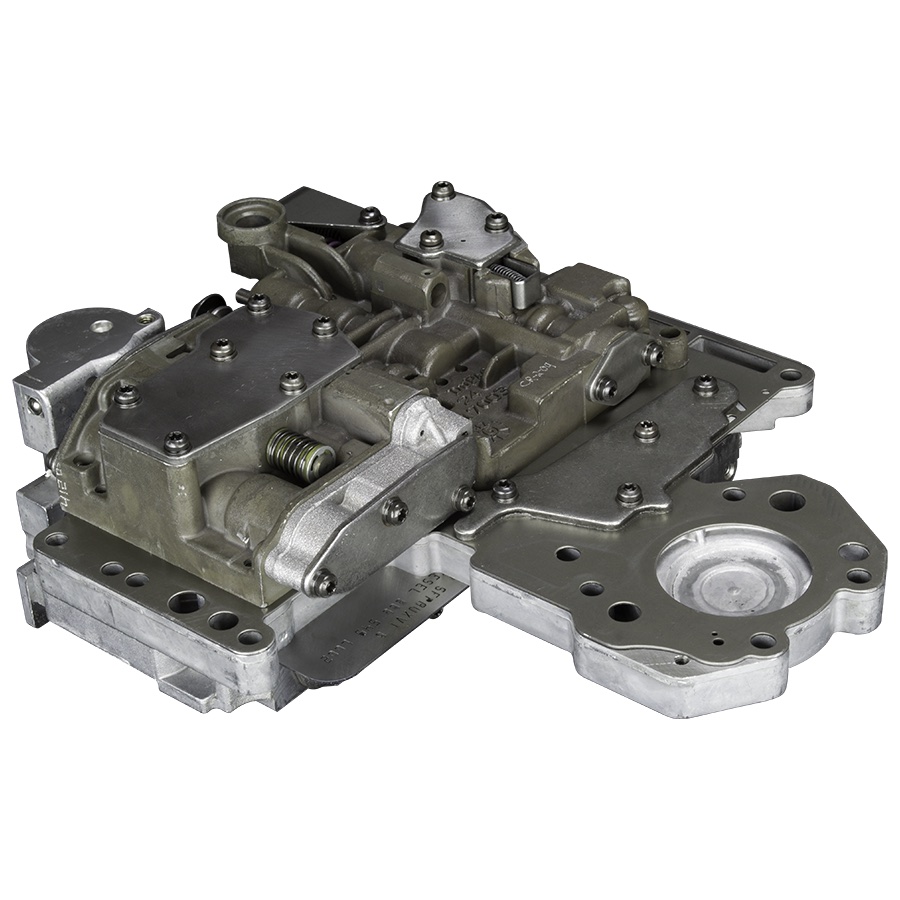

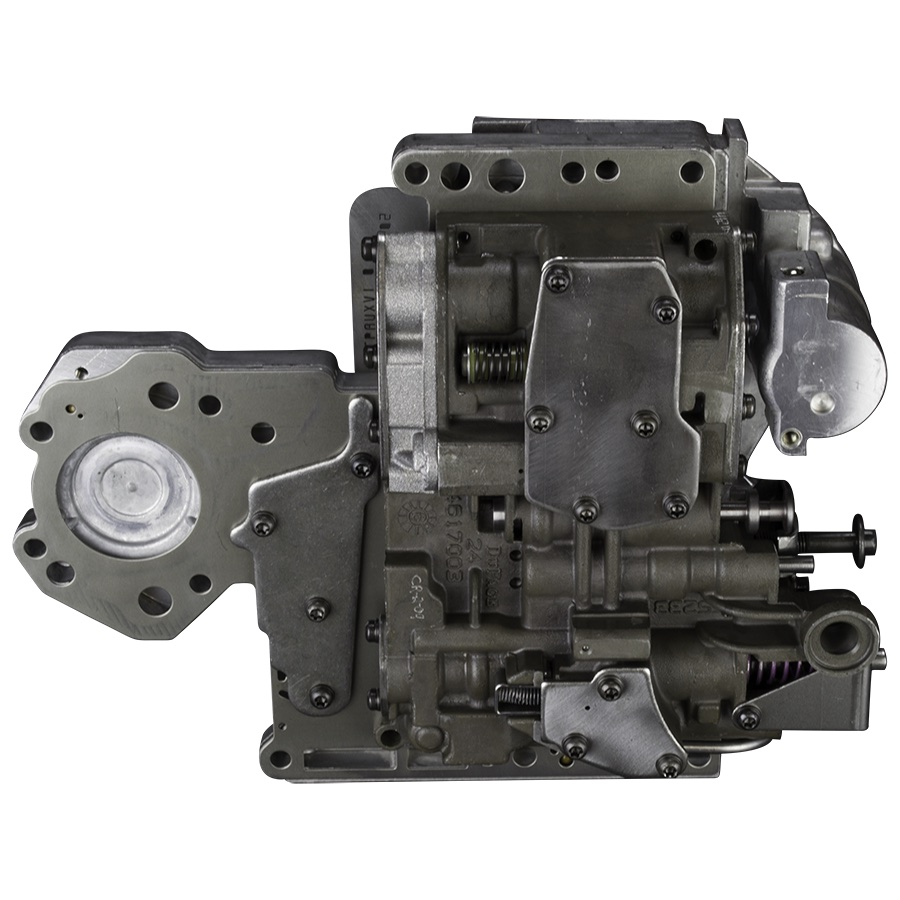

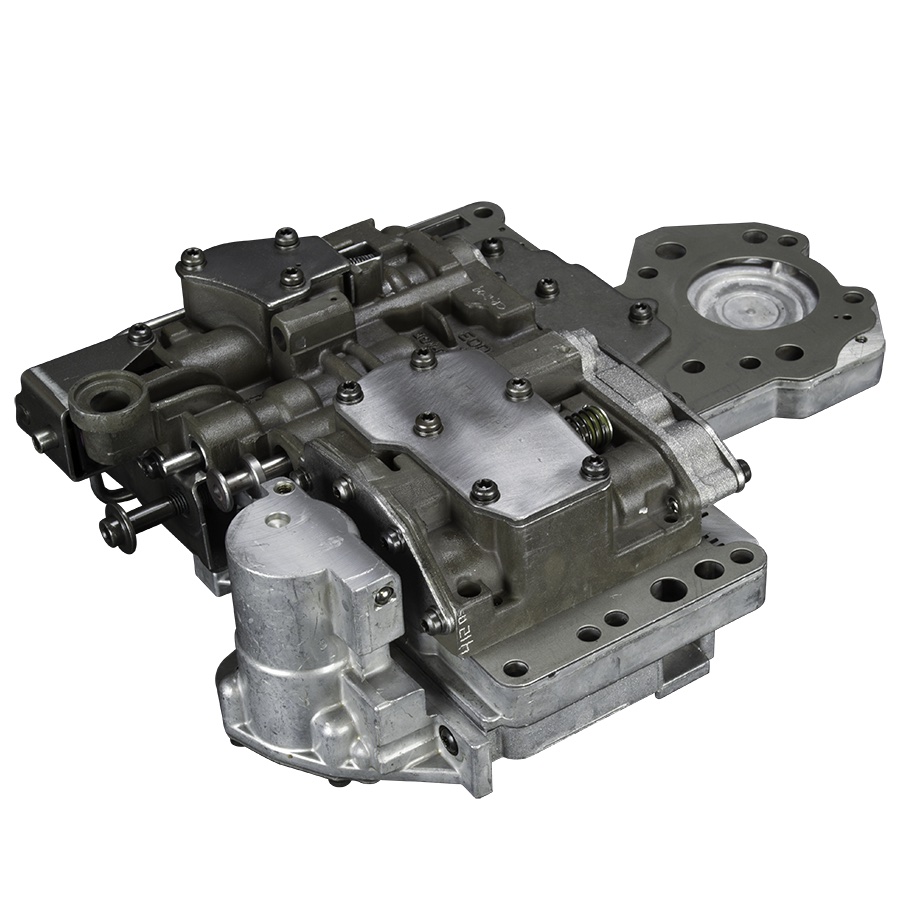

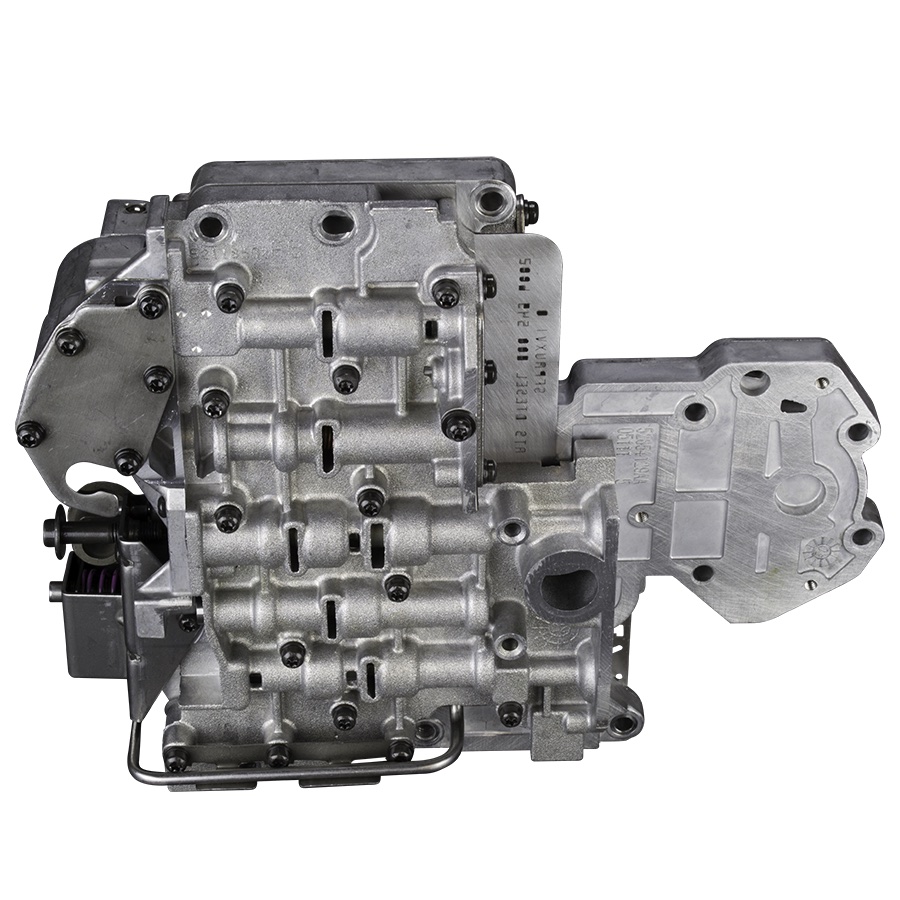

ATS Diesel 3039012237 Racing Edition Valve Body 47RE Late 1999-2002 Dodge 5.9L Cummins

The ATS Diesel 3039012237 Racing Edition Valve Body is engineered for late 1999-2002 Dodge Ram 2500/3500 trucks equipped with 5.9L Cummins diesel engines and 47RE automatic transmissions. This high-performance valve body addresses the common throttle valve sticking and wear issues that plague stock Dodge transmissions, delivering improved shift quality, increased reliability, and enhanced power handling capability.

Hydro-Balanced Valve and Sleeve Technology:

ATS has designed an innovative solution using a unique Hydro-balanced Valve and Sleeve assembly. By altering both the shape and material of the valve itself and placing a hardened sleeve in the valve body's bore, sticking issues are prevented. This technique is similar to a piston sleeve in an engine, where high-quality hardened materials greatly increase the lifespan of moving components and eliminate worn bore problems.

Key Features:

• Progressive line rise for optimized hydraulic pressure control
• Allows 1st-2nd gear lock-up capability
• Optimized to work with 3000RPM governor springs
• Exhaust brake-ready design
• More aggressive line pressure slope without harsh shifts
• Improved torque converter clutch engagement
• Increased transmission reliability and longevity

Applications: Late 1999-2002 Dodge Ram 2500/3500 with 5.9L 24-valve Cummins diesel and 47RE automatic transmission. Ideal for performance applications, racing, and high-horsepower builds.

Important Note: This valve body requires a $200 core charge. The core charge will be refunded upon return of your rebuildable core valve body.
