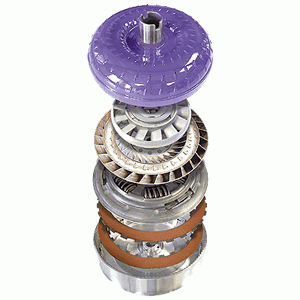

ATS Diesel 3029304248 TripleLok Torque Converter for 2001-2010 GM 6.6L Duramax Allison 1000

The ATS Diesel 3029304248 TripleLok Torque Converter is designed to handle daily driving and towing duties while delivering improved vehicle response and reliable performance for 2001-2010 GM 6.6L Duramax trucks with Allison 1000 transmissions. This is the only diesel torque converter on the market that has been awarded two patents from the United States Patent Office.

Patented Design Features:

• 30 precision CNC-cut square drive tabs in the billet cover provide superior strength and durability
• Patented radial flank drive tabs virtually eliminate wear common with round tab multi-disc torque converters
• Thick billet steel cover provides a rigid, non-flexing surface for optimal lock-up clutch coupling and prevents ballooning under high pressure
• Unique two-piece design with plasma welding ensures unmatched quality standards
• Triple clutch lock-up system transfers torque from engine to transmission during high power applications

Performance Improvements:

• Optimized stall speed with improved torque multiplication increases from factory 1.25:1 to 2.0:1
• CNC-cut steels, redesigned stators, and Torrington bearings with stall speeds matched to Duramax motors
• Proprietary ATS clutch material with unique bonding technology
• More power to the ground, lower transmission temperatures, and greater overall performance
• Increased torque multiplication results in improved vehicle response, towing, and driving ability

Backed by ATS's industry-leading 5 year / 500,000 mile warranty, even for competition use. Includes all necessary installation bolts—no extended or additional hardware required.

Note: A separate core charge of $400 applies to this torque converter.
