Hedman Hedders 69520 Engine Swap Headers Small Block Chevy

(1983-2000 Chevrolet S10 Base; 1990-2000 Chevrolet Blazer; 1983-1993 Chevrolet S10 Blazer Base; 1982-1984 Chevrolet K5 Blazer + 3 more models)

Manufacturer

Picture for manufacturer Hedman Hedders

Part Number

69520
14 reviews
Sale Price

$280.09

2 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

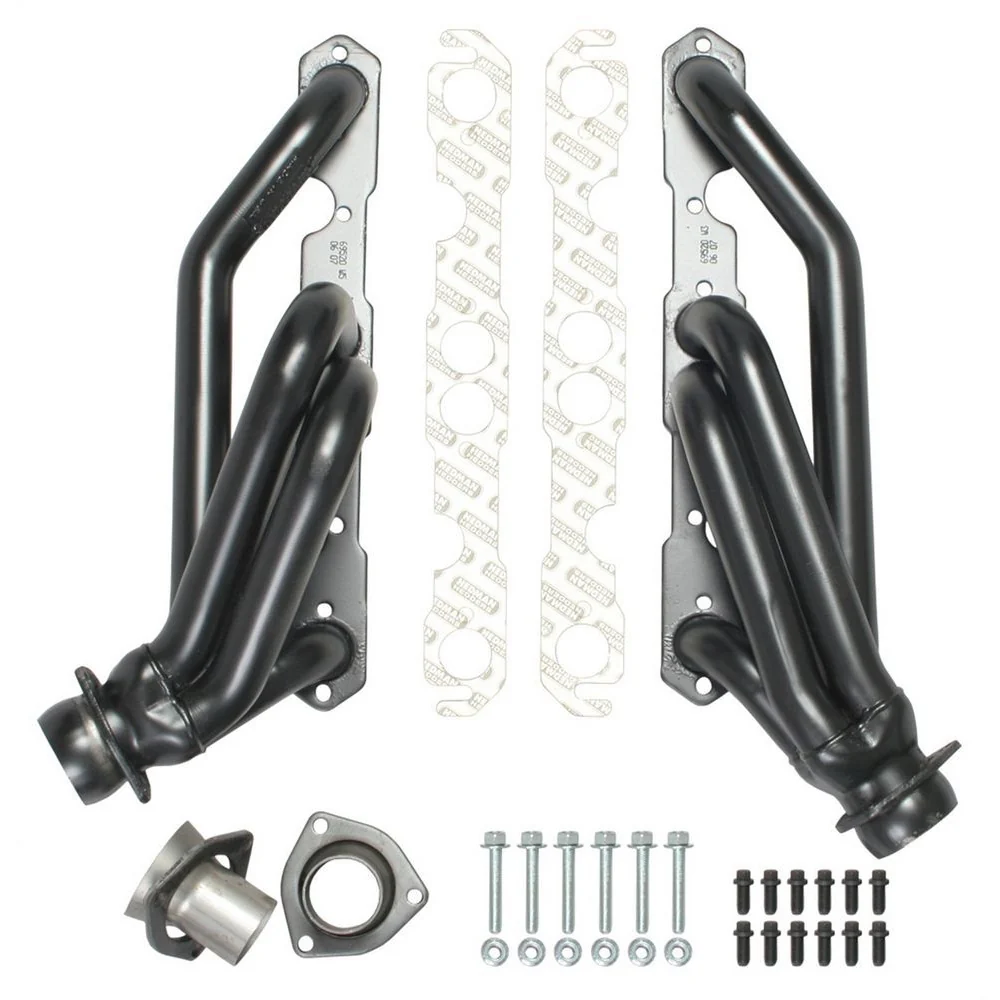

The Hedman Hedders 69520 is a mid-length engine swap exhaust header designed specifically for installing a Small Block Chevy 283-400 (Gen 1) V8 engine into 1982-2004 Chevy S10/Blazer and GMC S15/Jimmy 2WD trucks. These headers deliver significantly more low and mid-range power than factory cast manifolds while providing better ground clearance than long tube headers.

Key Features:

  • 1-1/2 inch primary tube diameter provides optimal exhaust flow for transplanted SB Chevy engines
  • 2-1/2 inch ball and socket style collector (gasketless design allows for exhaust system misalignment)
  • 18-gauge mild steel construction with CNC mandrel bent tubes
  • Hand-welded for consistent pair-to-pair quality
  • 5/16 inch (0.3125 in) thick flanges for leak-proof seal
  • Compatible with both manual and automatic floor shift transmissions
  • Works with air conditioning and power steering equipped vehicles

What's Included: Headers (sold as pair), gaskets, header flange bolts, ball and socket reducers (exhaust adapters), and collector bolts. No collector gasket needed. Ships uncoated with temporary black paint that will burn off during initial use. Recommended to be installed with Trans-Dapt motor mount kit #9906. Backed by limited lifetime warranty. Made in USA since 1954.

Note: For 2WD applications only. Not legal for street use on 1975 and later vehicles—off-road and racing use only.

Products specifications

Fits

1983-2000 Chevrolet S10 Base; 1990-2000 Chevrolet Blazer; 1983-1993 Chevrolet S10 Blazer Base; 1982-1984 Chevrolet K5 Blazer; 1991-2000 GMC Sonoma Base; 1982-1984, 1995-2000 GMC Jimmy; 1983-1994 GMC S15 Jimmy

Bolts/Studs Included

Yes

Collector Attachment

Ball and socket flange

Cylinder Head Port Shape

Oval

Flange Style

Standard

Flange Thickness (in)

1/4 in.

Header Finish

Painted

Header Material

Steel

Motor Mounts Included

No

Notes

Will not fit angle head plug.

Primary Tube Diameter (in)

1 1/2 in.

Primary Tube Gauge

18-gauge

Quantity

Sold as a pair.

Reducers Included

Yes

Transmission Mount Included

No

Tuned

No

Weld-Up

No

Y-Pipe Included

No

Drivetrain

2WD Only!

Finish

Uncoated

Header Fasteners Included

Yes

Collector Style

Ball and Socket Style (Gasketless)

Emissions Notes

NOT LEGAL FOR STREET USE ON '75-LATER MODEL YEARS! Legal for off-road use only.

Header Style

Mid-Length Tube

With EGR

No

Power Steering

Yes

FLANGE Thickness

0.3125 In.

Tube Material Thickness

16g

Head Type

Factory Heads

Tube Style

MID-LENGTH

Tube Length

Mid-Length Tubes

Automatic Transmission - Column

No

E.O. #

No

with A.I.R. System

No

Crossover Pipe Included

NO

Catalytic Converter(s) Included

No

Manual Transmission - Column

No

Prop 65

WARNING: Cancer. For more info visit www.P65Warnings.ca.gov

Automatic Transmission - Floor

Yes

Manual Transmission - Floor

Yes

Air Conditioning

Yes

Material

Mild Steel

Mounting Hardware Included

Yes

Gasket Or Seal Included

Yes

Installation Hardware Included

Yes

Port Shape

Round

Collector Size

2-1/2 in.

Tube Diameter

1-1/2 in.

Tube Size

1-1/2 in.

Reducer Outlet Size

2-1/2 in.

Collector Bolts Included

Yes

Collector Diameter

2-1/2 in.

Contents

headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware

Cylinder Head

Stock Profile Heads

Engine

Chevy SB 283-400 (Gen 1) 1958-86

Exhaust System Dia

2-1/2 in.

Finish Type

UNCOATED Mild Steel! Shipped with Temporary Paint.

Header Port Shape

Round Port

Package Contents

Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware

Title

HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; STOCK HEADS; SHORTY DESIGN

Tube Design

Standard

Variations

69526, 69528

Replacement Gasket

27500

Key Feature

2WD Only.

Replacement Head Flange Gasket

27500

Header Construction

MILD STEEL- Standard-Duty

Use With

Trans Dapt. Motor Mount Kit #9906
