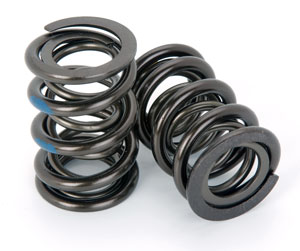

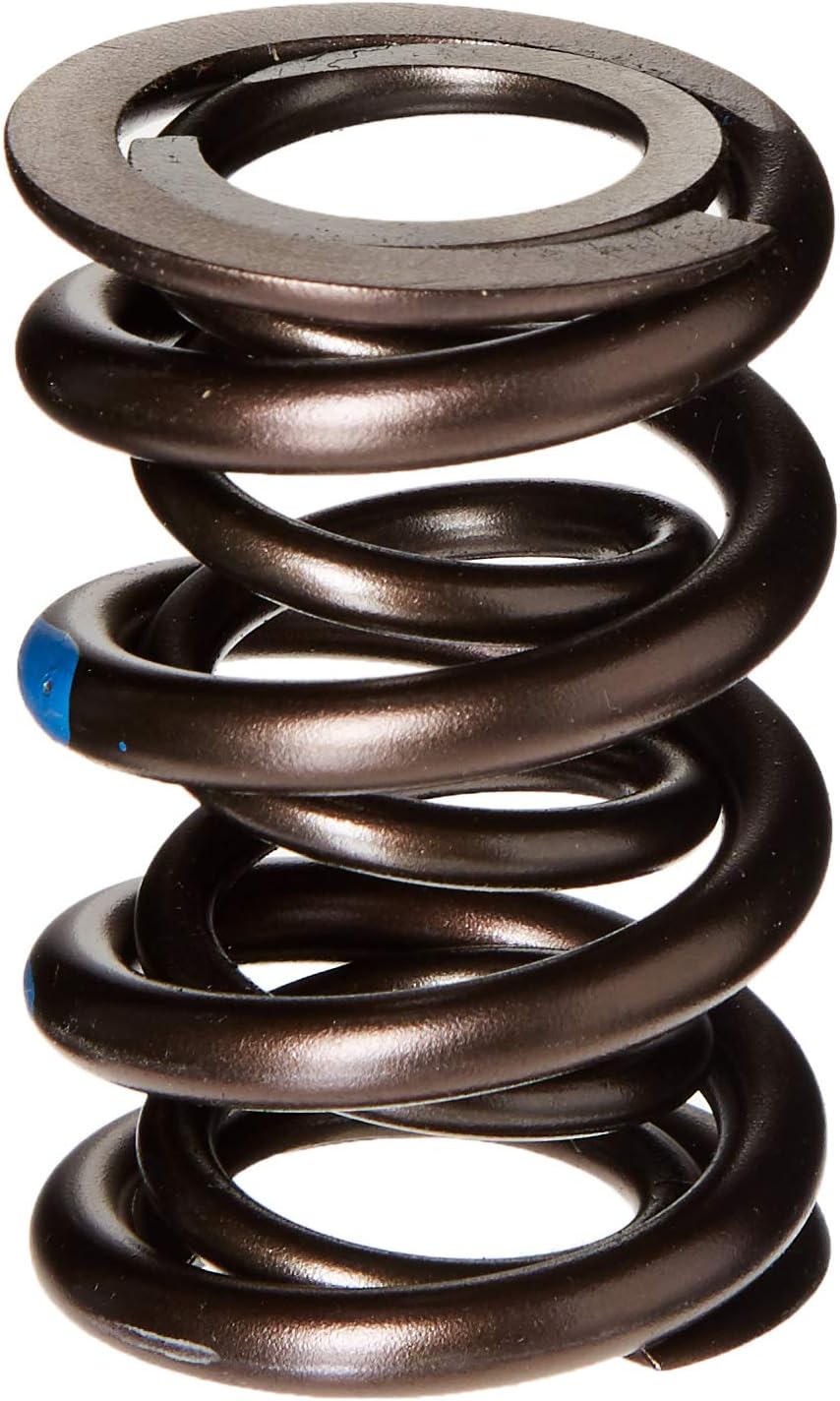

Manley 221424-16 NexTek Dual Valve Springs 1.640in OD 647 lbs/in Set of 16

Manufacturer

Part Number

221424-16
Black Friday Price

$372.89

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 221424-16 NexTek Dual Valve Springs represent the pinnacle of racing valve spring technology, engineered specifically for high-performance drag racing and sportsman applications. Introduced as part of Manley's Next Technology line, these springs deliver the precision and reliability demanded by top-level engine builders and racers.

Advanced Construction and Materials:

  • Manufactured from super-clean, high-tensile chrome silicon steel for maximum durability
  • Shot-peened to military specifications ensuring exceptional fatigue life
  • Proprietary multi-step heat-treating process minimizes load loss over time
  • Computer-aided modeling eliminates valve bounce and valve gear separation
  • Extended tip thickness design prevents overload breakage
  • Tightly controlled open-end flatness reduces valve stem side loading

Technical Specifications:

  • Spring Configuration: Dual spring without damper
  • Outside Diameter: 1.640 inches
  • Inside Diameter: 0.860 inches
  • Spring Rate: 647 lbs/in
  • Seat Pressure: 250 lbs @ 2.000 inches
  • Open Pressure: 800 lbs @ 1.150 inches
  • Maximum Valve Lift: 0.880 inches
  • Coil Bind Height: 1.070 inches
  • Individual Spring Weight: 149 grams

Performance Benefits:

The NexTek design features a smaller diameter and lightweight construction that allows engines to rev higher and faster. These springs are ideally suited for Super Gas, Super Comp, Big Block Bracket racing, and other sportsman drag racing applications where precise valve control at high RPM is critical.

Sold as a complete set of 16 springs. Suggested titanium retainers: Manley 3503 series (sold separately).

Products specifications

Coated

No

Coil Bind Height (in)

1.070 in.

Damper Spring Included

No

Inside Diameter of Inner Spring (in)

0.860 in.

Inside Diameter of Outer Spring (in)

1.185 in.

Number of Springs Per Valve

Dual

Outside Diameter of Outer Spring (in)

1.640 in.

Quantity

Sold as a set of 16.

Spring Rate (lbs/in)

647 lbs./in.

Valve Spring Style

Standard

Engine Type

ICE

Product Type

Engine Valve Spring

Valve Spring Series

NexTek? Series

Valve Spring Material

Chrome Silicon

Title

Manley Valve Spring, SPRING-1.640 DOUBLE

Valve Spring Type

Double

Average Gram Weight

149

Installed Pressure and Height

250 @ 2.000

Open Pressure and Height

800 @ 1.150

Valve Lift - Maximum

0.880

Valve Spring Coil Bind Height

1.070

Valve Spring Inner Diameter

0.860

Valve Spring Outer Diameter

1.640

Valve Spring Quantity

16

Valve Spring Rate

647
