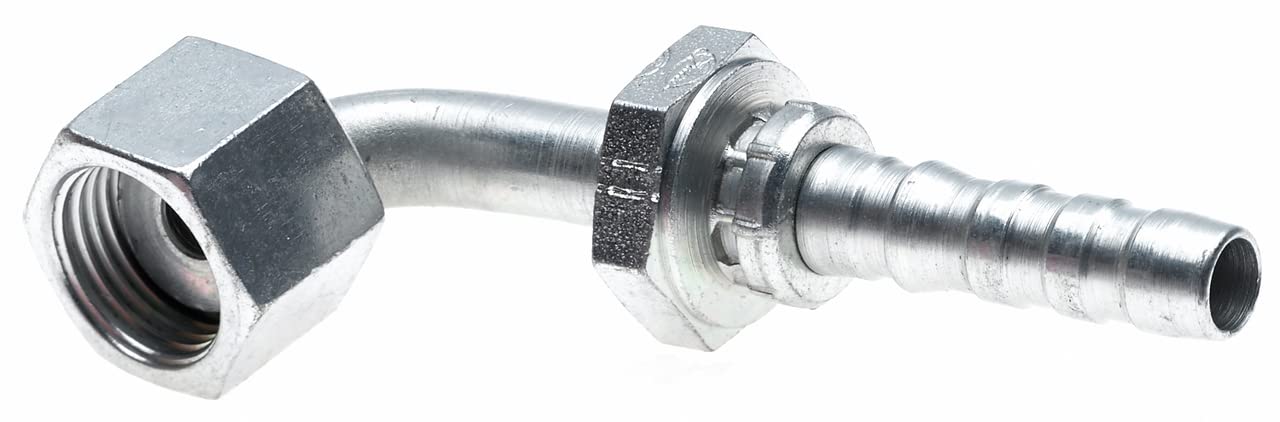

Gates G20241-0808 GlobalSpiral Hydraulic Hose Coupling 1/2" Female ORFS 90 Degree

The Gates GlobalSpiral coupling provides superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. This G20241-0808 coupling features a female flat-face O-ring swivel configuration with a 90-degree bent tube design for 1/2" ID hose.

Key Features:

• Innovative two-piece, no-skive design allows for fast, tailor-made assemblies
• Eliminates skiving process to drastically reduce assembly time, labor, odor, fabrication errors and contamination
• Unique bite-the-wire crimp design for improved coupling retention and blow-off prevention
• Handles working pressures up to 6,000 psi
• Tested to industry-leading one million impulse cycles at +250°F without causing stress cracks
• TuffCoat plating provides more than five times better corrosion resistance than SAE ASTMB117 specification

Machined from unleaded steel bar stock, this GlobalSpiral coupling is compatible with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. The 90-degree bent tube configuration provides versatile routing options in tight spaces while maintaining full pressure capability.
