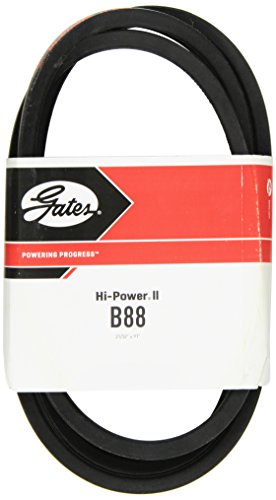

Gates B88 Hi-Power II V-Belt B Section 21/32 Inch x 91 Inch

The Gates B88 Hi-Power II V-Belt is a composite power transmission belt designed for single or multiple V-belt drive applications in agricultural and industrial settings. Made of EPDM (ethylene propylene diene monomer) rubber, this belt resists oil, heat, ozone, sunlight, weathering, and aging.

Key Specifications:

• B Section belt with 91-inch outside circumference
• Top belt width: 0.66 inch (21/32 inch)
• Nominal thickness: 0.41 inch (13/32 inch)
• B Section designation indicates classic V-belt style; "88" denotes the inside circumference
• Temperature range: -22°F to +140°F (-30°C to +60°C)

Advanced Features:

• EPDM belt material engineered to combat self-igniting, preventing fire from heat buildup even with severe slippage
• Flex-Bonded Cords strongly bonded to the belt body for equal load distribution and absorption of bending stress without cord deterioration
• Flex-Weave cover provides oil and heat resistance with built-in static conductivity to protect the belt core
• Gates Curves provide proper cord support and full sheave-groove contact for uniform loading, uniform wear, and increased belt life
• Part of the V80 Matching System, ensuring every B88 belt can be used in matched sets regardless of batch or lot
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards and IP-3-3 static conductivity requirements

Gates B88 Hi-Power II belts are suitable for all industrial applications, including v-flat drives. Recommended for use with Multi-Duty Sheaves.
