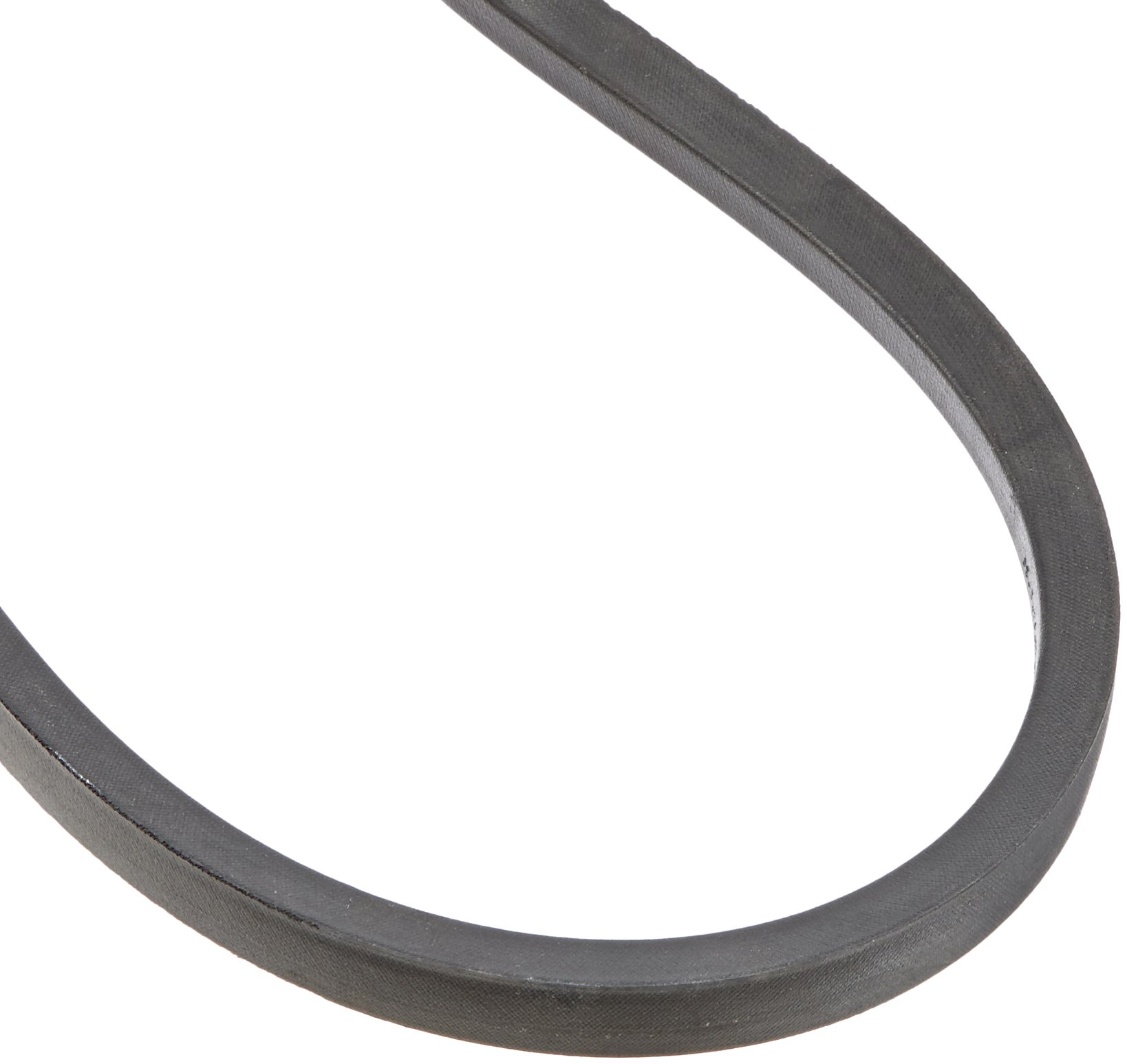

Gates B143 Hi-Power II V-Belt B Section 146 Inch

The Gates B143 Hi-Power II V-Belt is a heavy-duty industrial and agricultural power transmission belt designed for reliable performance in demanding applications. This B-section classical V-belt features a 146-inch outside circumference with a 21/32-inch top width and 13/32-inch height, making it suitable for a wide range of equipment drives.

Advanced Construction Features:

• Flex-Weave Cover: Patented single-layer fabric construction provides extended protection against oil, dirt, and heat while making the belt suitable for clutching applications
• Flex-Bonded Cords: Proprietary polyester cord construction strongly bonds to the belt body for uniform load distribution and superior resistance to bending stress, fatigue, and shock loads without cord deterioration
• Gates Curves Design: Optimized belt cross-section with concave sidewalls and rounded corners provides proper cord support and full contact with pulley grooves for uniform loading, minimal wear, and extended service life
• EPDM Rubber Compound: Resists weathering, oils, water, solvents, ozone, and sunlight while preventing self-ignition even under severe slippage conditions

V80 Matching System Certified:

Part of the Gates V80 matching system with precision manufacturing tolerances, ensuring every B143 belt can be used individually or in matched sets for multi-belt drives without requiring lot-specific match codes. This guarantees even load distribution across all belts in high-horsepower applications.

Performance Specifications:

• Temperature range: -30°C to +60°C (-22°F to +140°F)
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards
• Meets IP-3-3 static conductivity requirements (ISO 1813)
• ATEX compliant for use in explosive atmospheres (Directive 2014/34/EU)
• REACH and RoHS 2 compliant

Ideal for industrial machinery, agricultural equipment, and any application requiring dependable power transmission in harsh operating environments.
