Ksport CVW300-GR Rally Spec GR Gravel Rally Coilover Kit Adjustable Damping - 36-Way

(1974-1985 Volkswagen Golf; 1975-1984 Volkswagen Rabbit; 1980-1984 Volkswagen Rabbit Convertible)

Manufacturer

Part Number

CVW300-GR
Sale Price

$1,912.50

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

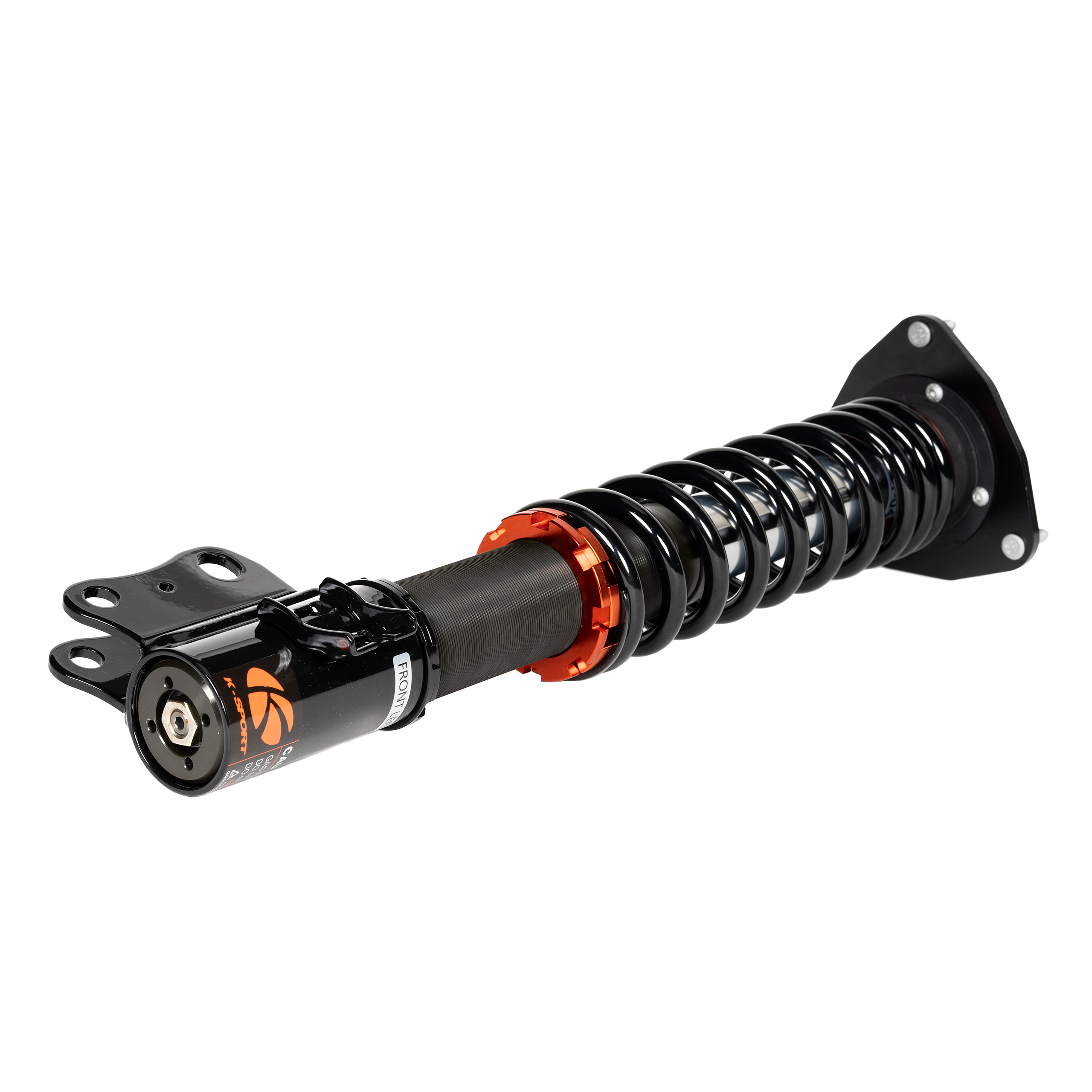

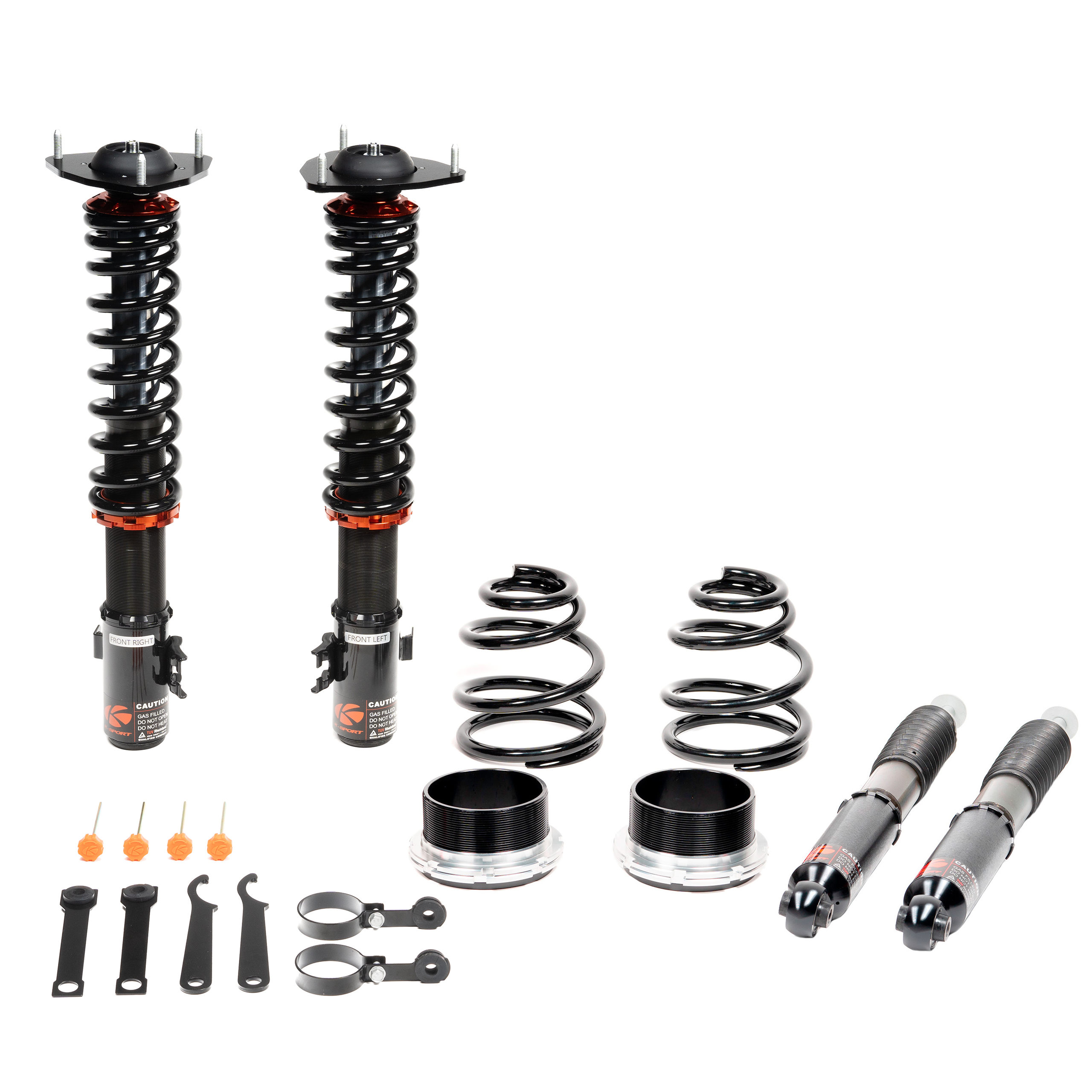

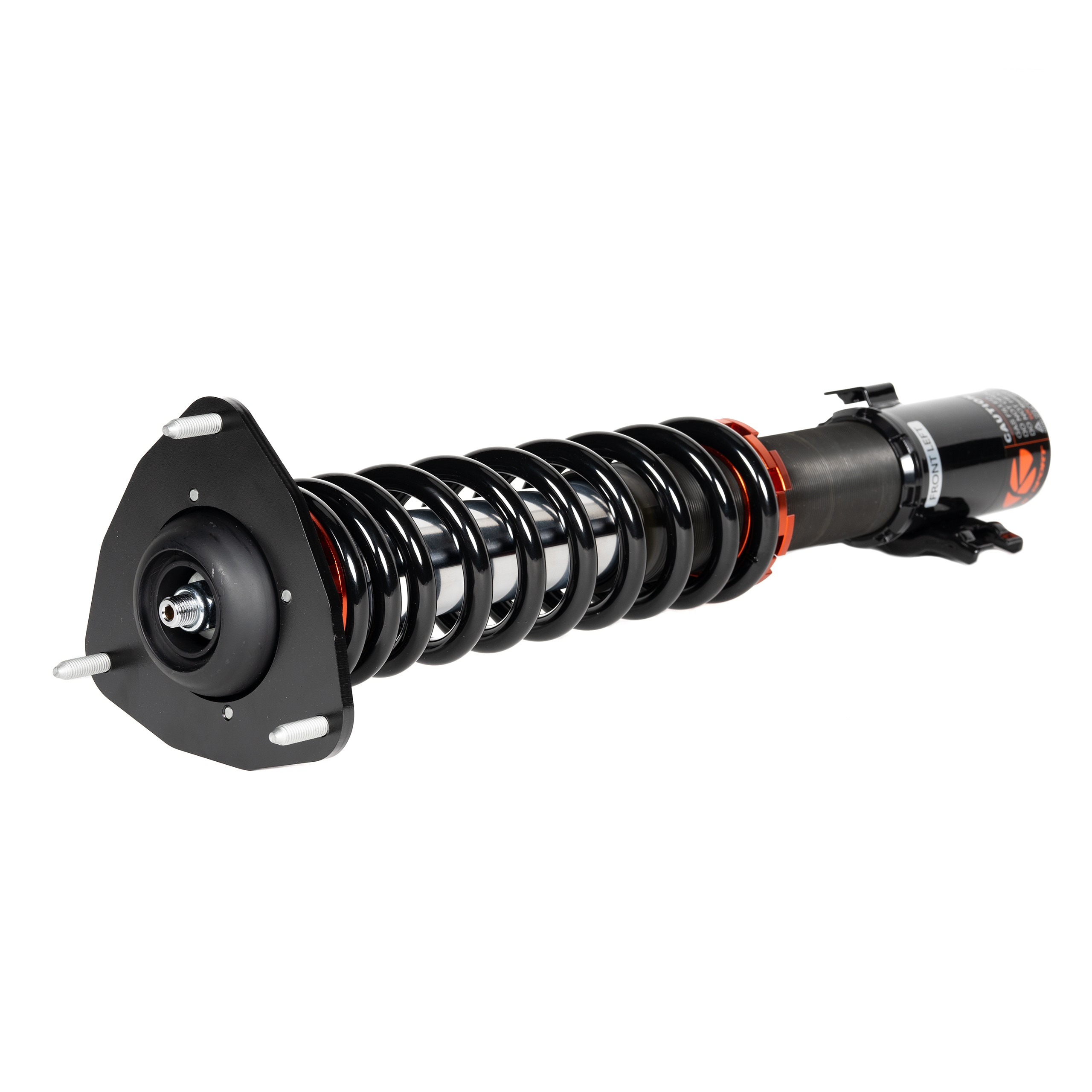

The Ksport CVW300-GR Rally Spec GR coilover system is engineered from the ground up for the demands of gravel rally competition. Built on the foundation of Ksport's proven Kontrol Pro platform, this kit features extended cylinder length and piston stroke combined with longer springs — ranging from 250mm to 270mm — purpose-built to absorb the punishment of rough, uneven rally stages. Ride height is adjustable ±30mm from OE ride height via an adjustable lower mount design that preserves full suspension travel, unlike conventional coilover height adjustment methods that sacrifice stroke.

36-Way Adjustable Damping:

  • 36 levels of damping adjustment for precise tuning of handling and ride quality
  • Damping adjustment alters compression and rebound simultaneously for fast, user-friendly setup changes
  • Dial from full-soft for improved comfort to full-firm for maximum competition performance

Suspension Type Configurations:

  • MacPherson strut applications: inverted shock design with heavy-duty steel upper and lower mounts
  • Wishbone and multi-link applications: standard non-inverted shocks with aluminum top mounts
  • Note: Camber adjustment via top mount is not available on Gravel Rally kits

Construction and Materials:

  • 6061-T6 billet aluminum mounts, collars, and spring perches — lightweight, strong, and corrosion-resistant
  • Steel shock bodies electroplated with zinc for rust protection against the elements
  • Includes anti-rust paste packet for additional protection on key coilover areas
  • Heavy-duty top plates and lower mounts for added strength and rally-grade durability
  • Valving of each set is matched to the installed spring rate for superior ride quality and reliability

Monotube High-Pressure Design:

  • Oil and gas are fully separated within the cylinder — true monotube construction
  • Dissipates heat faster and more evenly than twin-tube designs
  • Allows for finer damping resolution across all 36 adjustment levels
  • Greatly reduces the risk of aeration and cavitation for more consistent damping performance

Additional Features:

  • Dust boots standard on all corners with integrated bump stop for added longevity
  • Extended length springs (250mm–270mm) designed specifically for rally applications
  • Spring rates: Front 5 kg/mm (280 lbs/in), Rear 4.5 kg/mm (252 lbs/in)
  • Built to order — please allow 2–3 weeks for production and delivery

Important: Due to the extreme nature of gravel rally competition, no warranty is offered on this kit.

Products specifications

Fits

1974-1985 Volkswagen Golf; 1975-1984 Volkswagen Rabbit; 1980-1984 Volkswagen Rabbit Convertible

Spring Rate (F)

5/280kg/lbs

Spring Rate (R)

4.5/252kg/lbs

Upper Mount (F)

Pillowball

Upper Mount (R)

OEM

Top Mount Type - Rear

Reuses OEM Top Mount

Dust Shield

No

Gas Charged

Yes

Ksport Product Category

Coilover Kits

Lower Mount Type

Adjustable

Upper Mount Type

Steel/Hard Rubber Mount no camber adjustment

Subject to CARB? Yes/No

No

Ksport Product Sub-Category

Gravel Rally Spec GR Coilover Kit

Top Mount Type - Front

Steel/Hard Rubber Mount no camber adjustment

Adjustable Height

yes

Spring Rate Front kg/mm

5

Spring Rate Rear kg/mm

4.5

Prop 65
