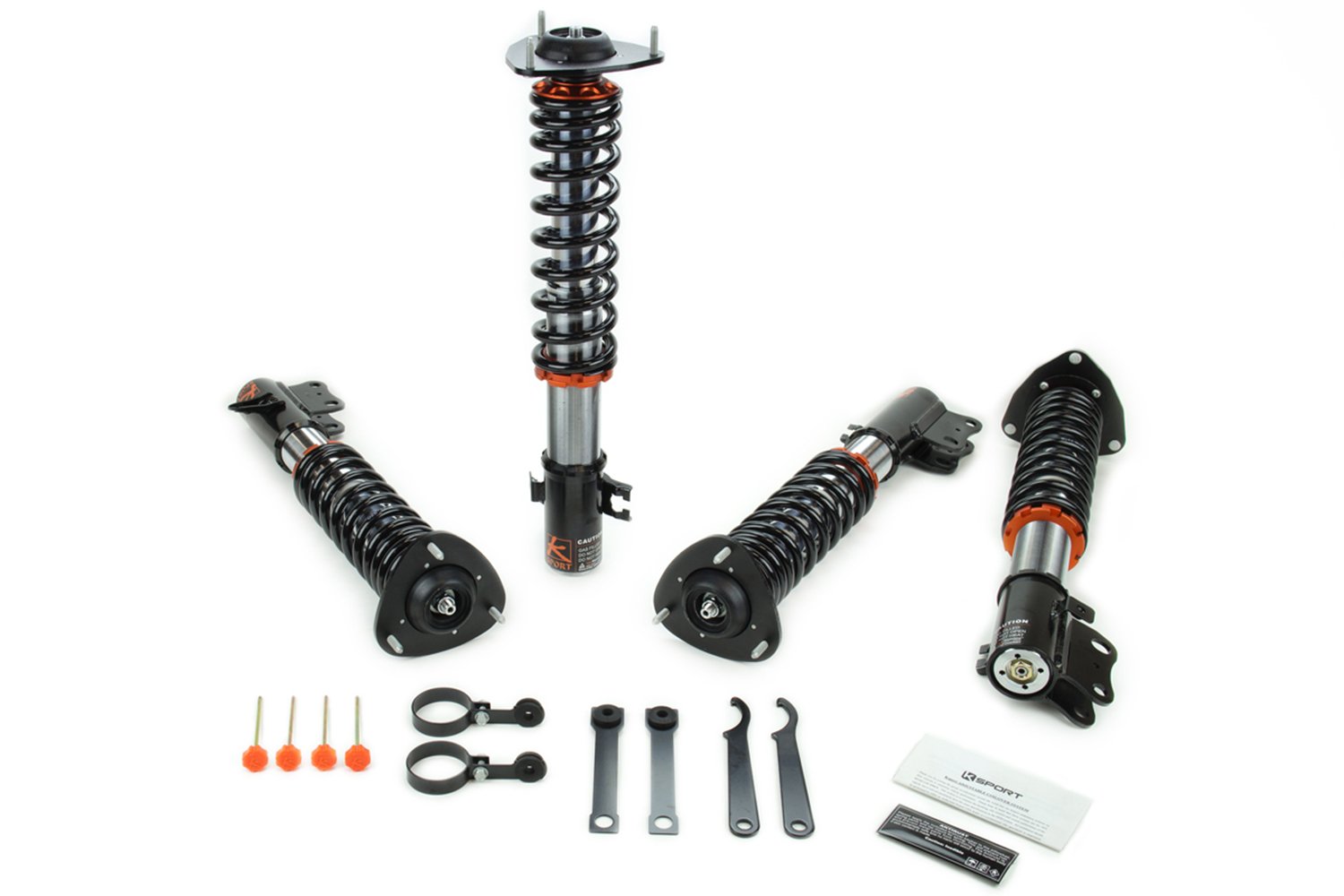

Ksport CHD030-GR Gravel Rally Spec GR Coilover Kit 36-Way Adjustable Monotube

The Ksport CHD030-GR Rally Spec GR Coilover System is purpose-built for the rigors of gravel rally competition. Featuring an extended cylinder length and lengthened piston stroke, this kit is engineered to absorb the punishment of uneven terrain, dirt stages, and rough forest roads that would overwhelm a standard street coilover.

Key Features:

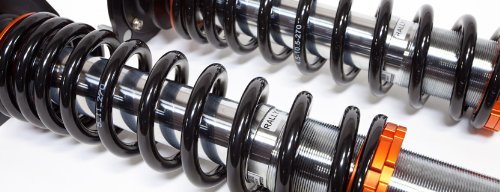

• Extended Stroke & Longer Springs: Rally-specific springs range from 250mm to 270mm in length, paired with an extended shock stroke to maintain wheel contact and control over severely uneven surfaces.
• 36-Way Adjustable Damping: Featuring 36 levels of damping adjustment, compression and rebound are tuned simultaneously for fast, intuitive setup changes on the stage.

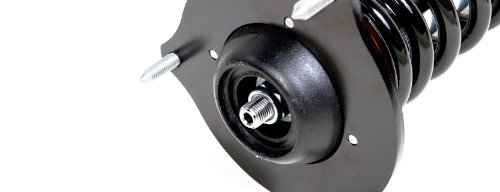

• Suspension Type Configuration: McPherson-type suspension applications receive inverted shocks with steel lower and top mounts for maximum rigidity. Wishbone and multi-link suspension applications use standard non-inverted shocks with aluminum top mounts. Note: camber top mounts are not available for Gravel Rally kits.

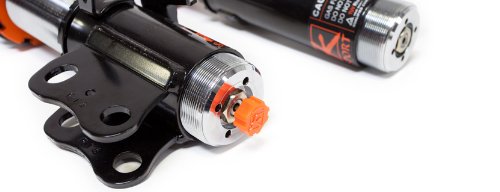

• Adjustable Lower Mount: Most applications feature an adjustable lower mount allowing ride height changes of +/- 30mm from OE without sacrificing suspension travel — a critical advantage over many competing designs.

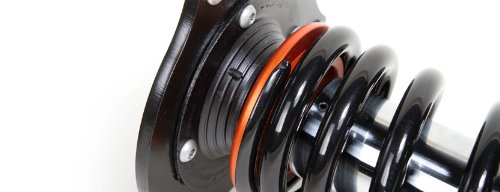

• 6061 Billet Aluminum Construction: Mounts, collars, and spring perches are CNC-machined from 6061-T6 billet aluminum for a lightweight, durable, and corrosion-resistant build.
• Zinc-Electroplated Steel Shock Bodies: Steel shock bodies are electroplated with zinc to resist rust and protect against the elements. Each kit also includes an anti-rust paste packet for application to key coilover areas.
• Monotube High-Pressure Design: Oil and gas are separated within the cylinder for superior heat dissipation compared to twin-tube designs. Finer damping adjustments are possible, and aeration and cavitation issues are significantly reduced, resulting in more consistent performance across long rally stages.
• Valving Matched to Spring Rate: Each shock is valved specifically to match its installed spring rate, ensuring optimal ride quality and long-term reliability.

The Ksport Rally Spec GR kit is built to order — please allow approximately 2–3 weeks for production and delivery. Due to the extreme demands of gravel rally competition, no warranty is offered on this kit.
