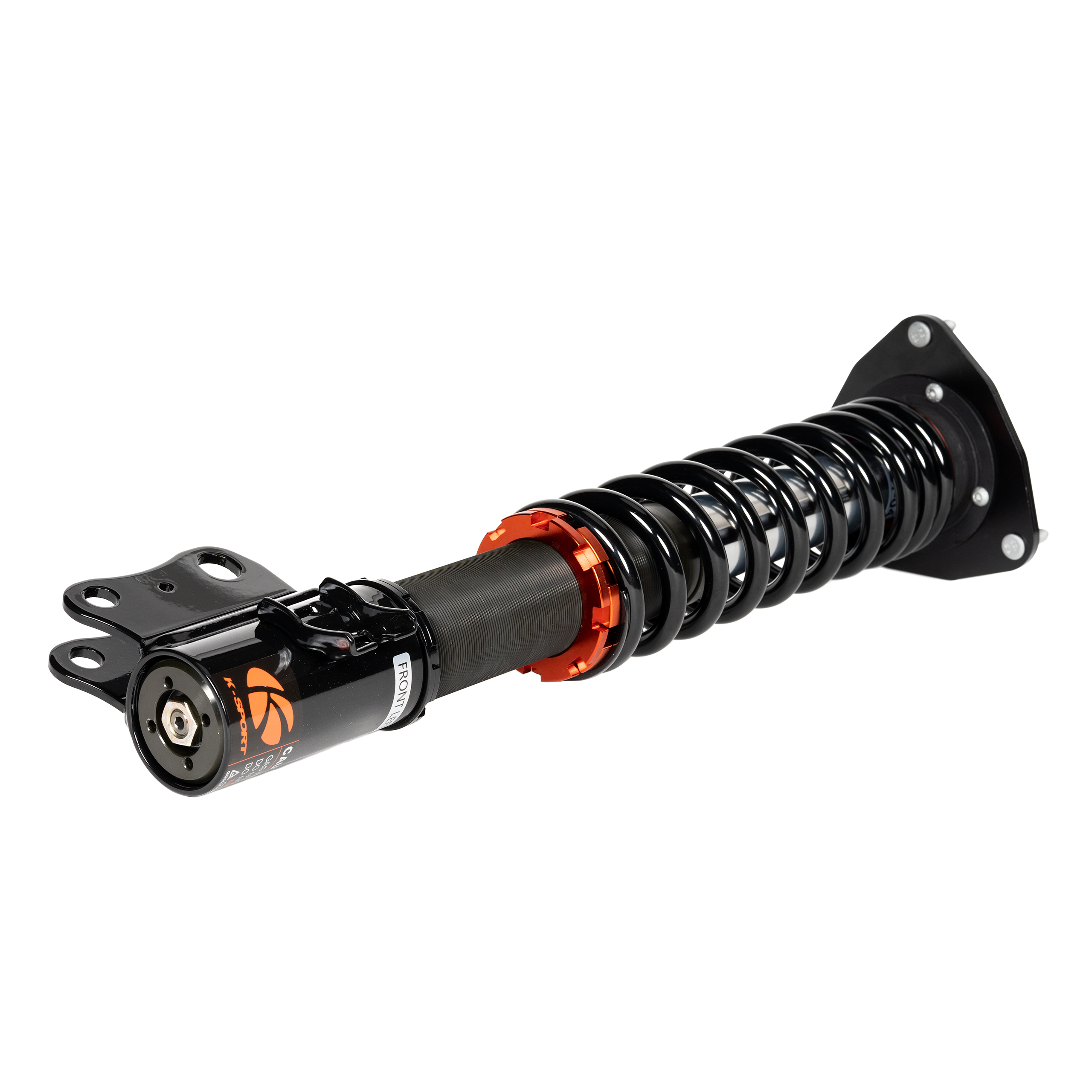

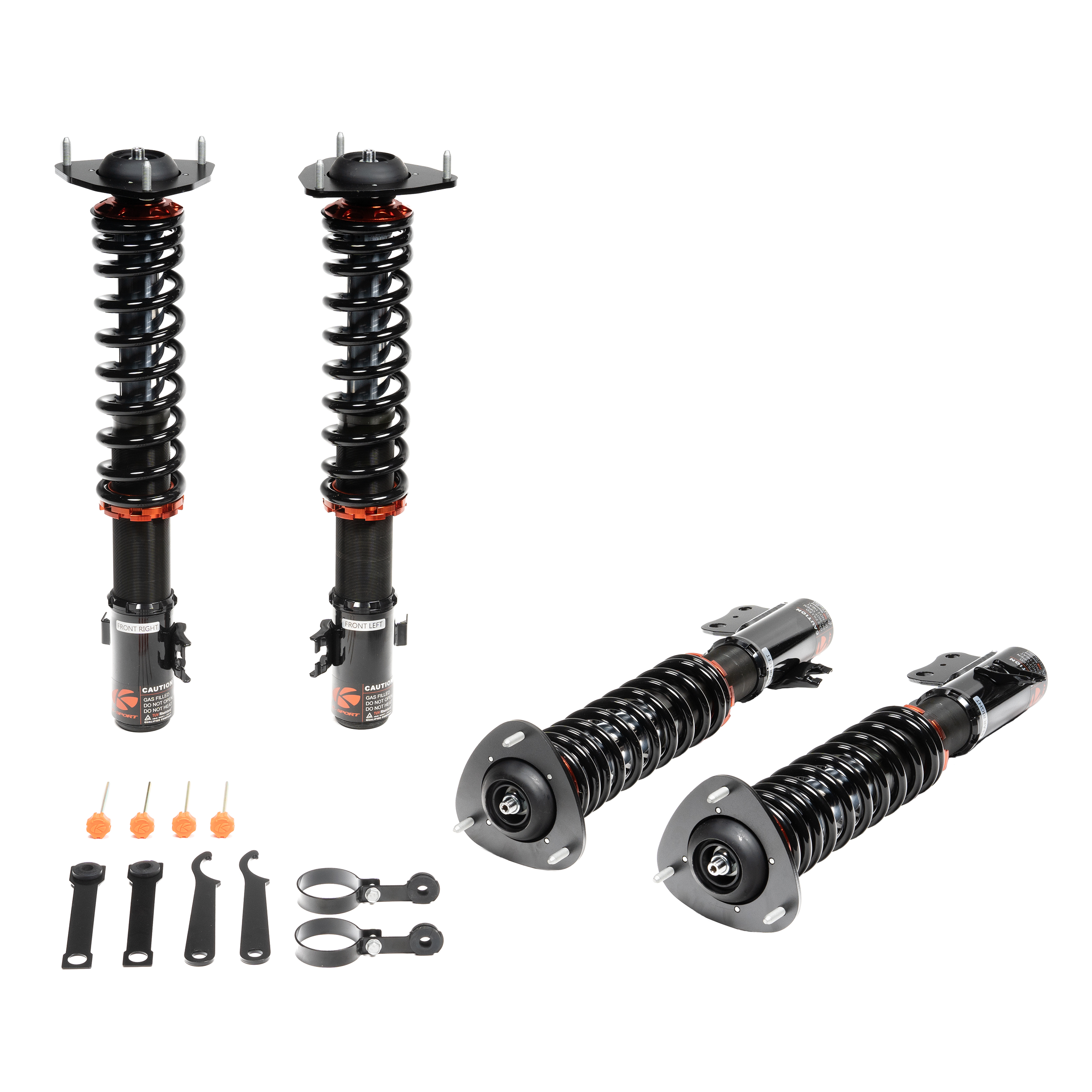

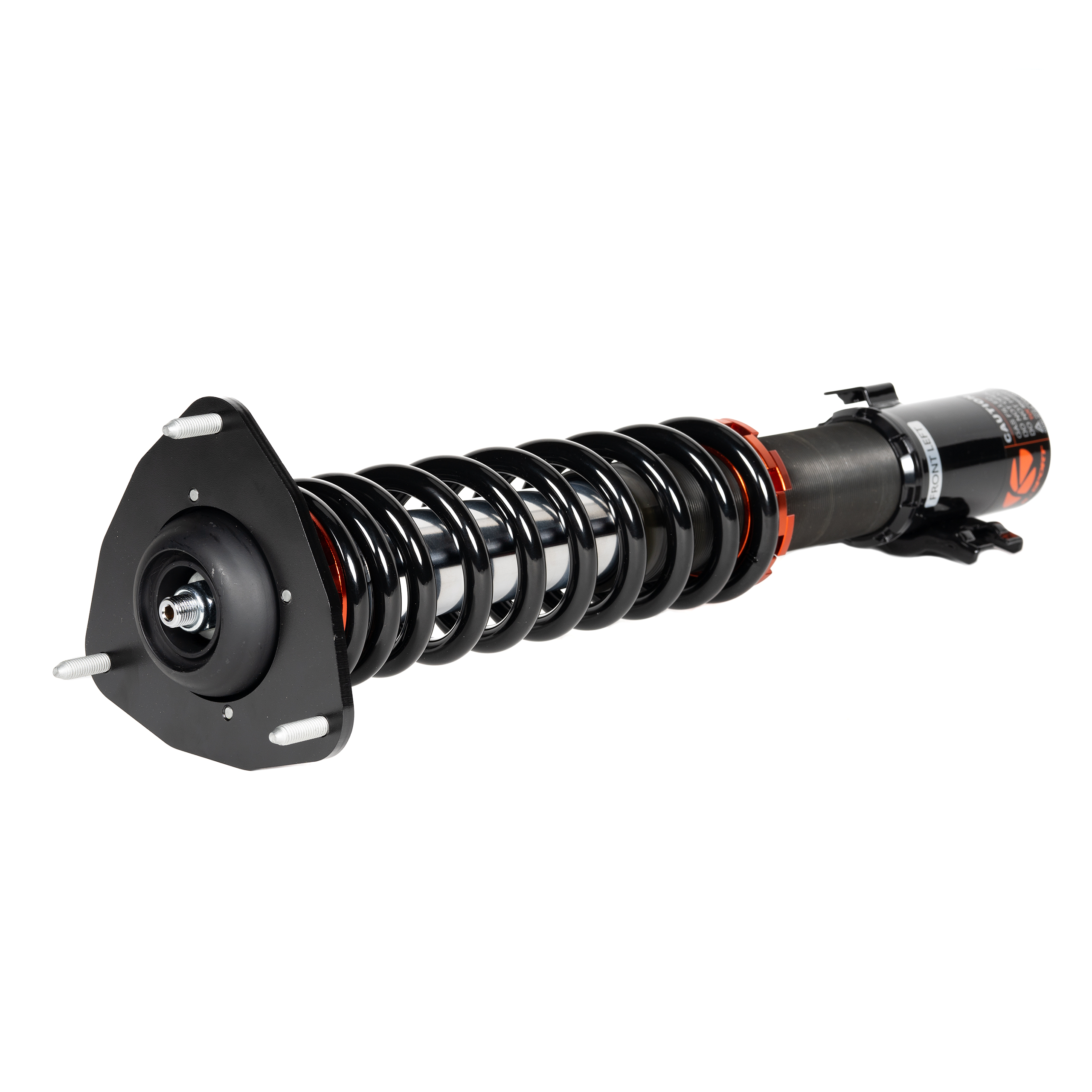

Ksport CHY010-GR Rally Spec GR Gravel Rally Coilover Kit Adjustable Monotube - 36-Way

The Ksport Rally Spec GR (CHY010-GR) is a purpose-built gravel rally coilover system engineered to withstand the demanding conditions of competitive gravel rally racing. Featuring an extended shock stroke, rally-spec spring lengths (250mm–270mm), and heavy-duty mounting hardware, this kit is built to absorb the punishment of rough, unpredictable terrain while maintaining precise handling and ride height control.

Suspension Configuration by Vehicle Type:

• McPherson strut applications include inverted shock bodies with steel lower and top mounts for maximum rigidity
• Wishbone and multi-link suspension applications use standard non-inverted shocks with aluminum top mounts
• Note: Camber-adjustable top mounts are not available on Gravel Rally kits

Key Features:

• 36-way adjustable damping — simultaneous compression and rebound adjustment via a single knob for fast, easy tuning between stages
• Extended cylinder length and piston stroke — dramatically improves compliance and handling over rough, uneven road surfaces
• Adjustable lower mount design — ride height can be adjusted ±30mm from OE without sacrificing suspension travel, unlike many competing coilover designs
• 6061-T6 billet aluminum construction — spring perches, locking collars, and top mounts are CNC-machined from 6061 aluminum for a lightweight, rust-resistant, and durable build
• Zinc-electroplated steel shock bodies — corrosion-resistant finish protects against moisture and the elements in all rally conditions
• Matched spring and valving — each set is valved specifically for the installed spring rates, ensuring consistent and reliable damper performance
• Monotube high-pressure design — oil and gas are separated within the cylinder, improving heat dissipation, reducing aeration and cavitation, and enabling finer damping adjustability compared to twin-tube designs

Important Notes:

• These kits are built to order — please allow 2–3 weeks for production and delivery
• Due to the extreme nature of gravel rally competition, no warranty is offered on Gravel Rally kits

The Ksport CHY010-GR Rally Spec GR coilover kit delivers a proven monotube platform with the extended travel and rugged componentry that competitive rally drivers demand on gravel stages.
