JE Pistons GM1020-051 Pro Seal MLS Head Gasket GM LSX 454 4.200" Bore 0.051" Right Side

Manufacturer

Part Number

GM1020-051
Black Friday Price

$151.86

Estimated ship date Friday, November 20

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

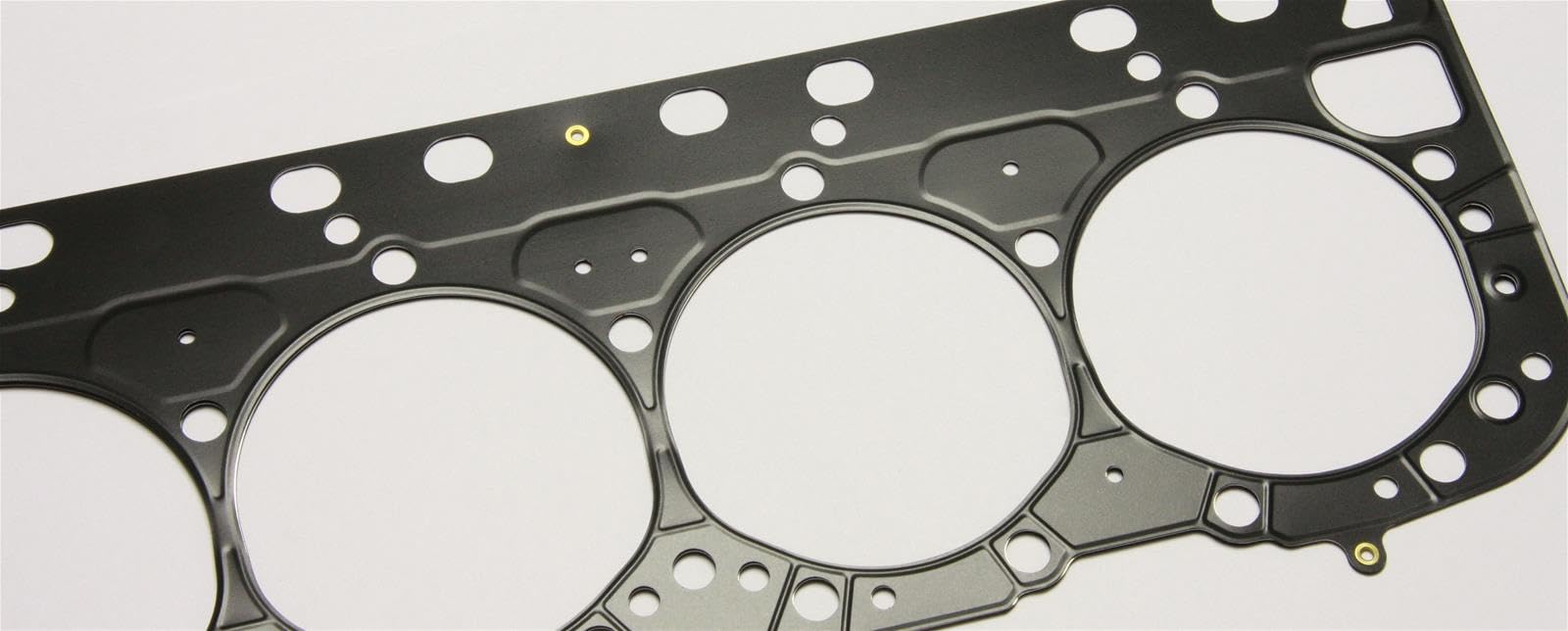

The JE Pistons GM1020-051 Pro Seal Multi-Layer Steel (MLS) Head Gasket is engineered for the GM LSX 454 platform, featuring a 4.200" bore and 0.051" compressed thickness for the right side cylinder head. Born from JE's decades of experience supplying sealing solutions to NASCAR, NHRA, and World of Outlaws race teams, this gasket brings professional-grade sealing technology to high-performance street and track builds.

Key Features:

  • AISI 304 Stainless Steel Construction — Each gasket is manufactured from premium 304 stainless steel, processed using state-of-the-art in-line laser cutting and multi-stage embossing for consistent, high-precision quality. Every individual layer is separately cut and formed to optimize sealing performance.
  • Proprietary Coating Technology — JE's exclusive 100% metal encapsulation coating process eliminates the need for additional deck surfacing prep. The coating provides a superior, chemically resistant seal between head and block mating surfaces that outperforms conventional gasket coatings.
  • Optimized Embossing Formation — Advanced multi-stage embossing optimizes the radius geometry in critical bend areas, reducing stress concentration points and improving conformability. The result is superior wet-out (contact area) that delivers an exceptional combustion seal under extreme pressure and heat cycles.
  • Stress Stabilization & Relaxation Tempering — A proprietary post-forming heat treatment process relieves forming-induced stress in the steel layers, reducing hardness and brittleness while increasing flexibility and long-term deformation retention. This extends the service life and reliability of the gasket in demanding high-boost or high-compression applications.
  • CAD-Engineered Fire Ring Placement — Fire ring positioning is precisely calculated for the specific bore size using computer-aided design, ensuring optimal clamping force distribution and combustion sealing.

Specifications:

  • Part Number: GM1020-051
  • Application: GM LSX 454
  • Gasket Bore: 4.200"
  • Compressed Thickness: 0.051"
  • Position: Right Side
  • Construction: Multi-Layer Steel (MLS)
  • Material: AISI 304 Stainless Steel
  • Sold Individually

The JE Pro Seal GM1020-051 is the right-side counterpart to the GM1019-051 left-side gasket — order both for a complete head gasket set on the LSX 454. Ideal for high-performance rebuilds, forced induction engines, and race applications where a reliable combustion seal is critical.

Products specifications

Make

Chevrolet

Prop 65

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Engine

CHEVROLET LS GEN III/IV

Industry

Automotive

Out of Stock Message

Call for Availability

Product Market

Domestic

Engine Type

ICE

Material

Multi Layer Stainless Steel

Thickness

1.30

Title

Cylinder Head Gasket, Chevrolet, LS Gen III/IV

Category Hierarchy

Cylinder Head Gasket

Gasket Series

MLS

Cylinder Bore Diameter

106.70

Bore Diameter Range Min Max

104.78 - 106.20
