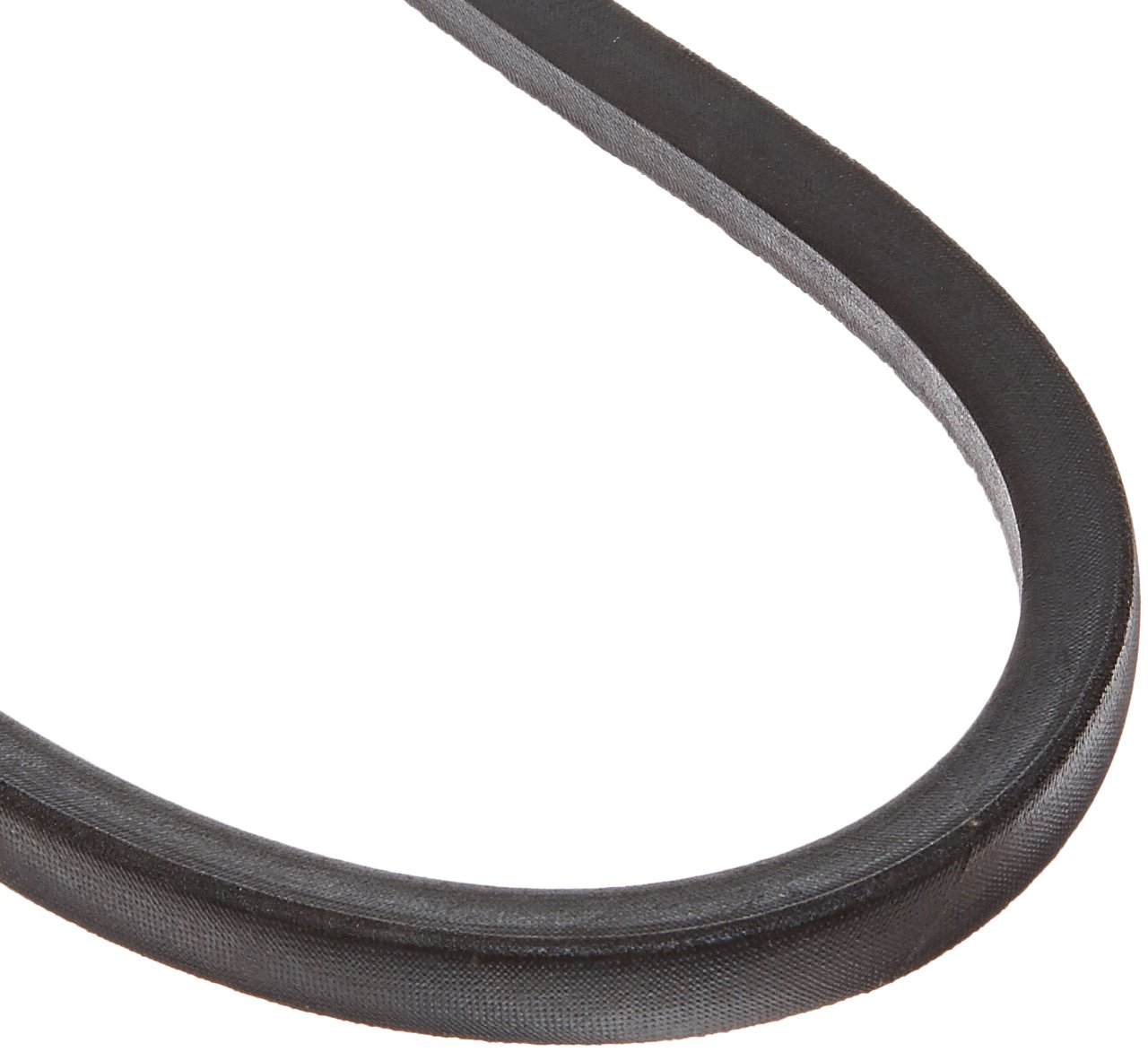

Gates B29 Hi-Power II V-Belt B Section 32 Inch

The Gates B29 Hi-Power II V-Belt is a classical B-section industrial power transmission belt designed for reliability in agricultural and industrial applications. This wrapped construction belt features a 32-inch outside circumference (29-inch inside length), 21/32-inch top width, and 13/32-inch height, making it suitable for a wide range of power transmission needs.

Advanced Construction Features:

• EPDM rubber compound resists oil, heat, ozone, sunlight, weathering, and aging
• Self-ignition resistant material prevents fire from heat buildup even with severe slippage
• Vulcanized Flex-Bonded tensile cords provide superior resistance to flexing forces, fatigue, and shock loads
• Arched top design prevents dishing and distortion of the tensile section
• Concave sidewalls and rounded corners ensure uniform pulley contact and reduced wear
• Flex-Weave cover protects the belt core from oil, dirt, and harsh environments
• Machined belt edges provide even sheave groove contact for smoother operation

Performance Specifications:

• Part of Gates V80 matching system for precise length tolerances in multi-belt drives
• Temperature range: -30°C to +60°C (-22°F to +140°F)
• Meets ARPM/RMA IP-3-2 oil and heat resistant standards
• Meets IP-3-3 static conductivity requirements (ISO 1813)
• ATEX compliant (Directive 2014/34/EU)
• REACH and RoHS 2 compliant

Suitable for all industrial applications including v-flat drives. Gates product number 9003-2029. Can be used individually or in matched sets for higher horsepower applications.
