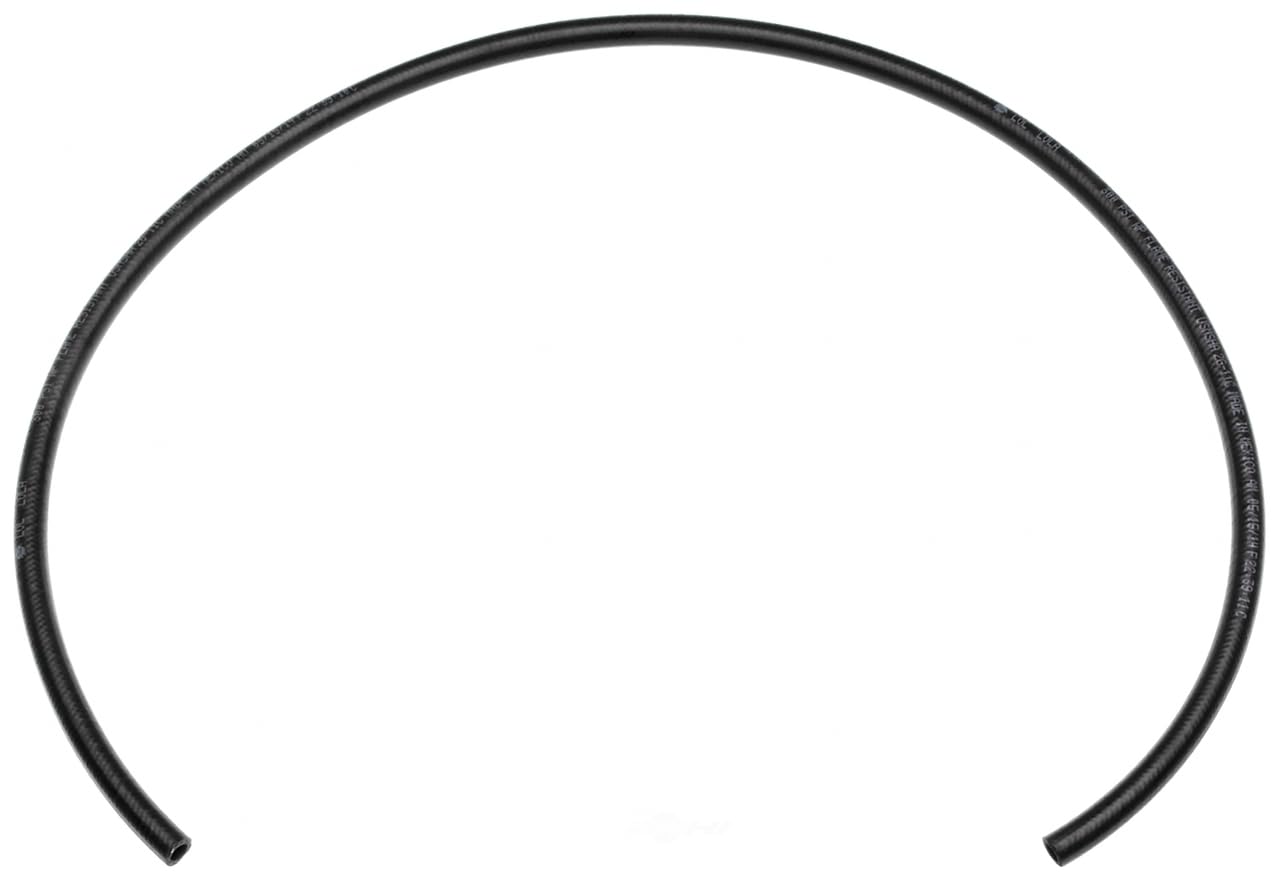

Gates 85963 LOL Plus Lock-On Hydraulic Hose 3/8 Inch ID 50 Foot

The Gates 85963 LOL Plus Lock-On Hydraulic Hose is a low-pressure hydraulic hose designed for versatile fluid transfer applications. This 50-foot length hose features a 3/8-inch inside diameter and 5/8-inch outside diameter, constructed with durable nitrile rubber (NBR) material for both the inner tube and outer cover.

Key Specifications:

• Inside Diameter: 3/8 inch (9mm)
• Outside Diameter: 5/8 inch (16mm)
• Maximum Working Pressure: 300 PSI
• Minimum Burst Pressure: 1200 PSI
• Temperature Range: -40°F to +212°F (air applications to +160°F)
• Reinforcement: Single fiber braid construction
• Minimum Bend Radius: 3 inches
• Vacuum Rating: 28 inches Hg
• Cover: Black, Type C2 abrasion, flame, and oil-resistant

Applications: Recommended for petroleum-based hydraulic oils, water, glycol antifreeze solutions, engine lubricating oils, and compressed air. Compatible with Field Attachable LOC Couplings (G36 Series), GLX Couplings (G44 Series), and G37/G38 fittings with clamps.

Important: Lock-On hose is not recommended for pressure surge applications or permanent installation in residential/commercial buildings. Do not use for gasoline or diesel fuels unless specifically approved by Gates H/C Product Application.
