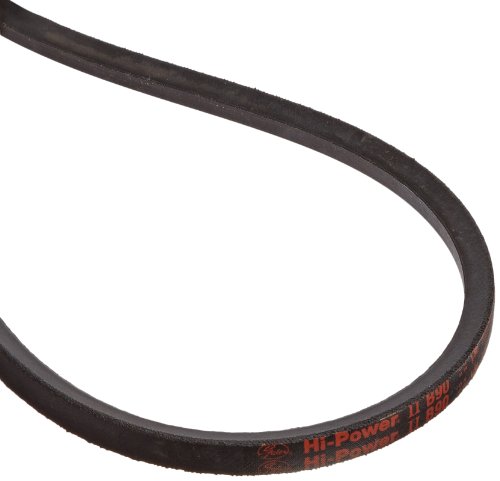

Gates B90 Hi-Power II V-Belt B Section 93 Inch

The Gates B90 Hi-Power II is a multipurpose power transmission V-belt featuring composite, multi-purpose construction that resists oil, heat, ozone, sunlight, weather, and aging. This B-section belt measures 21/32 inch (0.66 inch) wide with a 93-inch outside circumference.

Key Features:

• Made of EPDM (ethylene propylene diene monomer) rubber for superior resistance to weathering, oils, water, and some solvents
• Flex-bonded cords are strongly bonded to the belt body, resulting in equal load distribution and absorption of bending stress without cord deterioration
• Flex-Weave cover provides extended protection to the belt core from oil, dirt, and heat for longer cover life
• Engineered EPDM material combats self-igniting, preventing fire from heat buildup even with severe slippage
• Concave sidewalls provide proper cord support and full contact with the sheave groove for equal loading and uniform wear
• Part of Gates V80 matching system, ensuring precise matching for even load distribution on multi-belt drives
• Static conductive (ISO 1813) and compliant with Directive 2014/34/EU-ATEX requirements

Operating temperature range: -30°C to +60°C (-22°F to +140°F). Suitable for all industrial applications, including v-flat drives. Meets RMA oil and heat-resistant standards and static-conductivity requirements.
