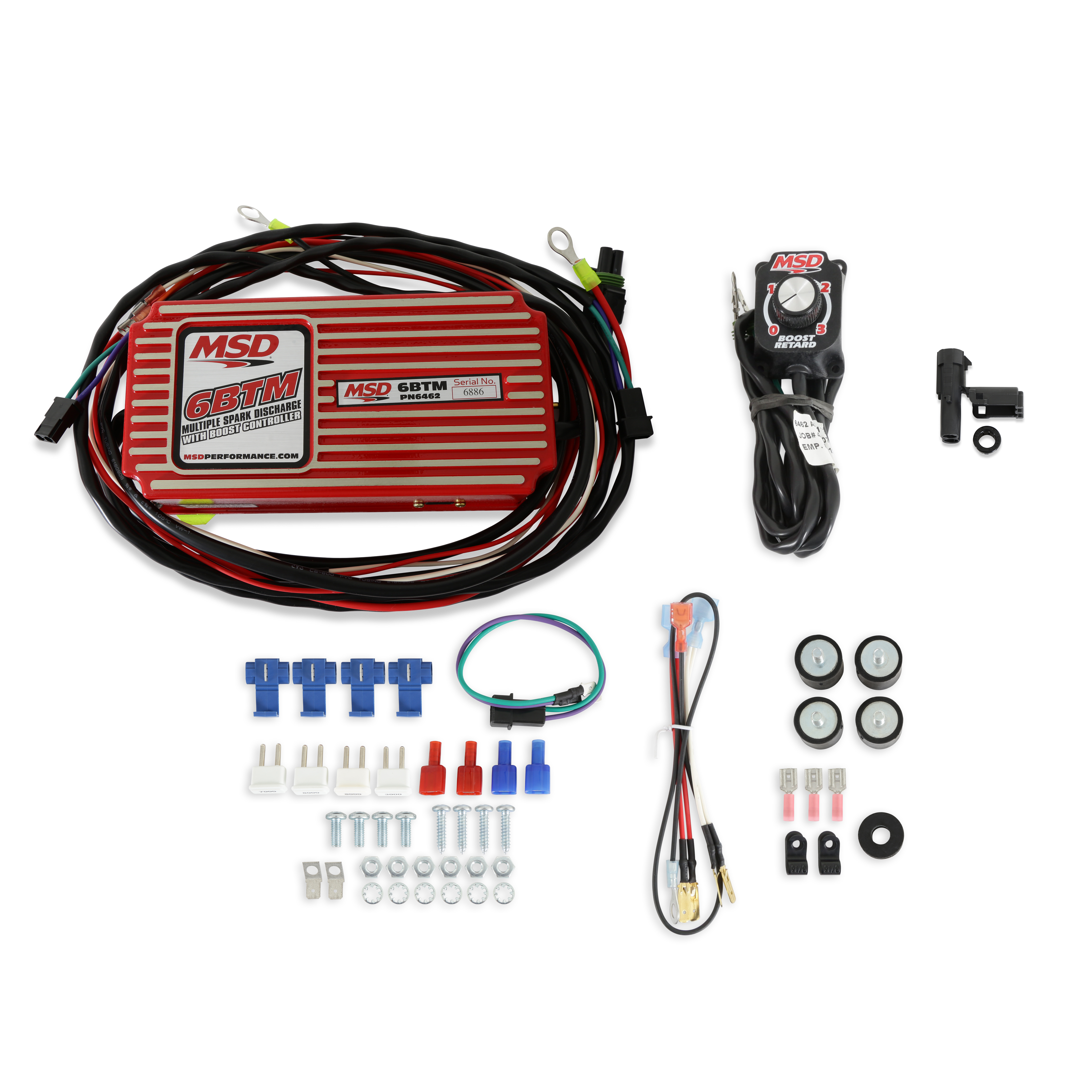

MSD 6462 6-BTM Boost Timing Master Ignition Control Box

Manufacturer

Part Number

6462
Black Friday Price

$718.95

4 left at this price

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

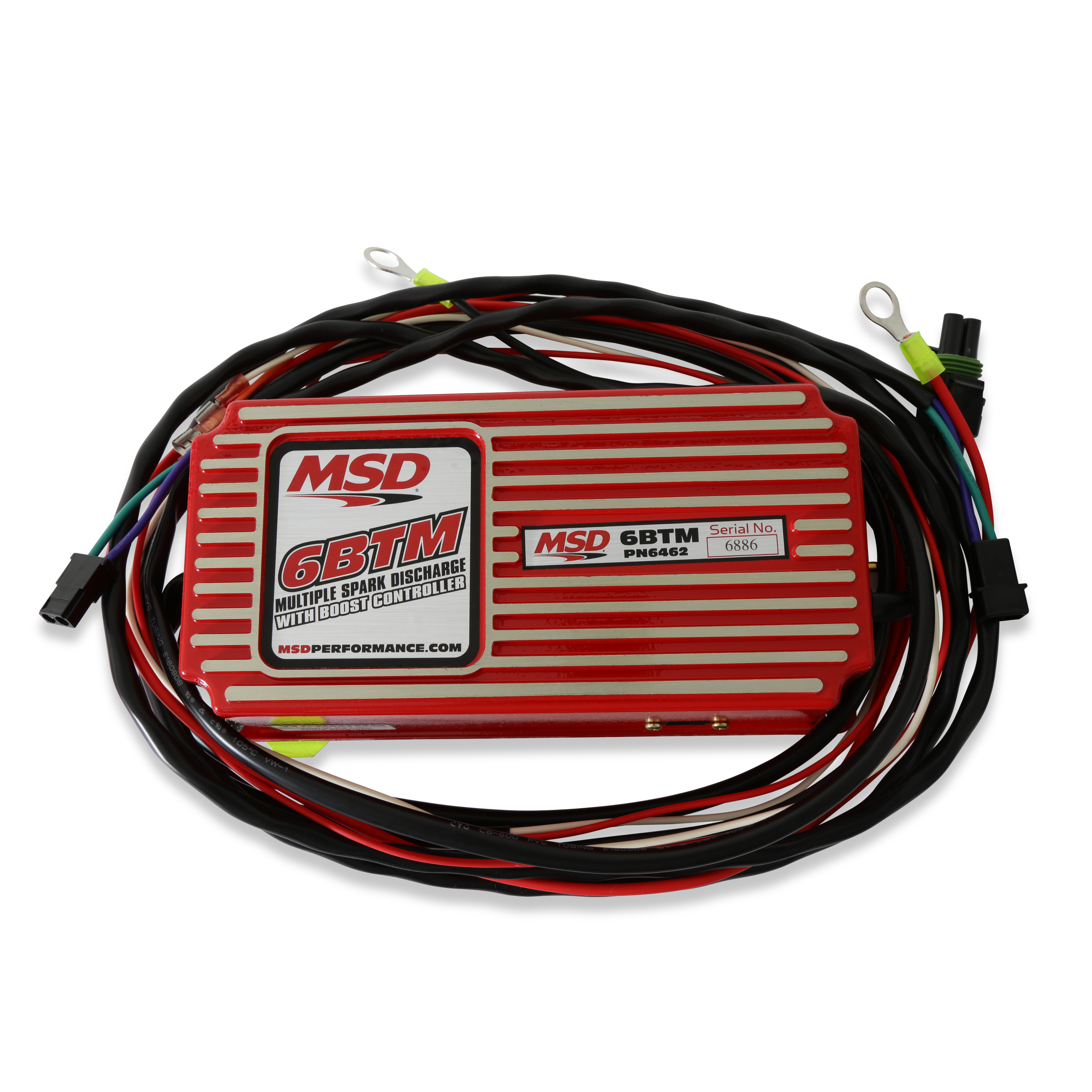

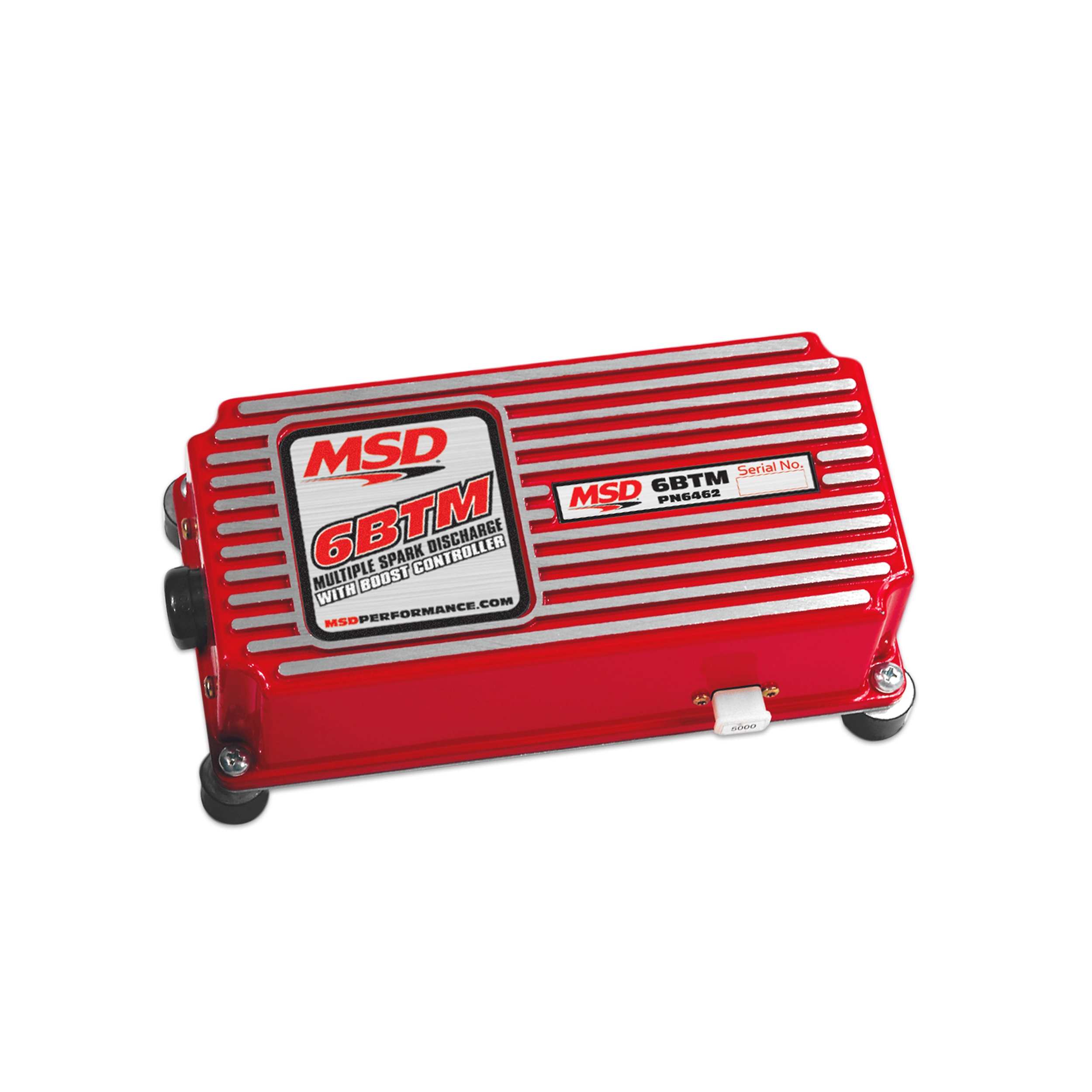

The MSD 6462 6-BTM Boost Timing Master is a multiple spark, capacitive discharge ignition control designed specifically for forced induction engines. When a turbocharger or supercharger increases cylinder pressure, the risk of destructive detonation rises significantly. The 6-BTM addresses this directly with a built-in boost-referenced timing retard circuit that automatically pulls timing in proportion to boost pressure, keeping your engine safely on the edge of maximum power without detonation.

A dash-mounted control knob lets you fine-tune the retard rate from 0° to 3° per pound of boost, up to a maximum of 15° total retard. The boost pressure is monitored by a sensor integrated directly into the unit, requiring no external boost controller. By electronically managing ignition timing relative to boost, the engine can operate at the threshold of detonation for optimal power and efficiency.

Key Features:

  • Adjustable timing retard: 1°–3° per pound of boost, maximum 15° total retard
  • Multiple spark capacitive discharge ignition — fires multiple sparks through 20° of crankshaft rotation
  • 110 millijoules of spark energy per firing, up to 15,000 RPM
  • 470-volt primary output to coil; up to 45,000V secondary (with Blaster coil)
  • Built-in boost pressure sensor — no external boost controller required

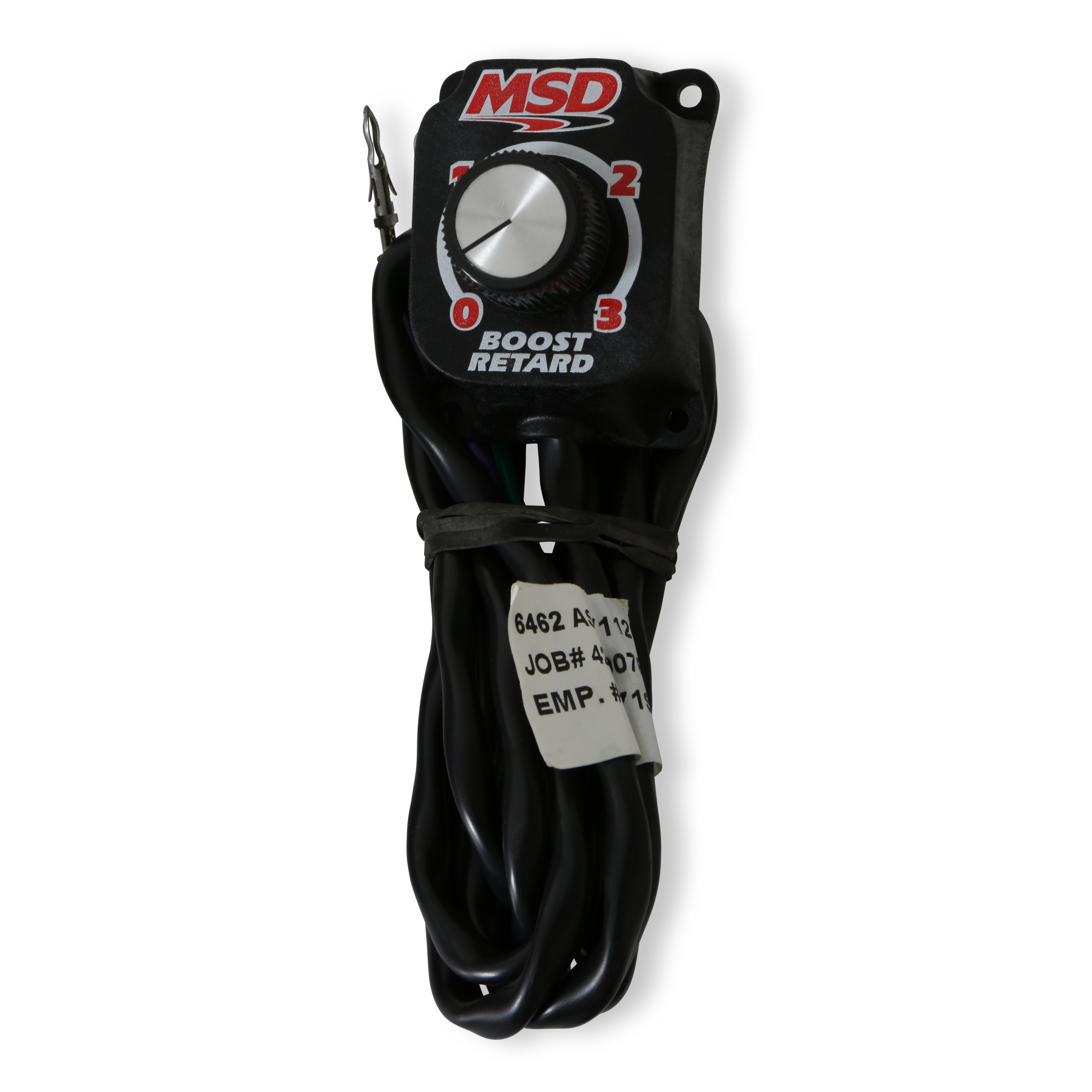

  • Dash-mounted timing retard control knob included
  • Built-in Soft Touch Rev Control adjustable with included RPM modules

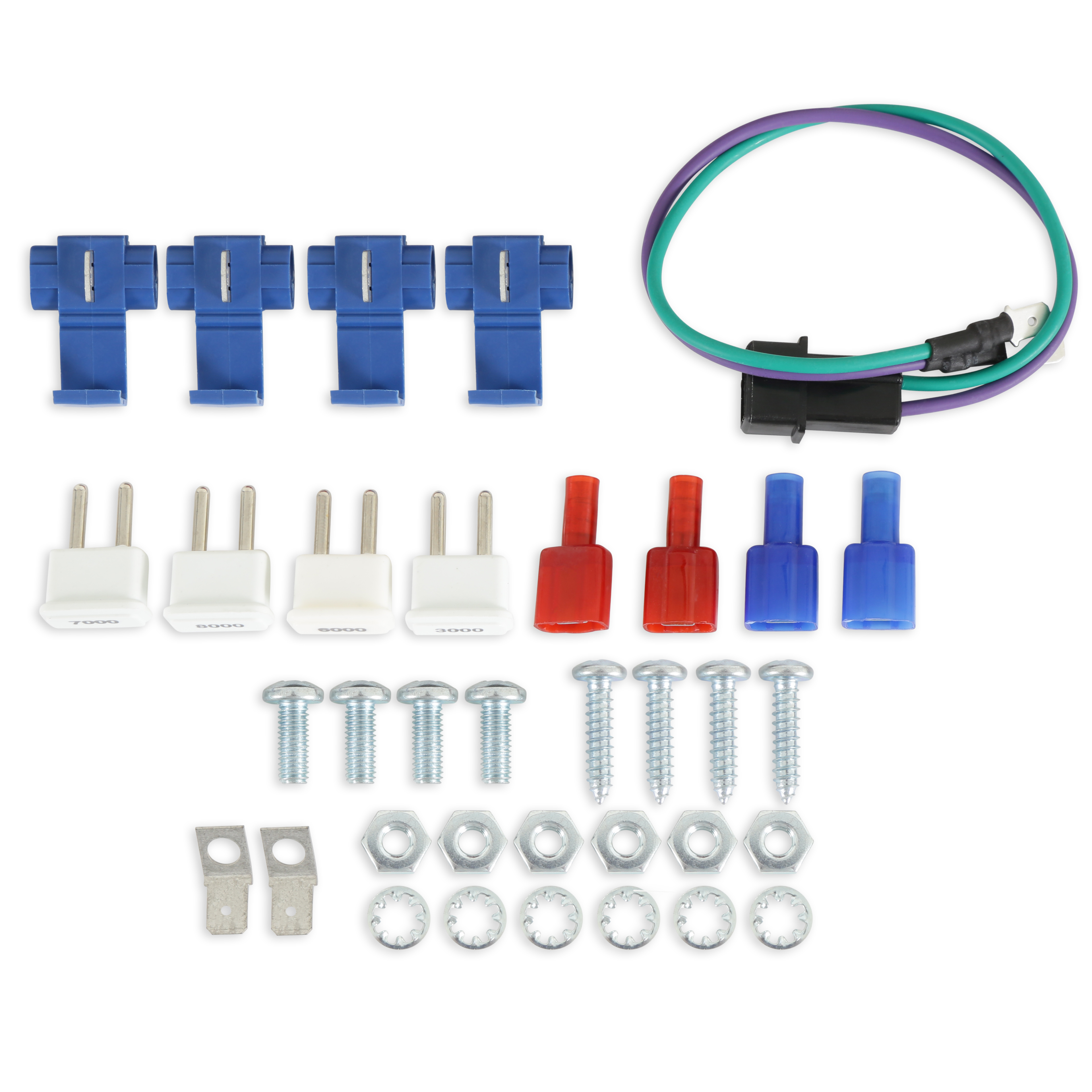

  • Supplied with RPM modules for 3,000, 6,000, 7,000, and 8,000 RPM
  • Programmable for 4-, 6-, or 8-cylinder engines by cutting red/blue wire loops
  • Accepts breaker points, amplifier, and magnetic pickup trigger inputs
  • Compatible with 10–18V negative ground electrical systems; 7V start capability

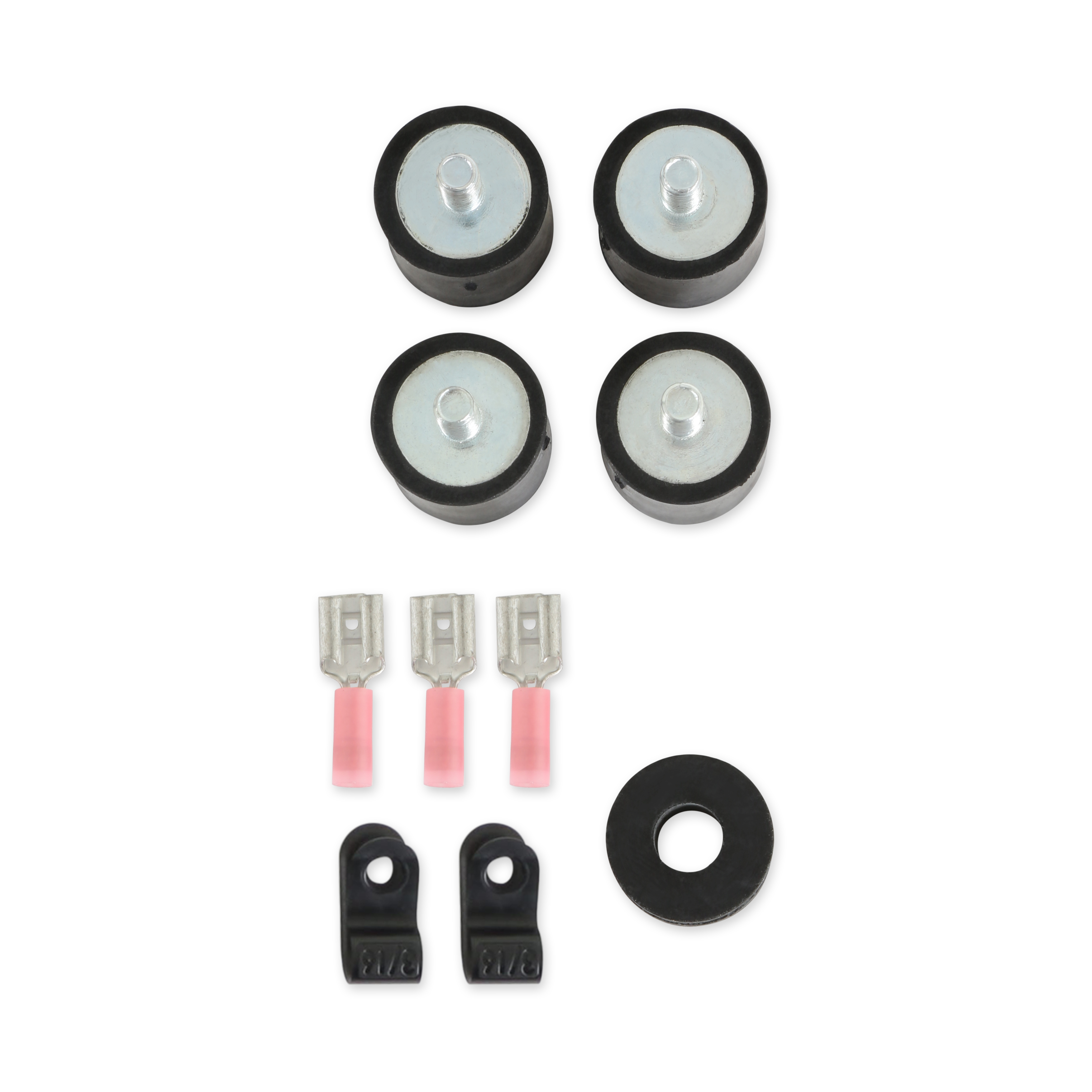

  • Supplied with rubber shock mounts for vibration protection
  • CARB E.O. Approved

Important Notes: Not compatible with distributorless ignition systems. Some factory and aftermarket tachometers and fuel injection systems may require an MSD Tach/EFI Adapter when used with an MSD 6-series ignition.
