FAST 301007 XFI 2.0 ECU with Intelligent Traction Control and Internal Data Logging

The FAST 301007 XFI 2.0 Engine Control Unit delivers ultimate control and adjustability for high-performance EFI systems. This premium ECU kit includes Intelligent Traction Control and Internal Data Logging capabilities, providing advanced features for street, strip, and race applications.

Revolutionary Performance:

• Flash microprocessor technology processes, analyzes, and adjusts four times faster than previous EFI systems
• Surface mount component circuit board and billet ECU enclosure for superior durability
• Built-in wideband O2 sensor with NTK sensor and wiring harness included
• Controls up to 16 high impedance injectors and 8 coils
• Self-learning auto-tuning VE table for quick fuel mapping or manual tuning control

Intelligent Traction Control (ITC):

• State-of-the-art predictive software prevents wheel spin and loss of traction
• User adjustable delay to ignore erroneous starting line activation
• Separate output wire activation upon ITC triggering

Internal Data Logging (IDL):

• Records up to 24 input channels and sensors for comprehensive real-time monitoring
• Memory-based system requires no additional hardware
• Separate arming input option for expanded control

Advanced Tuning Features:

• C-Com XFI Windows-based software with field-flashable updates
• Qwik Tune capability for programming without a laptop
• Pre-program up to 4 different EFI maps for various driving conditions
• 5-bar MAP sensing, boost control, and knock control
• Nitrous control with progressive power adder controls for wet or dry systems
• Flex fuel compatible with multiple ignition strategies

Standard Features Include:

• Fully sequential and/or bank-to-bank fuel injection capability
• Individual cylinder correction for precise tuning
• Fan and fuel pump control with torque converter lockup
• Air conditioning wide-open throttle cutout
• Fuel and oil pressure logging capabilities
• On-board diagnostics with EZ Test indicator lights
• Adjustable injector timing and dynamic 2D/3D table scaling

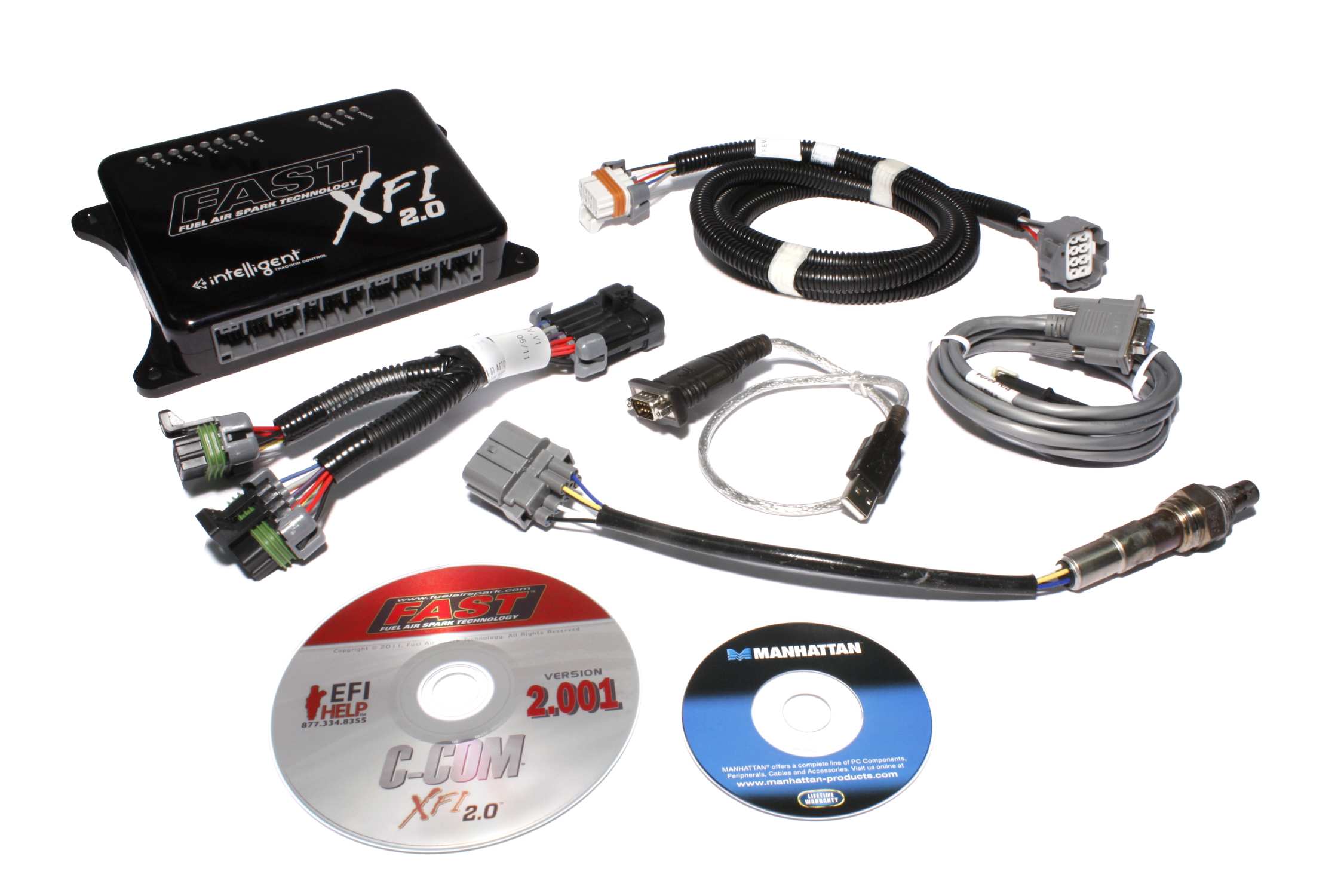

Kit Includes: XFI 2.0 ECU with Intelligent Traction Control and Internal Data Logging, wide-band NTK O2 sensor with wiring harness, 5-foot communication cable, USB to serial converter cable, and chrome XFI badge.

The FAST XFI 2.0 system stays current with downloadable software updates via email or directly from FAST, without ever removing the ECU from your vehicle. Engine-specific wiring harnesses with clearly labeled connections are available separately for simplified installation.
