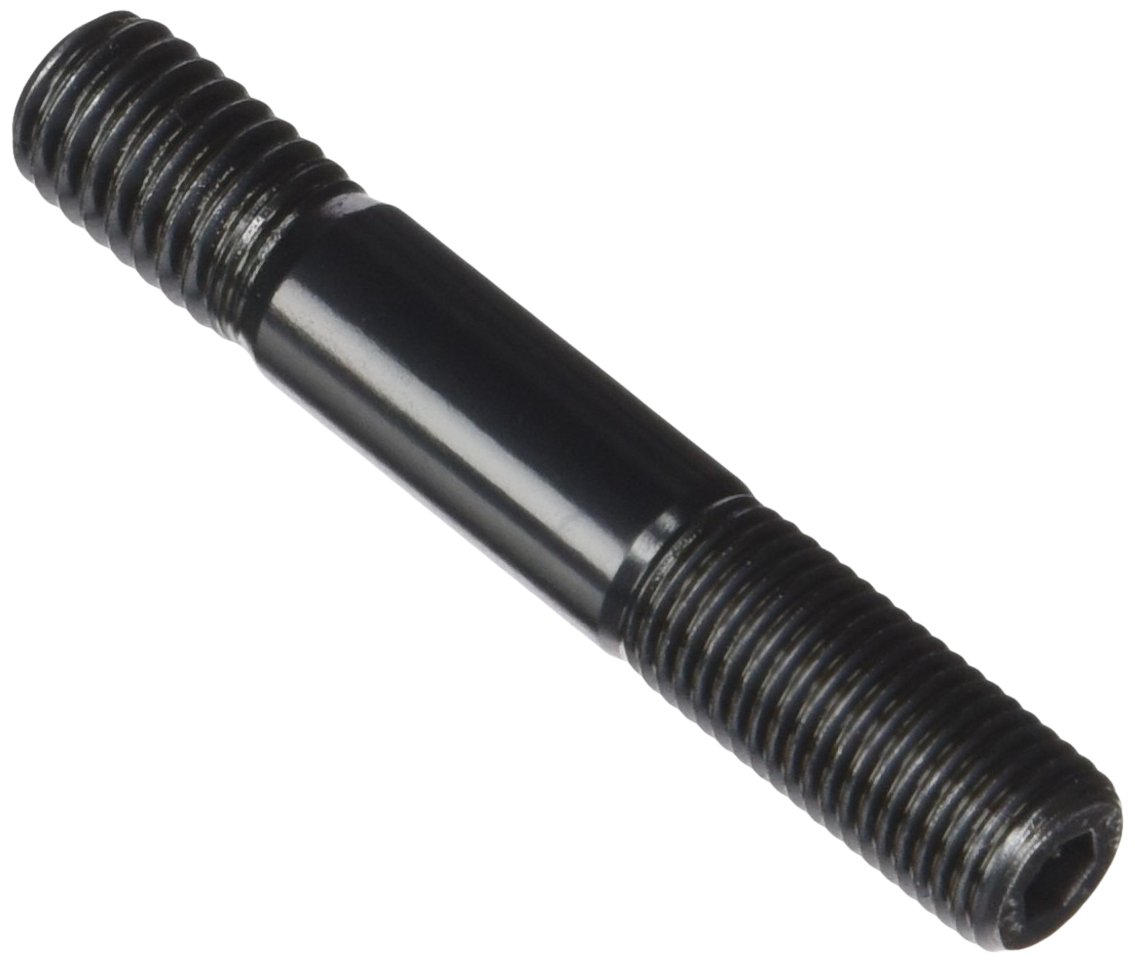

ARP 234-4109 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 234-4109 cylinder head stud kit represents the gold standard in engine fastening technology, trusted by professional engine builders worldwide for high-performance and competition applications. Manufactured from premium 8740 chrome moly steel and rated at 200,000 psi, these studs deliver exceptional strength and reliability far exceeding standard grade 8 fasteners.

Key Features:

• Premium 8740 chrome moly steel alloy rated at 200,000 psi tensile strength
• Vertical rack heat-treating process ensures complete and uniform heat penetration
• Centerless ground after heat-treat for precise concentricity and straightness
• Thread rolled after heat-treat for 1000% better fatigue strength versus pre-heat-treat threading
• Hex head design for reliable wrenching and installation
• Undercut shorter studs (where applicable) equalize stretch for consistent clamping force
• Hardened parallel-ground washers included for even load distribution
• ARP stamped on each stud for authenticity verification

Superior Manufacturing Process:

ARP's meticulous manufacturing process sets these studs apart from the competition. Each stud is individually heat-treated in vertical racks rather than batch-processed, ensuring consistent quality throughout. The centerless grinding operation involves approximately ten precision cuts to achieve exceptional straightness and concentricity, allowing cylinder heads and gaskets to align perfectly during installation. Thread rolling is performed after heat treatment—a more expensive process that dramatically improves fatigue resistance.

Performance Benefits:

Head studs offer significant advantages over conventional head bolts for performance applications. Studs eliminate the twisting forces present when torquing bolts, providing more accurate and consistent clamping loads. They simplify engine assembly by allowing the cylinder head to drop into perfect alignment with the block. The undercut design on shorter studs compensates for head gasket compression, helping prevent blown gaskets and ensuring optimal combustion sealing under extreme conditions.

Installation Notes:

Studs should be installed finger-tight in a relaxed state—never use a jammed nut to crank them in tight. Torque is applied only to the nuts, allowing the studs to stretch uniformly along the vertical axis. Always re-torque after initial engine operation to compensate for head gasket compression. This kit includes all necessary hardware including hardened washers for complete installation.

When maximum reliability and clamping force consistency are required, ARP Pro Series head studs are the choice of champions across all forms of motorsports and high-performance engine building.
