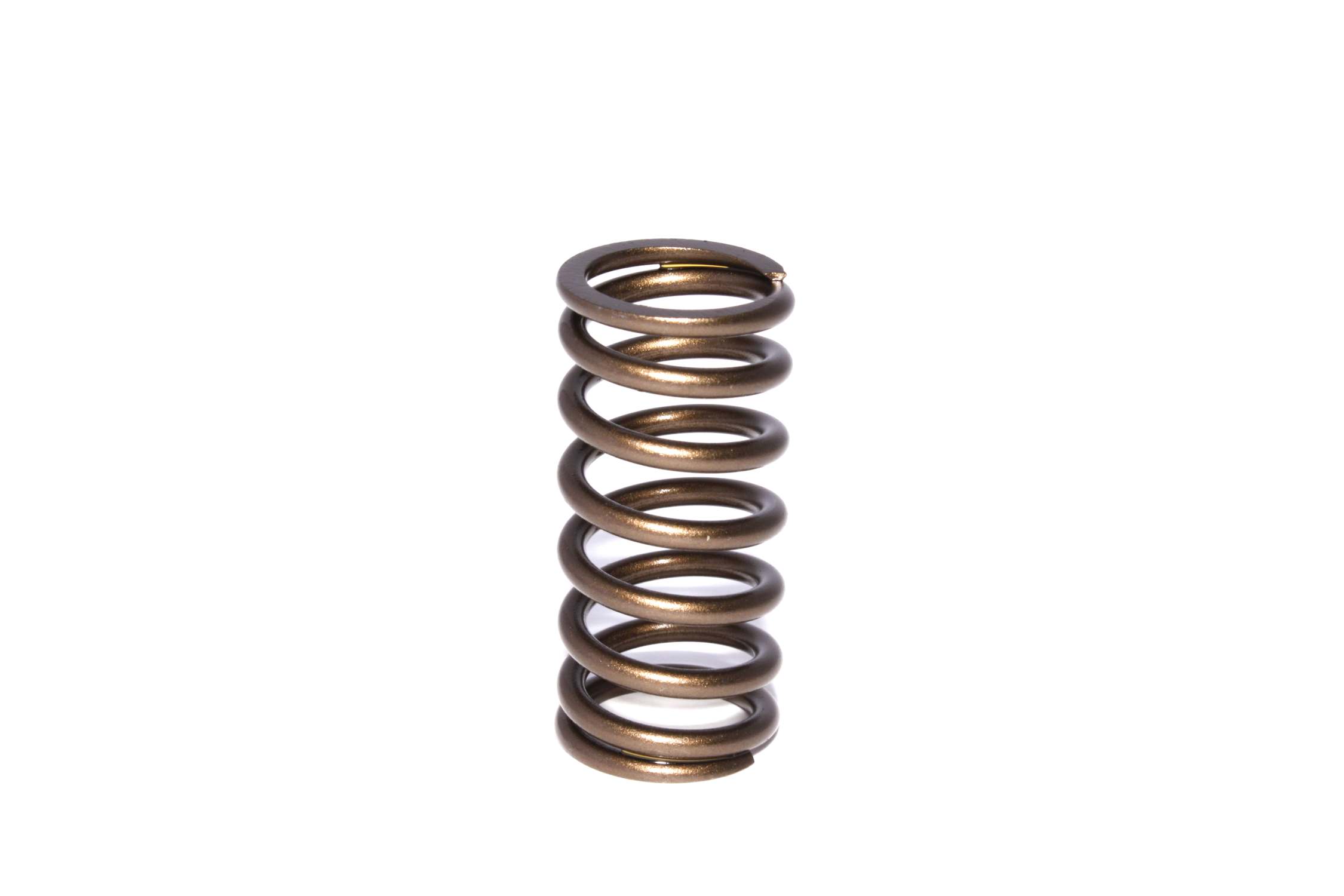

COMP Cams 974-1 Single Inner Valve Spring 0.937" OD

Manufacturer

Picture for manufacturer COMP Cams

Part Number

974-1
10 reviews
Sale Price

$106.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The COMP Cams 974-1 is a single inner valve spring designed to allow you to build the perfect spring assembly for your application. This precision-engineered spring features a 0.937" outer diameter and 0.697" inner diameter.

Key Specifications:

  • Outer Diameter: 0.937 inches
  • Inner Diameter: 0.697 inches
  • Spring Rate: 96 lbs/inch
  • Seat Load: 27 lbs at 1.650" installed height
  • Open Load: 70 lbs at 1.200"
  • Coil Bind Height: 0.920 inches
  • Spring Type: Single inner spring (no damper)

COMP Cams has developed a process that creates the highest quality valve spring available by selecting the right metal stock and creating the best design. The result is a product that meets and exceeds the expectations of today's engine builders and racers. This inner spring is designed to work in conjunction with outer valve springs in dual spring assemblies commonly used in performance and racing applications.

Application Notes: This single inner valve spring is typically used as a component in dual valve spring assemblies. It provides additional valve control and helps prevent valve float in high-RPM applications. Sold individually.

Products specifications

Number of Springs

1

Outer Spring Inside Diameter

0.697

Coil Bind Height

0.92

Outer Spring Outside Diameter

0.937

Seat Height

1.65

Seat Pressure

27

Spring Rate

96

Damper

No

AMAZON ASIN

B00062Z9PI

Prop 65

WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?

Yes

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?

Yes, but must be a race/competition only vehicle.

C.A.R.B. Exemption Reason

No impact on pollution output of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?

Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?

Yes, but must meet tailpipe emission standards for year of vehicle.
