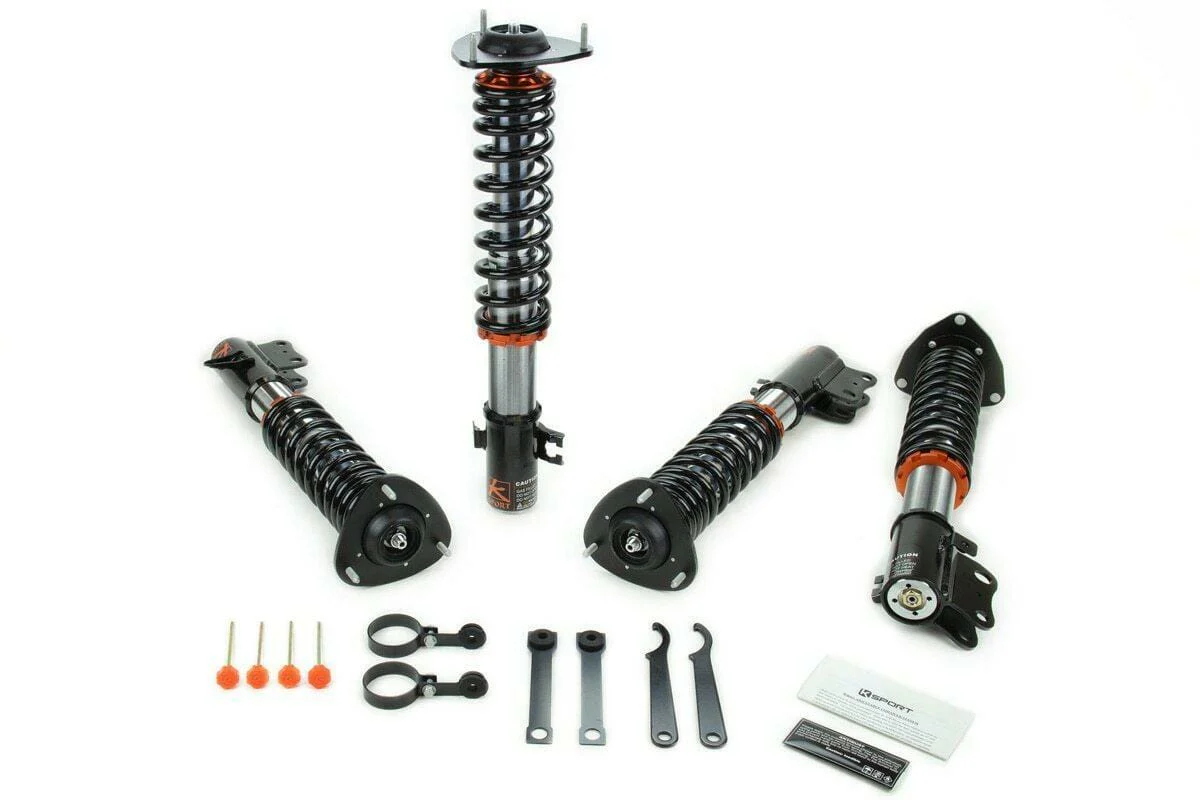

Ksport CMZ241-GR Rally Spec GR Gravel Rally Coilover Kit Adjustable Monotube - 36-Way

The Ksport Rally Spec GR (CMZ241-GR) is a competition-grade coilover system engineered from the ground up for the demands of gravel rally racing. Featuring extended shock stroke, rally-tuned damping, and heavy-duty construction throughout, this kit delivers the durability and adjustability serious rally competitors require.

36-Way Adjustable Damping

With 36 levels of damping adjustment, the GR kit allows precise tuning to match your driving style and stage conditions. Compression and rebound are adjusted simultaneously via a single knob, making setup changes fast and straightforward at the service park.

Suspension Type-Specific Configuration

• Vehicles with MacPherson strut suspension receive inverted shocks with steel lower and top mounts for maximum rigidity under impact loads
• Vehicles with wishbone or multi-link suspension receive standard non-inverted shocks with aluminum top mounts
• Camber top mounts are not included with Gravel Rally kits

Key Features:

• Extended cylinder length and piston stroke — specifically lengthened for rally use, improving handling over rough, uneven terrain
• Rally-spec springs — extended length springs ranging from 250mm to 270mm designed for gravel competition
• Adjustable lower mount — allows ride height adjustment without sacrificing suspension travel, unlike many conventional coilover designs
• 6061 billet aluminum construction — mounts and the majority of coilover components are machined from 6061 billet aluminum for a lightweight, rust-resistant build
• Zinc-electroplated steel shock bodies — corrosion-resistant finish protects against the elements encountered during rally competition; includes an anti-rust paste packet for application to critical areas
• Valving matched to spring rate — each set is valved to complement the installed springs for consistent, reliable performance
• Monotube high-pressure design — oil and gas are separated within the cylinder, dissipating heat faster and more evenly than twin-tube designs while minimizing aeration and cavitation for a more consistent damping response

Important Note: Due to the extreme nature of gravel rally competition, no warranty is offered on Rally Spec GR kits.
