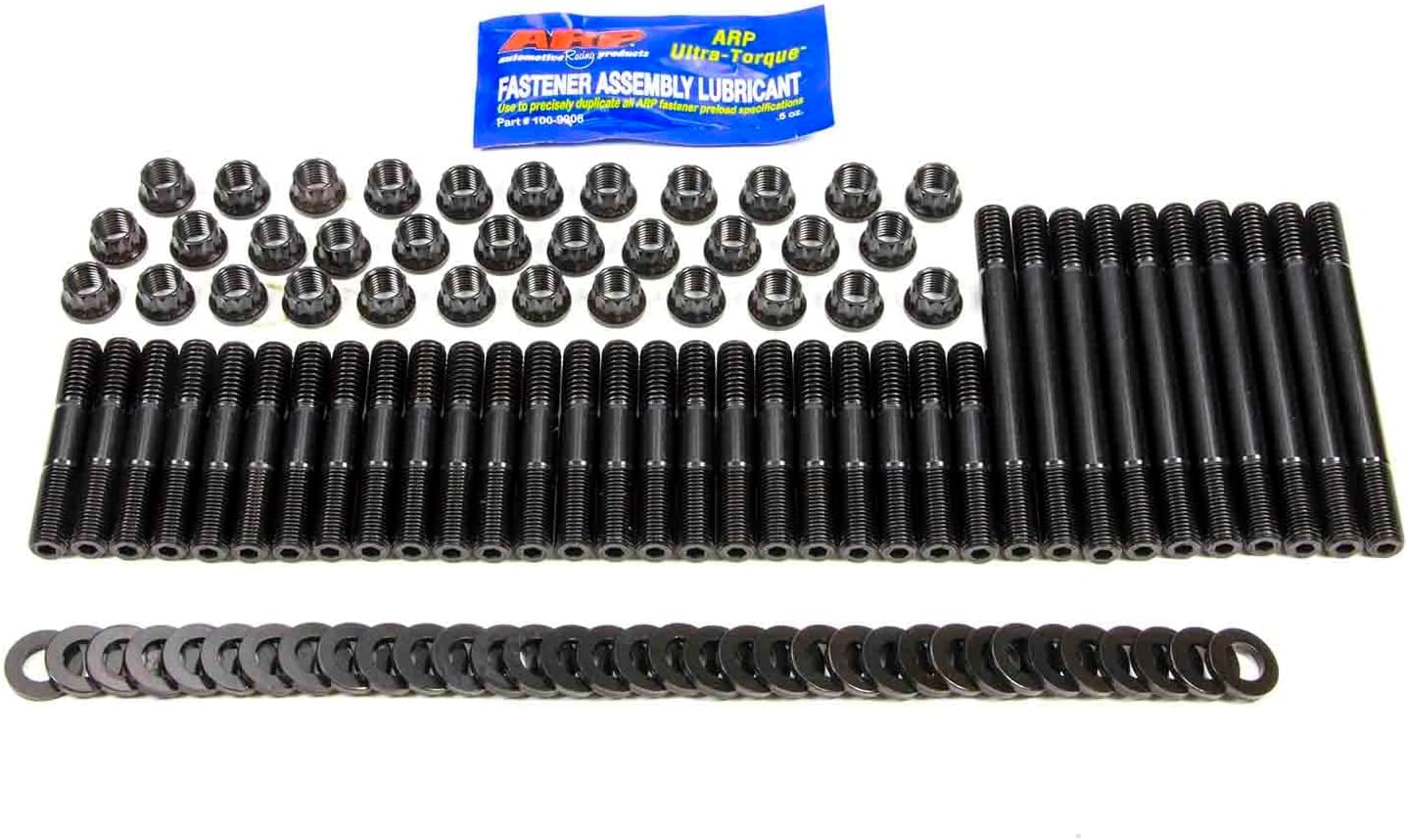

ARP 145-4206 High Performance Cylinder Head Stud Kit Chrome Moly - 8740

The ARP 145-4206 cylinder head stud kit represents the gold standard in engine fastening technology, trusted by professional engine builders in all forms of racing. Manufactured from premium grade 8740 chrome moly steel, these studs are heat-treated to 200,000 psi using a precise vertical rack process that ensures complete heat penetration and superior material properties compared to conventional basket heat-treating methods.

Key Features:

• Premium 8740 chrome moly alloy construction rated at 200,000 psi tensile strength
• 12-point head design for precise torque application
• Centerless ground after heat-treat for exceptional concentricity and straightness
• Thread rolled after heat-treat for 10x better fatigue strength than pre-threaded fasteners
• Specially undercut shorter studs equalize stretch for consistent clamping force
• Includes hardened parallel-ground washers for even load distribution
• Wide area flanged design eliminates need for valve train removal during retorquing

Performance Benefits:

ARP's manufacturing process ensures that cylinder heads and gaskets align perfectly during assembly, with components literally gliding into position. The post-heat-treat thread rolling process significantly enhances fatigue resistance, while the undercut stud design compensates for head gasket compression to help prevent blown gaskets and ensure optimal engine sealing. Each stud is marked with the ARP stamp as assurance of quality and adherence to ARP's zero-defect, zero-failure standard.

Installation Notes:

Studs should be installed finger-tight in a relaxed mode—never cranked down using a jammed nut. This allows the stud to stretch only on the vertical axis when torque is applied to the nut, providing more accurate and consistent clamping force compared to bolts, which experience both torsional and tensile loads simultaneously. Always re-torque after initial engine operation to compensate for head gasket compression.
