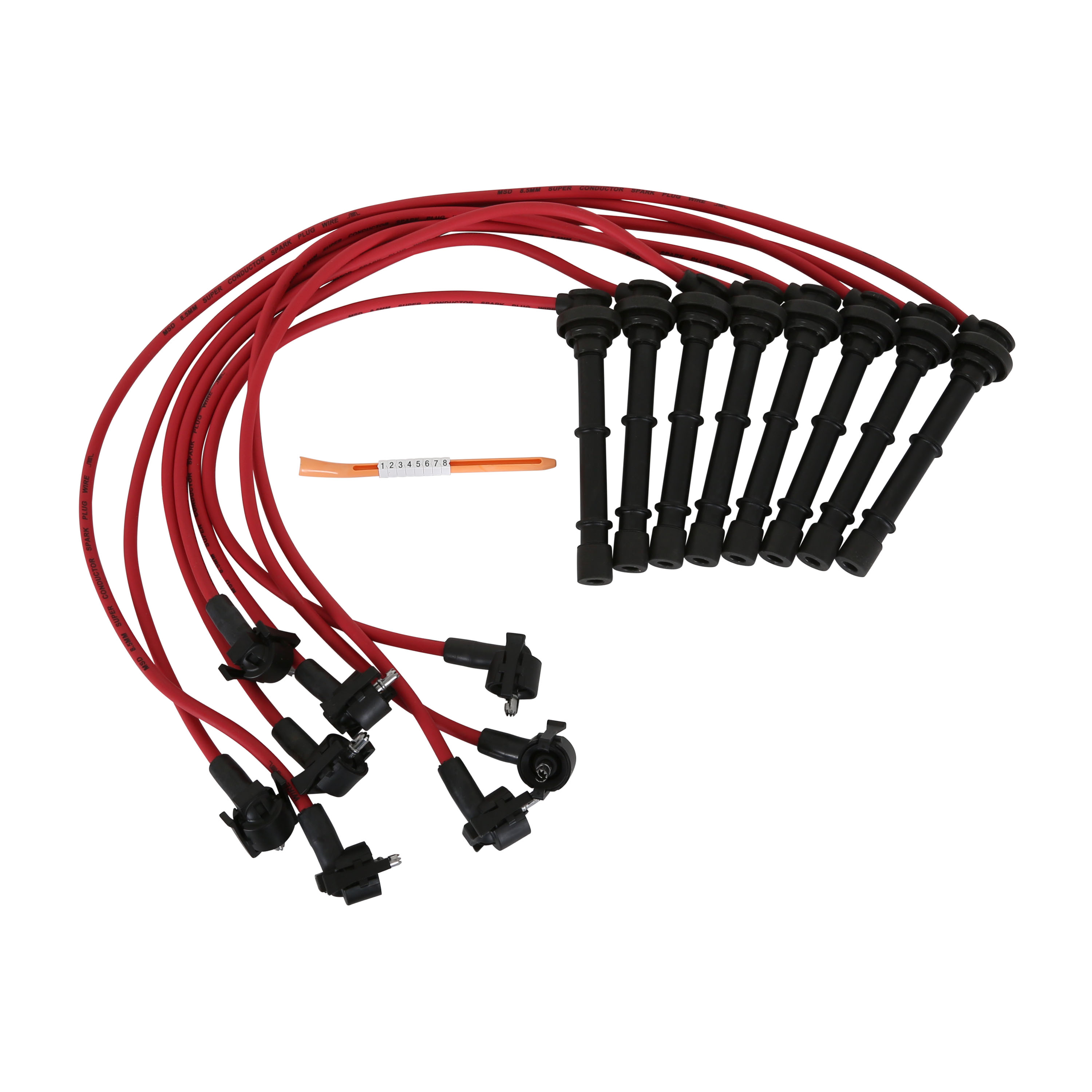

The MSD 32219 Super Conductor Spark Plug Wire Set is a custom-fit, vehicle-specific ignition wire set engineered for maximum spark energy delivery and superior EMI suppression. Built around MSD's renowned 8.5mm Super Conductor technology, this set delivers the performance your ignition system demands with a bold red jacket.
Ultra-Low Resistance Design:
At the heart of the Super Conductor wire is a copper alloy conductor helically wound at an extremely tight pitch around a special center core — over 40 feet of conductor packed into every single foot of finished wire. The result is just 40–50 ohms of resistance per foot, the lowest of any helically wound wire available, ensuring minimal spark energy loss before it reaches the plug.
Ferro-Magnetic EMI Suppression:
The tight winding procedure, combined with a ferro-magnetic impregnated center core, creates a highly effective electromagnetic interference (EMI) choke. This keeps RFI/EMI contained within the wire, preventing interference with your vehicle's sensitive electronics — while still delivering RFI suppression equivalent to a 1,500-ohm wire.
Rugged Outer Jacket:
The conductor assembly is protected by a proprietary silicone and synthetic blend sleeve that resists high heat, abrasion, and tears. A tough 8.5mm outer jacket over an extra-heavy glass braid and dielectric insulator keeps current efficiently guided to the spark plugs.
Dual Crimp Stainless Steel Terminals:

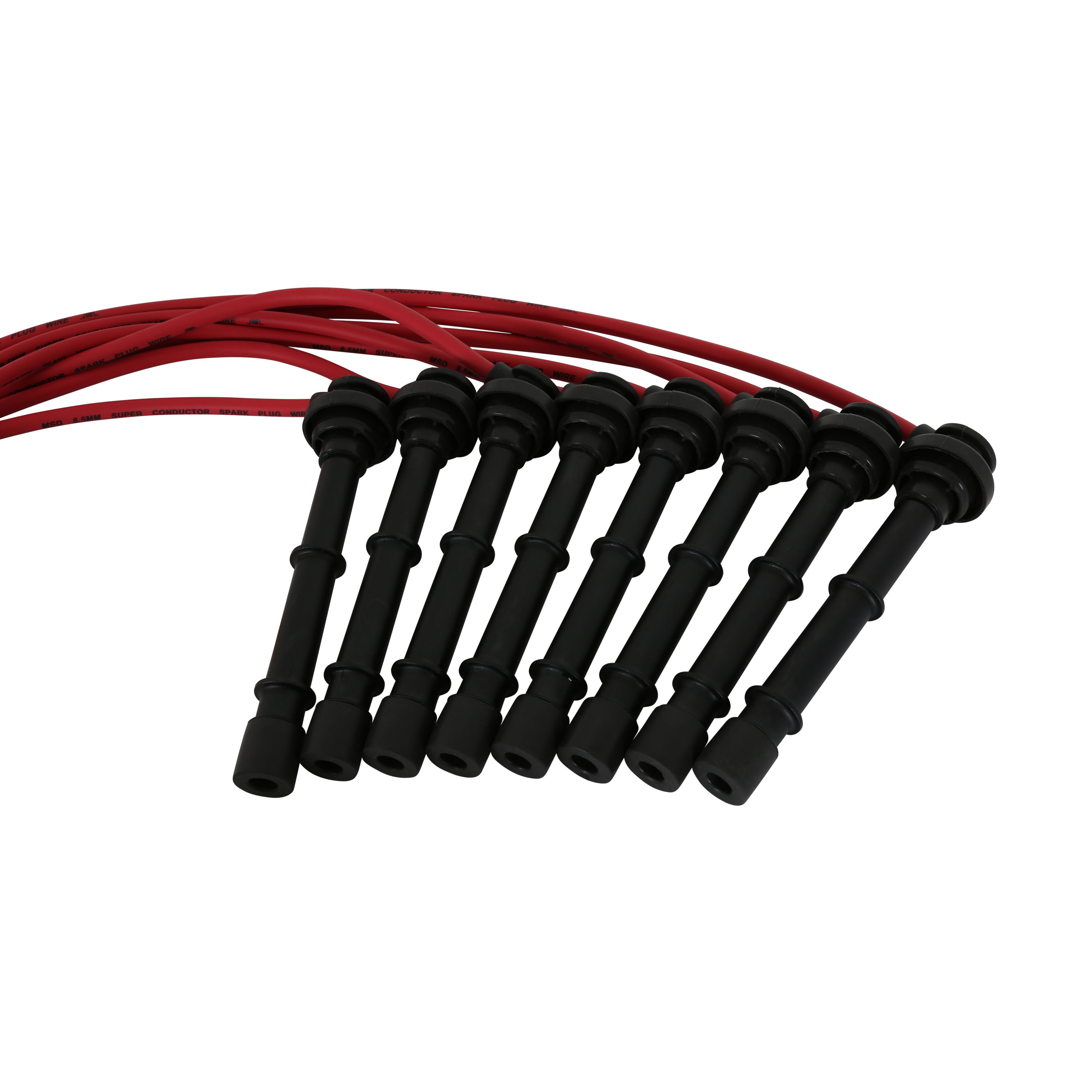

MSD's Dual Crimp terminals feature two separate crimp points — one securing the wire sleeve and a second dedicated crimp on the conductor itself — for a reliable, low-resistance connection that won't loosen or corrode over time. Boots are 90-degree style to fit the Cobra DOHC 4.6L layout.
Key Features:
- 8.5mm Super Conductor wire construction
- 40–50 ohms resistance per foot — lowest of any helically wound wire
- Ferro-magnetic impregnated core for EMI/RFI suppression
- Copper alloy helically wound conductor
- Silicone/synthetic outer jacket — heat, abrasion, and tear resistant
- Dual Crimp stainless steel terminals
- 90-degree spark plug boots
- Red jacket with gray distributor boots
- Custom-fit design — sold as a complete set
- Legal for use on emissions-controlled and non-emissions-controlled vehicles
The MSD 32219 is a direct bolt-on upgrade that replaces the factory ignition wires with a high-performance set purpose-built for the Cobra DOHC 4.6L engine, delivering more spark energy to each cylinder for improved throttle response and engine efficiency.
