Manley 11817-8 Severe Duty Stainless Steel Intake Valve Stem - 2.020 11/32

Manufacturer

Part Number

11817-8
Sale Price

$301.07

In Stock (7)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

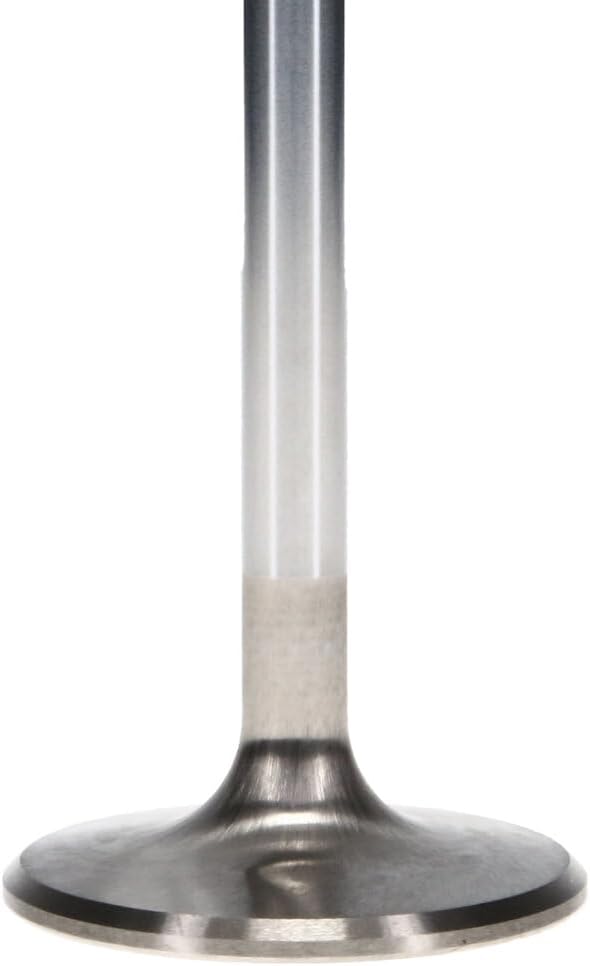

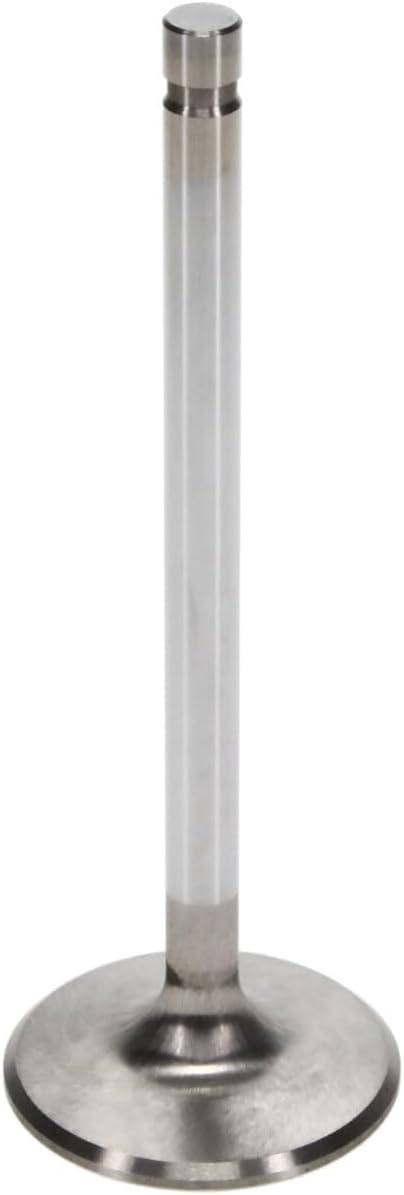

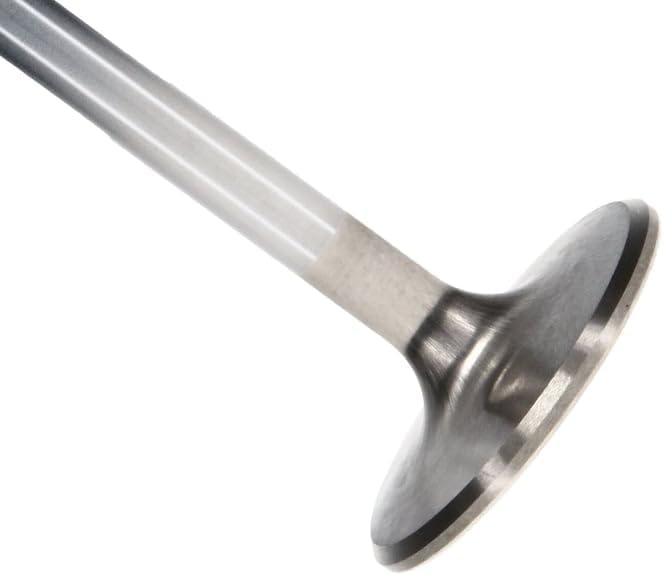

The Manley 11817-8 is a severe duty performance intake valve engineered for high-performance race engines. Constructed from premium NK-844 stainless steel, this valve features a chrome stem and hardened valve tip for maximum durability under extreme conditions. The valve is swirl polished and fully machined with a straight stem design that increases strength and longevity in demanding racing applications.

Key Specifications:

  • Valve Type: Intake
  • Head Diameter: 2.020 inches
  • Stem Diameter: 0.3415 inches (11/32")
  • Overall Length: 5.015 inches
  • Installed Height: 0.100 inches longer than stock
  • Tip Length: 0.250 inches
  • Underhead Angle/Radius: 10 degrees x 3/8 inch
  • Margin: 0.070 inches
  • Seat Width: 0.080 inches
  • Top of Head: 7 degree dish
  • Weight: 113 grams (0.25 lbs)

The superior NK-844 stainless steel construction provides excellent heat resistance and wear characteristics, making this valve ideal for forced induction, high RPM, and endurance racing applications where reliability is critical.

Products specifications

Approximate Weight (g)

122

Overall Valve Length (in)

5.422 in.

Overall Valve Length (mm)

137.719mm

Quantity

Sold as a set of 8.

Swirl Polished

Yes

Undercut Stem

Yes

Valve Head Diameter (in)

1.900 in.

Valve Head Diameter (mm)

48.260mm

Valve Head Style

6 degree dish

Valve Material

XH-428 stainless steel

Valve Seat Width (in)

0.100 in.

Valve Stem Diameter (in)

0.341 in.

Valve Stem Diameter (mm)

8.661mm

Valve Tip Length (in)

0.250 in.

Valve Tip Length (mm)

6.350mm
