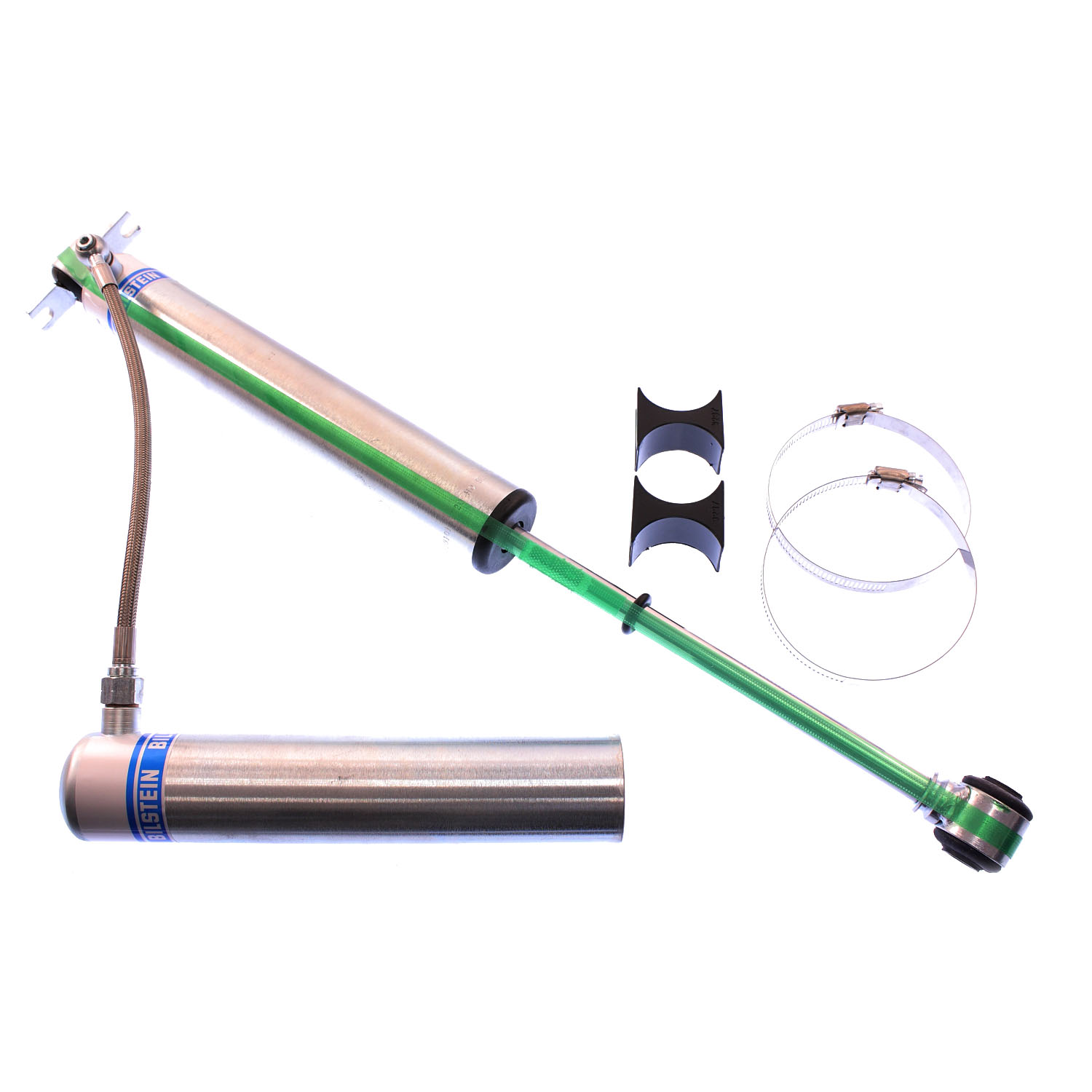

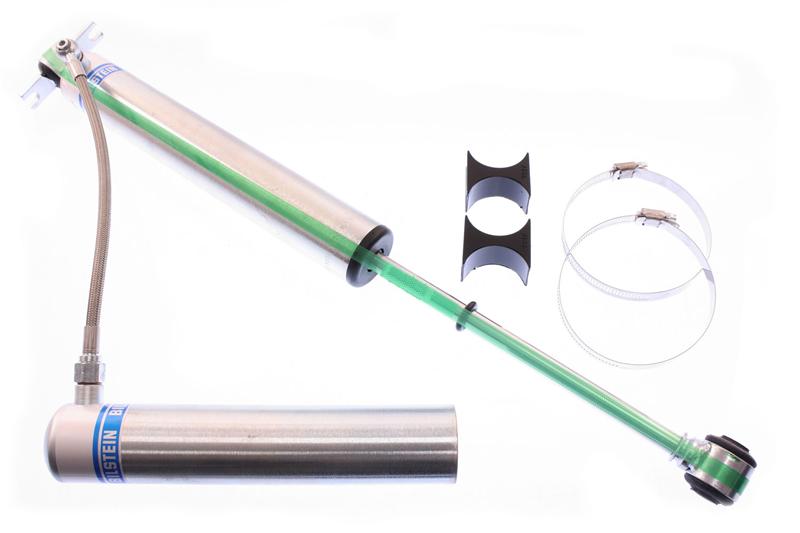

Bilstein 25-187663 B8 5160 Remote Reservoir Monotube Shock Absorber

(2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 2000-2006, 2010-2011 BMW X5; 2007 BMW 328i; 2004-2006 BMW X3; 2003-2005 BMW 325i + 5 more models)

Manufacturer

Part Number

25-187663
Sale Price

$199.42

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Bilstein 25-187663 B8 5160 is a remote reservoir monotube shock absorber engineered as a direct-fit upgrade for lifted trucks and SUVs. Designed to deliver race-proven damping performance in a bolt-on package, the B8 5160 brings significantly enhanced off-road capability without requiring any cutting or welding for installation.

The heart of the B8 5160 is its 46mm monotube design, which features Bilstein's patented digressive piston valving. This self-adjusting deflective disc system reacts instantly to changing terrain, delivering consistent, fade-free damping whether you're on pavement or the trail. Unlike twin-tube shocks, the monotube configuration provides a larger piston surface area for superior body motion control and stability.

The external remote reservoir dramatically increases shock oil capacity for greater heat dissipation and sustained damping sensitivity during aggressive off-road use. The floating dividing piston is housed in the reservoir to maximize shock shaft travel, giving your suspension more room to work over rough terrain. Each unit features a unique 360-degree swivel banjo hose fitting for a clean, low-profile installation.

Key Features:

  • 46mm monotube design for consistent, fade-free performance
  • Remote reservoir increases oil capacity for superior heat dissipation
  • Patented digressive piston valving tuned for each specific application
  • Floating dividing piston in reservoir for increased wheel travel (10.05" of travel)
  • 360-degree swivel banjo hose fitting for clean installation
  • Collapsed length: 14.95" | Extended length: 25.00"
  • Upper mount: Bar Pin | Lower mount: Eye 12.1mm
  • Bilstein Triple-C Zinc Coating Technology® finish for long-term corrosion resistance
  • Made in the USA
  • Includes reservoir mounting kit and detailed instructions
  • Backed by Bilstein's lifetime aftermarket warranty

Replaces OEM reference: F4-BR5-G720-H0. Optional billet aluminum reservoir clamp (PN: 11-176015) available separately for an even cleaner look.

Products specifications

Fits

2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 2000-2006, 2010-2011 BMW X5; 2007 BMW 328i; 2004-2006 BMW X3; 2003-2005 BMW 325i; 2010-2011 BMW 750i xDrive; 2010-2012 BMW 750Li xDrive; 1998-1999 BMW 328is; 2010-2012 BMW 535i GT; 1969-1971 BMW 2500

*Collapsed Length (IN)

14.95

*Collapsed Length (MM)

379.7

*Extended Length (IN)

25

*Extended Length (MM)

635

Series

5160 Series

Extended Length (in)

25.00

Extended Length (mm)

635.0

Billet Reservoir Clamp Included

No

Body Design

Smooth Body (Non-Coilover)

Internal Design

Monotube

Series

B8 5160

Upper Mount Type

Bar Pin

Body Diameter (ID)

46mm

Adjustable Damping

Non-Adjustable

Reservoir

Yes

Lower Mount Type

Eye 12.1mm

Optional Reservoir Clamp

11-176015

Finish

Zinc Plated

Boot Included

No
