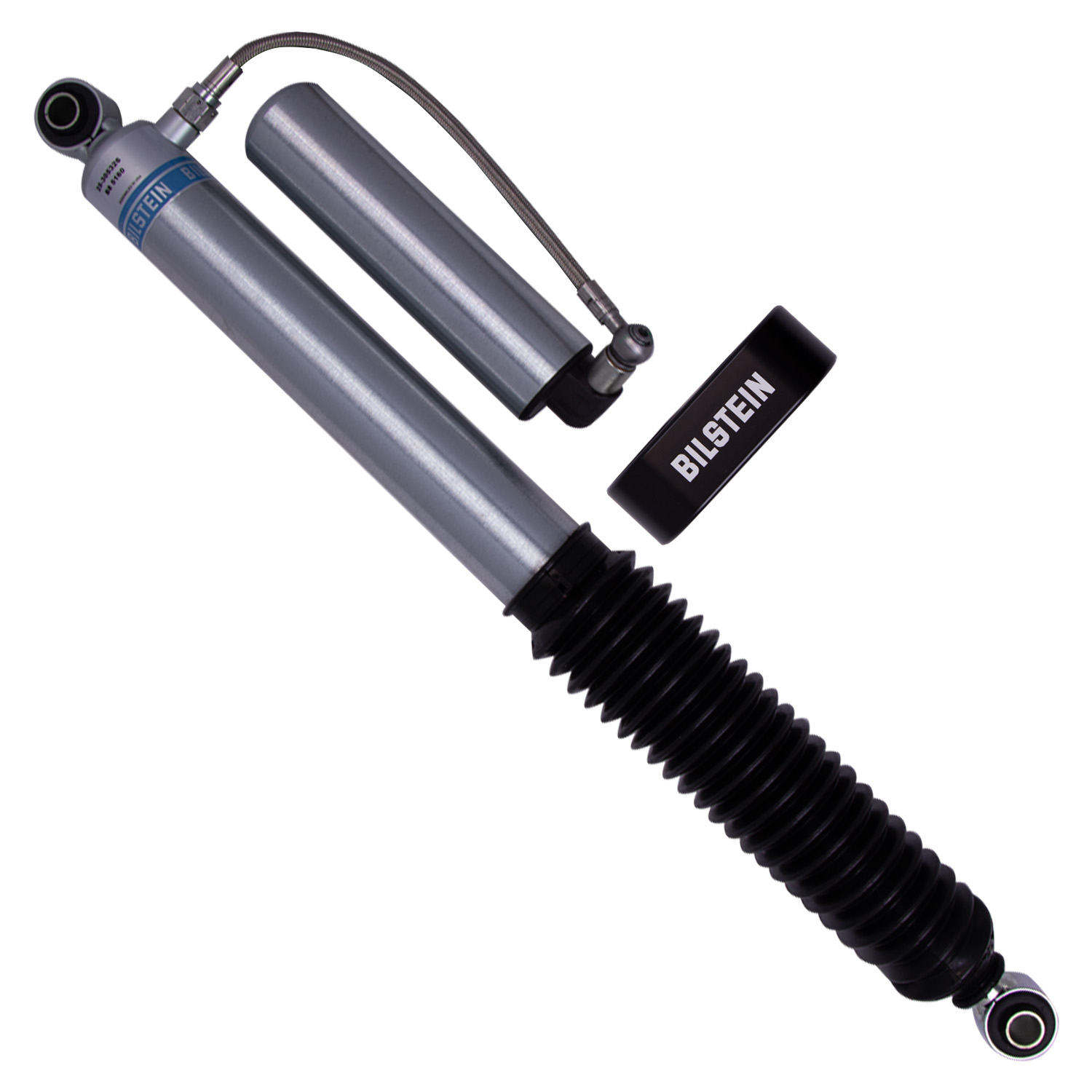

Bilstein 25-305326 B8 5160 Remote Reservoir Shock Absorber for Lifted Trucks & SUVs

(2020-2026 Jeep Gladiator)

Manufacturer

Part Number

25-305326
Sale Price

$159.20

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Bilstein B8 5160 (25-305326) is a remote reservoir shock absorber engineered as a direct-fit solution for lifted trucks and SUVs that demand serious off-road capability. Built around a 46mm monotube design, it delivers consistent, fade-free damping performance across all terrain types.

At the core of the B8 5160 is a nitrogen-charged monotube with a floating dividing piston that keeps gas and oil separated, eliminating performance-robbing fade during extended off-road use. The external remote reservoir significantly increases shock oil capacity, improving heat dissipation and extending wheel travel compared to a conventional shock absorber.

Key Features:

  • 46mm monotube construction with nitrogen gas charge for consistent, fade-free performance
  • Remote reservoir increases oil capacity for superior heat dissipation and extended wheel travel
  • Patented digressive valving instantly reacts to changing surface conditions for a stable, controlled ride
  • Vehicle-specific valving — tuned for the exact year, make, and model application
  • 360-degree swivel banjo hose fitting for a clean, low-profile installation
  • Zinc-plated damper body for long-term corrosion resistance and durability
  • Reservoir mounts included — all necessary washers, bushings, and nuts included in the box
  • Factory shock mounting hardware is reused for straightforward installation
  • Optional billet aluminum reservoir clamp available separately for a more compact look

Each B8 5160 shock is individually valved and tuned for its specific application, accounting for factors such as load, towing, and tire pressure to deliver optimal ride quality on and off the road. The result is a shock absorber that improves both daily drivability and the durability needed to handle the harshest off-road environments.

Products specifications

Fits

2020-2026 Jeep Gladiator

Collapsed Length (in)

16.83

Extended Length (mm)

721.7

Extended Length (in)

28.41

Boot Included

Black Bellows

Adjustable Damping

Non-Adjustable

Upper Mount Type

Eye 14.1mm

Series

B8 5160

Billet Reservoir Clamp Included

Yes

Collapsed Length (MM)

427.5

Lower Mount Type

Eye 14.1mm

Finish

Zinc Plated

Internal Design

Monotube

Body Design

Smooth Body (Non-Coilover)

Spring Seat Included

No

Body Diameter (ID)

46mm

Reservoir

Yes
