Bilstein 25-187649 B8 5160 Remote Reservoir Shock Absorber

(2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 2000-2006 BMW X5 4.4i)

Manufacturer

Part Number

25-187649
Sale Price

$199.42

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

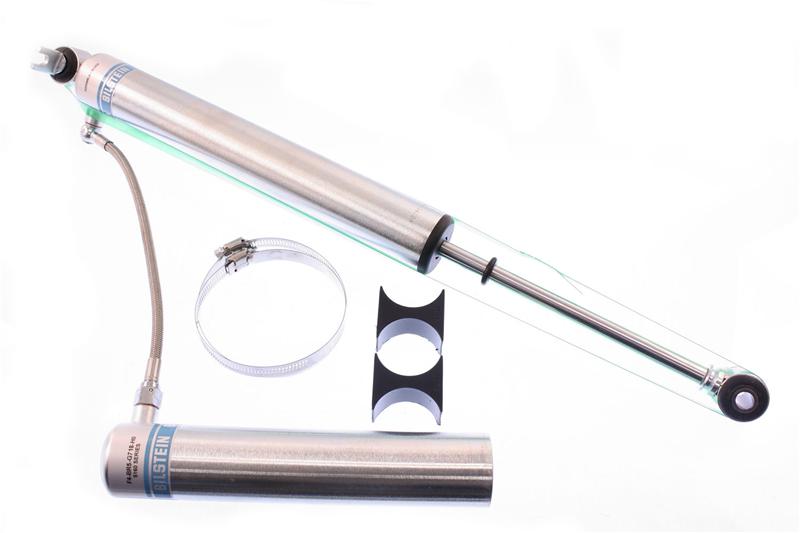

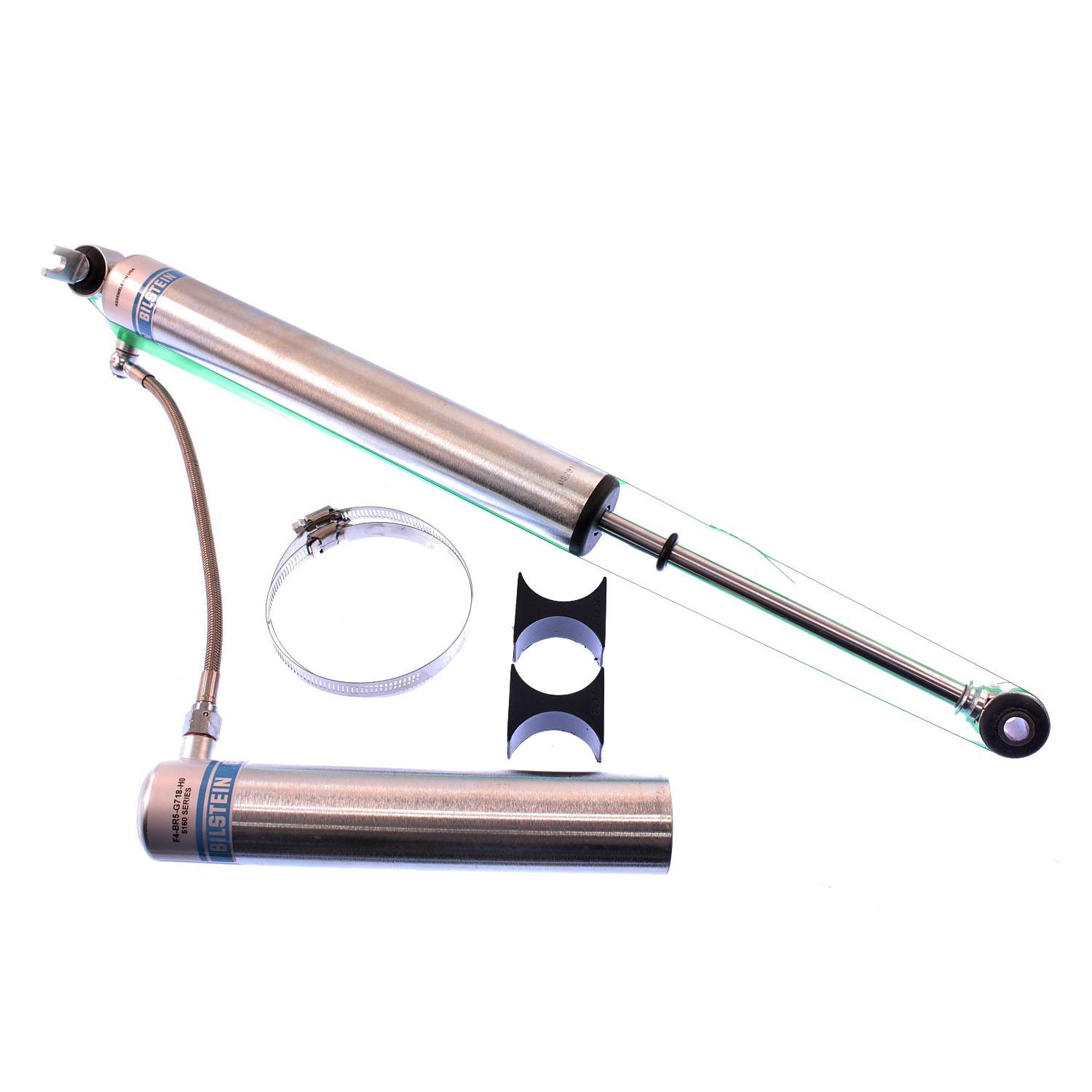

The Bilstein B8 5160 is a remote reservoir monotube shock absorber engineered as a direct-fit performance upgrade for lifted trucks and SUVs. Built with race-derived technology, the 5160 delivers superior damping control over traditional shocks, making it an ideal choice for serious off-road use without sacrificing on-road composure.

The external remote reservoir dramatically increases oil capacity for enhanced heat dissipation, reducing fade during repeated hard cycling on the trail. Combined with a 46mm monotube gas-charged body machined from premium alloy, the B8 5160 maintains consistent, fade-free performance even under the most demanding conditions.

Key Features:

  • 46mm monotube design for consistent, fade-free performance in all conditions
  • Remote reservoir increases shock oil capacity for greater heat dissipation and extended wheel travel
  • Velocity-sensitive digressive valving tuned specifically for each vehicle application — reacts instantly to changing terrain
  • 360-degree swivel banjo hose fitting provides a clean, low-profile reservoir hose connection
  • Zinc-plated body for long-term corrosion resistance and durability
  • Reservoir mounting hardware included in the box for straightforward installation
  • Upper mount: Bar Pin | Lower mount: Eye 12.1mm
  • Collapsed length: 16.12 in. | Extended length: 27.42 in. | Travel: 11.30 in.

The Bilstein B8 5160 is valved and tuned for the specific year, make, and model of your vehicle, accounting for real-world variables such as loaded vs. unloaded use and towing. The result is a direct bolt-on shock that brings race-level suspension performance to your lifted truck or SUV, whether navigating rugged off-road terrain or cruising on the highway.

Products specifications

Fits

2007-2017 Jeep Wrangler; 2018 Jeep Wrangler JK; 2000-2006 BMW X5 4.4i

*Collapsed Length (IN)

16.12

*Collapsed Length (MM)

409.5

*Extended Length (IN)

27.42

*Extended Length (MM)

696.5

Series

5160 Series

Billet Reservoir Clamp Included

No

Body Diameter (ID)

46mm

Optional Reservoir Clamp

11-176015

Lower Mount Type

Eye 12.1mm

Internal Design

Monotube

Series

B8 5160

Adjustable Damping

Non-Adjustable

Reservoir

Yes

Boot Included

No

Body Design

Smooth Body (Non-Coilover)

Upper Mount Type

Bar Pin

Finish

Zinc Plated
