MSD 8610 Flying Magnet Crank Trigger Kit - Small Block Chevy - 7 in.

(GMC G2500 1979-95, Yukon 1992-95, K1500 1979-95, C1500 1979-95, K2500 1979-95, Jimmy 1975-91, C3500 1979-95, K2500 Suburban 1979-95 + 127 more models)

Manufacturer

Part Number

8610
Sale Price

$519.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The MSD 8610 Flying Magnet Crank Trigger Kit is one of the most precise ignition triggering solutions available for Small Block Chevy engines equipped with a 7-inch harmonic balancer. Unlike conventional crank trigger systems that rely on steel studs and a magnetic pickup — which can be falsely triggered by stray bolts, debris, or engine vibration — the MSD Flying Magnet design flips the principle entirely.

Four powerful magnets are permanently embedded in a billet aluminum trigger wheel. As the crankshaft rotates, those magnets pass by a stationary non-magnetic pickup, generating a clean, reliable trigger signal every time. Because the pickup itself is non-magnetic, it cannot be fooled by ferrous debris or extraneous metal in the engine bay, virtually eliminating false triggers and the power loss or engine damage they can cause.

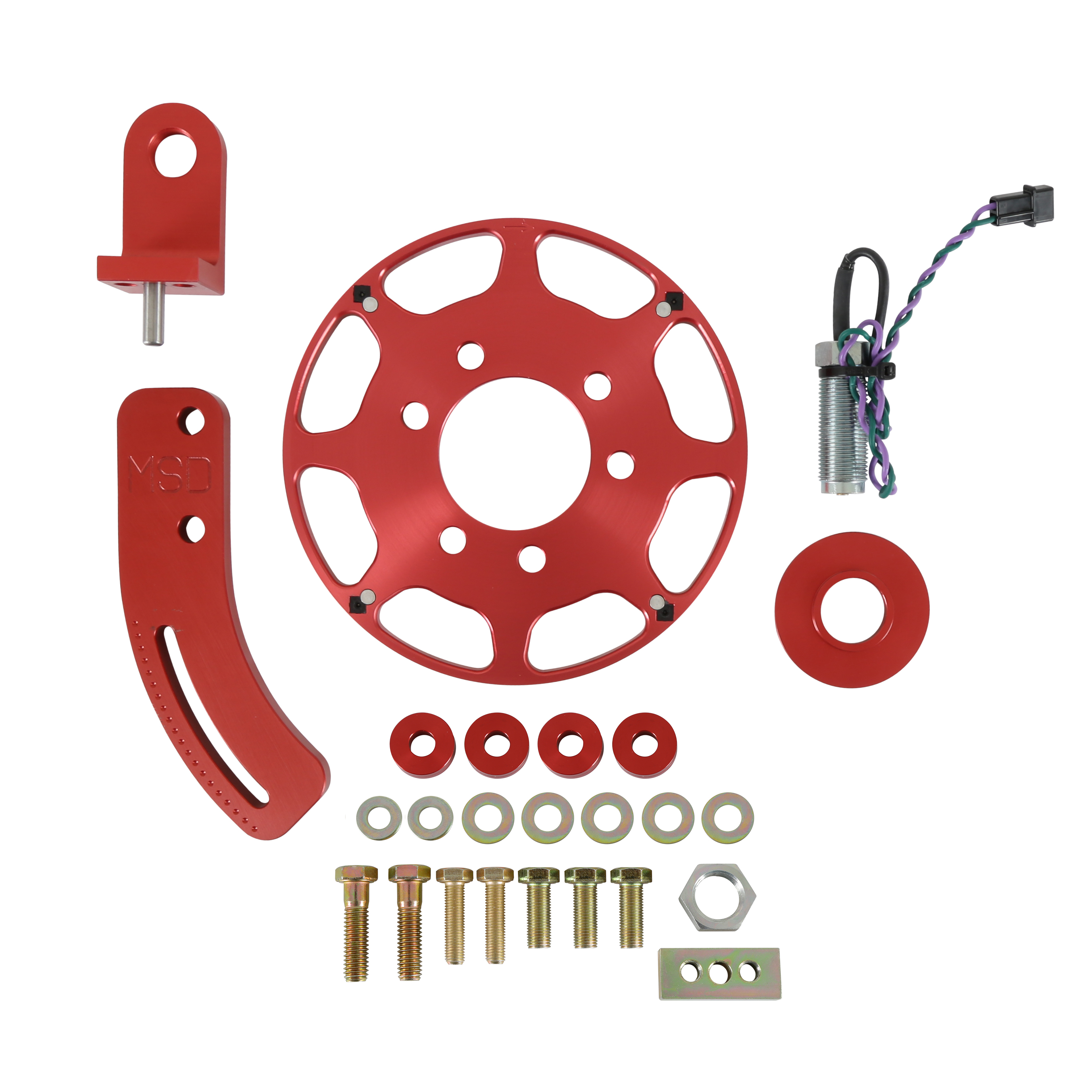

Kit Contents & Hardware:

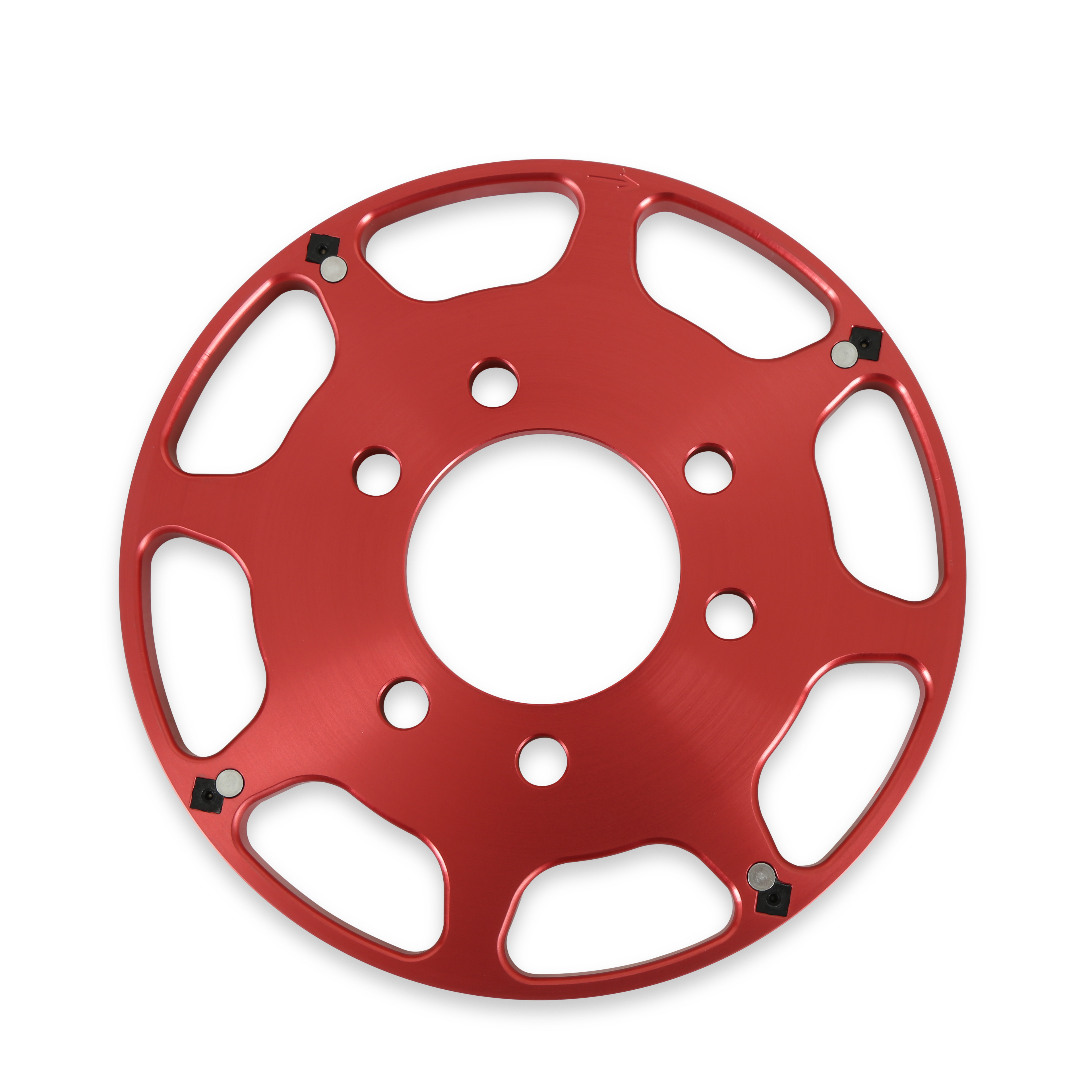

  • 7-inch diameter red anodized billet aluminum trigger wheel with four embedded magnets

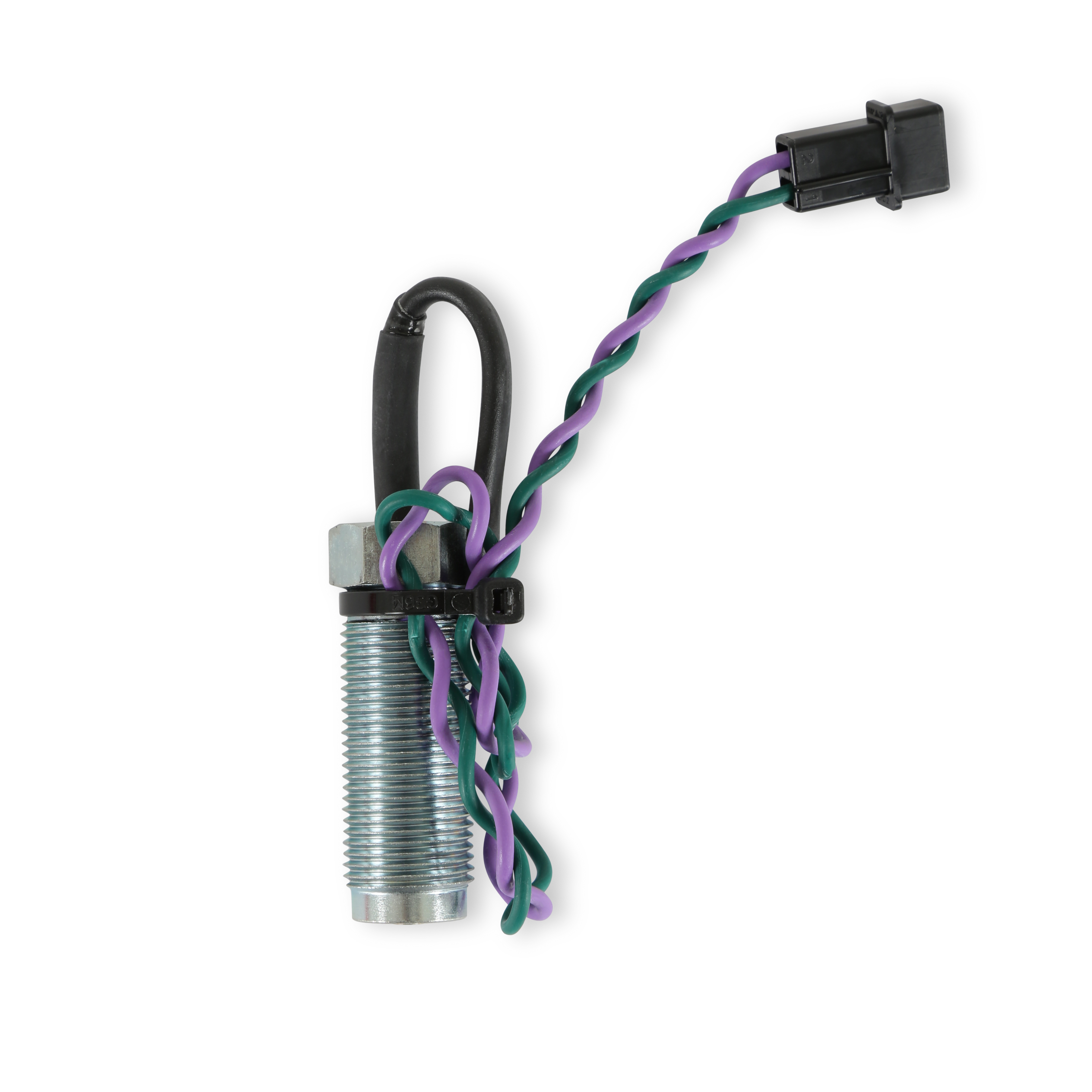

  • Non-magnetic pickup sensor (3/4 in. diameter)

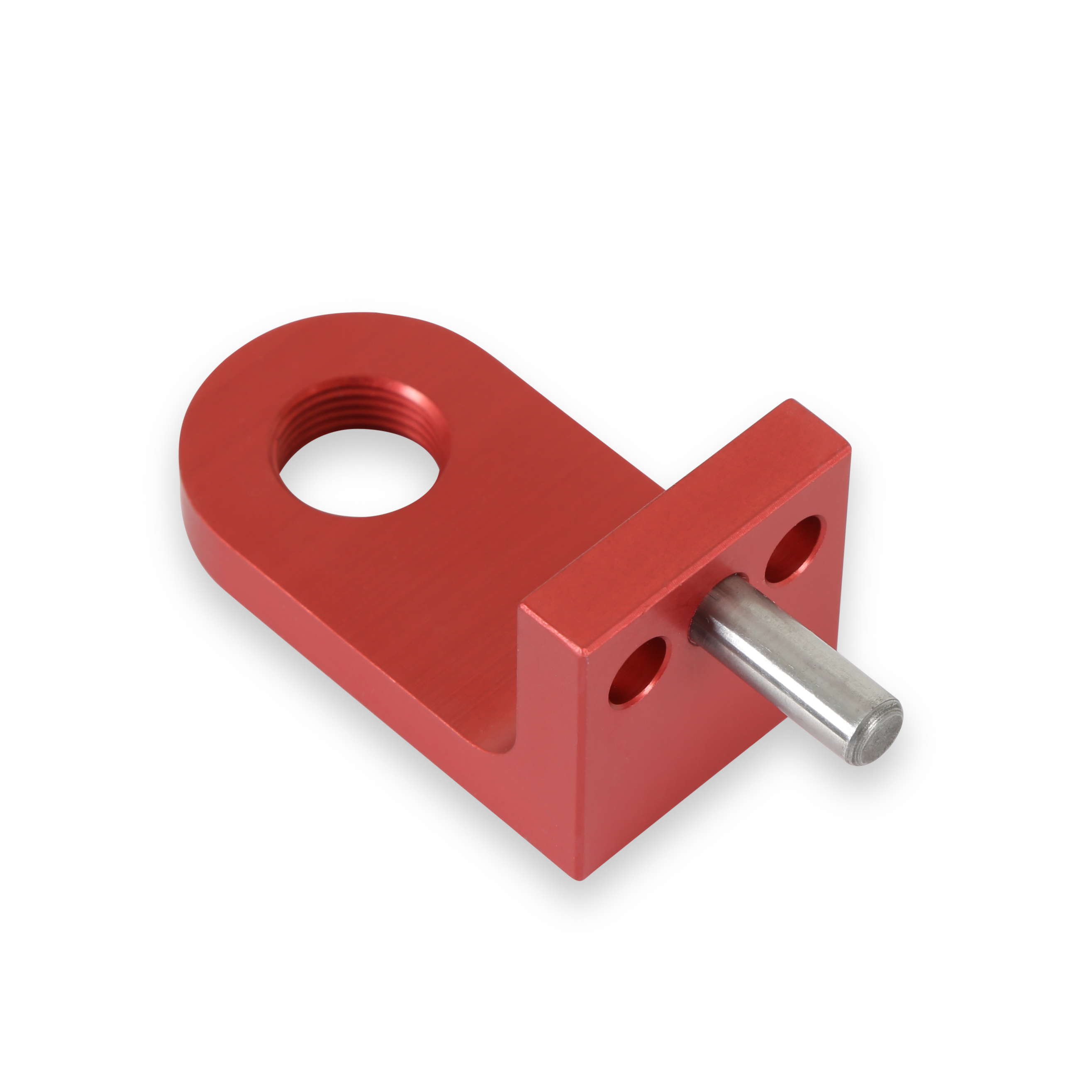

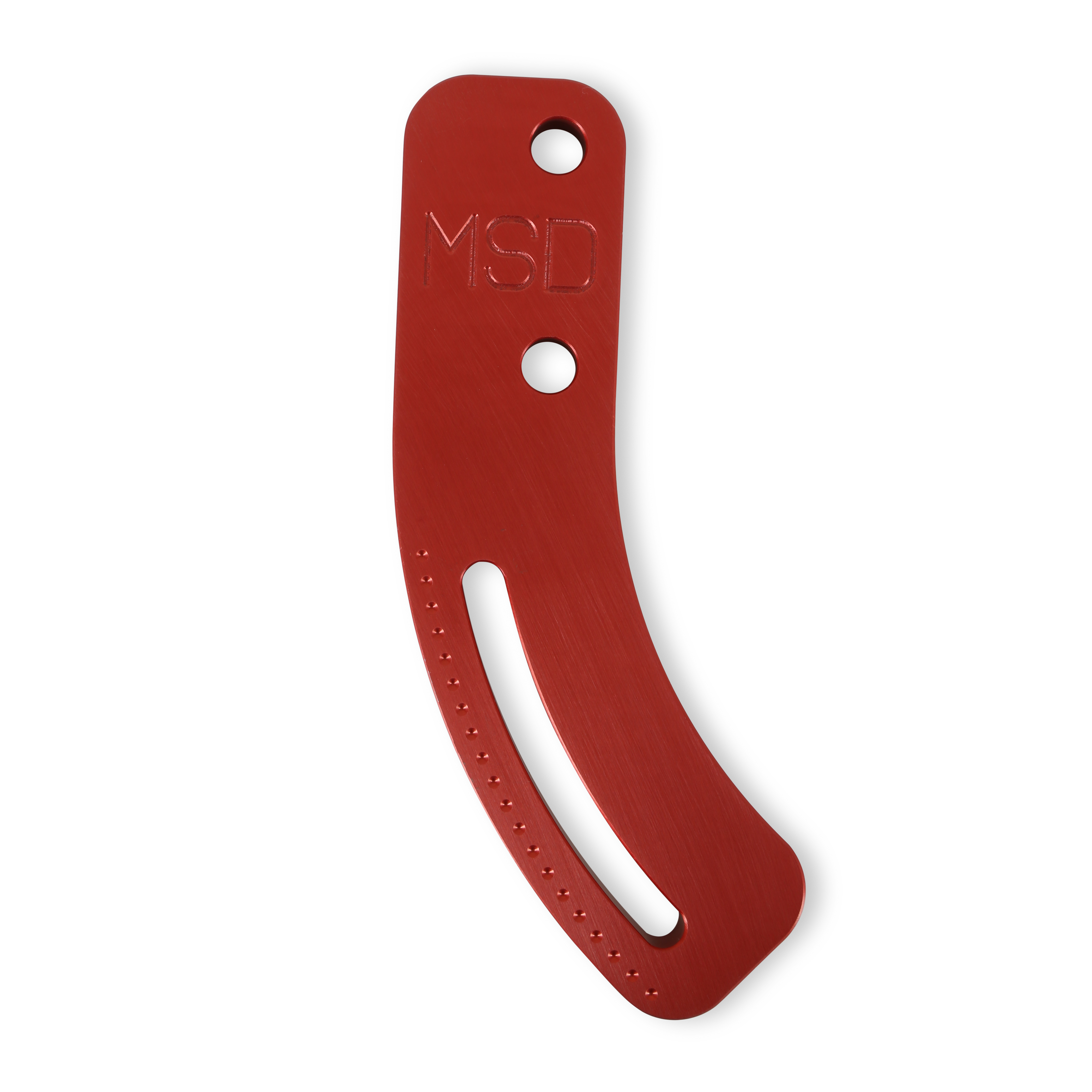

  • Two-piece CNC-machined red anodized aluminum mounting bracket
  • Slotted bracket design for a wide range of timing adjustments

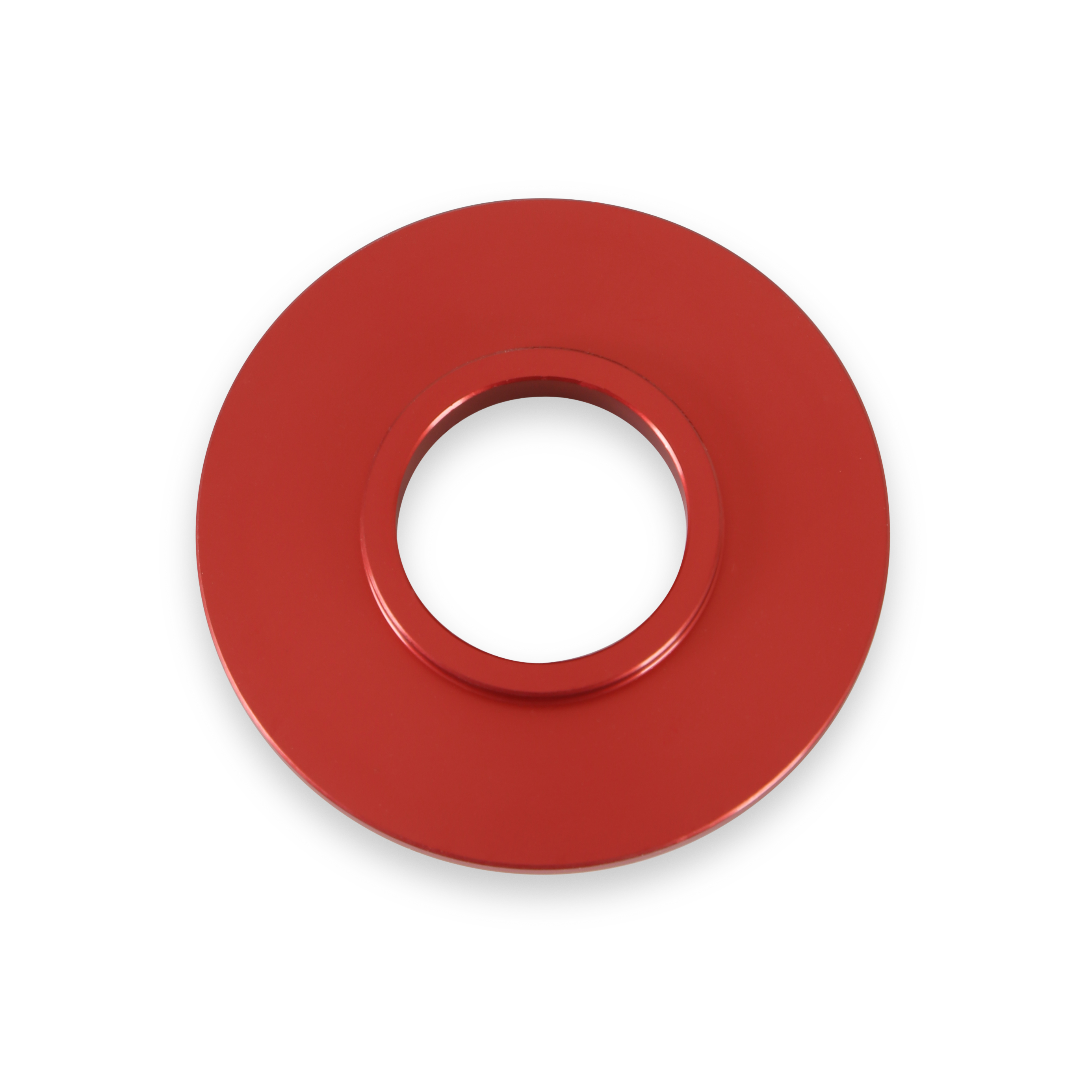

  • Spacers for use with standard motor mounts or 0.25 in. motor plate configurations

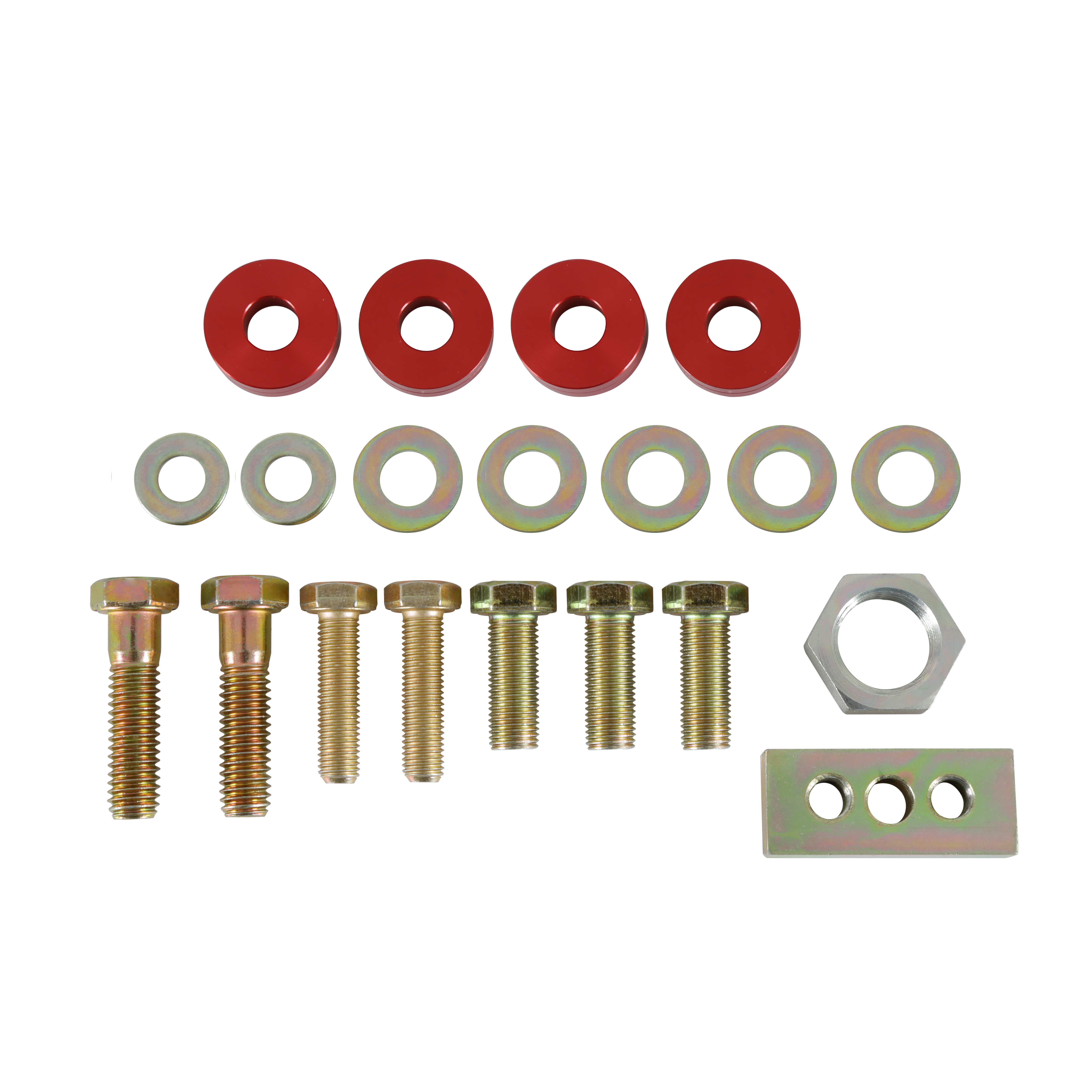

  • All necessary mounting hardware included

Key Specifications:

  • Trigger Wheel Diameter: 7 inches
  • Trigger Wheel Width: 3/8 in. (0.375 in.)
  • Sensor Dimensions: 3/4 in. x 2-1/4 in.
  • Finish: Red anodized aluminum
  • 4X trigger pattern

The two-piece mounting bracket is designed to mount on either the passenger side or driver's side of the engine in most applications. The system is compatible with MSD 6, 7, and 8 Series Ignitions and all MSD Timing Accessories. For racing and off-road use only — not legal for use on emissions-controlled street vehicles.

Products specifications

Fits

GMC G2500 1979-95, Yukon 1992-95, K1500 1979-95, C1500 1979-95, K2500 1979-95, Jimmy 1975-91, C3500 1979-95, K2500 Suburban 1979-95, K3500 1979-95, C15/C1500 Pickup 1979-83, C2500 1979-95, K1500 Suburban 1979-95 + 123 more models

Diameter (in.)

7

Color

Red
