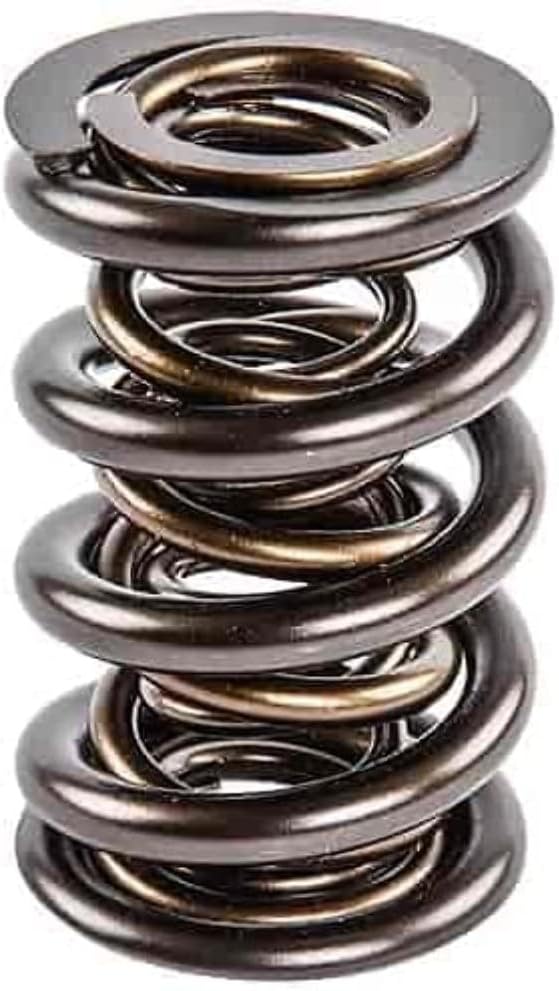

Manley 221450-16 NexTek Drag Race Triple Valve Springs 1.677" O.D. 770 lbs/in Set of 16

Manufacturer

Part Number

221450-16
Black Friday Price

$980.50

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 221450-16 NexTek Drag Race valve springs are purpose-built for high-performance racing engines demanding extreme valve train stability and durability. These springs are manufactured from super-clean, high-tensile chrome silicon steel and are shot-peened to MIL specs for maximum fatigue life. Ideal for Fuel and Alcohol classes, Pro Stock, Competition, Super Stock, Super Gas and Mountain Motor applications.

Key Specifications:

  • Configuration: Triple spring design (no damper)
  • Outside Diameter: 1.677 inches
  • Inside Diameter: 0.632 inches
  • Spring Rate: 770 lbs/in
  • Installed Pressure: 370 lbs @ 2.200 inches
  • Open Pressure: 1140 lbs @ 1.200 inches
  • Coil Bind Height: 1.142 inches
  • Maximum Valve Lift: 1.000 inch
  • Weight: 193 grams per spring
  • Quantity: Set of 16

Advanced Engineering Features:

  • Proprietary multi-step heat-treating minimizes load loss and features computer-aided modeling to minimize valve bounce and valve gear separation
  • Smaller diameter and lightweight design allows engines to rev higher faster, with extended tip thickness designed to eliminate overload breakage
  • Spring inside diameter is chamfered for retainer clearance
  • Resists degradation of spring pressure in the later stages of a race, critical in oval track racing where valve train is abused for extended periods

The NexTek series represents state-of-the-art valve spring technology developed for top-level engine builders who demand uncompromising quality and performance. These springs have been extensively tested on the Spintron, dyno, and race track, including blown nitro engines, and proven highly effective across drag race, oval track, and street applications.

Products specifications

Coated

No

Coil Bind Height (in)

1.142 in.

Damper Spring Included

No

Inside Diameter of Inner Spring (in)

0.632 in.

Number of Springs Per Valve

Triple

Outside Diameter of Outer Spring (in)

1.677 in.

Quantity

Sold as a set of 16.

Spring Rate (lbs/in)

770 lbs./in.

Valve Spring Style

Standard

Engine Type

ICE

Title

Manley Valve Spring, SPRING-1.677 TRIPLE

Product Type

Engine Valve Spring

Valve Spring Series

NexTek? Series

Valve Spring Type

Triple

Valve Spring Material

Chrome Silicon

Valve Spring Outer Diameter

1.677

Valve Spring Coil Bind Height

1.142

Valve Spring Quantity

16

Average Gram Weight

193

Installed Pressure and Height

370 @ 2.200

Open Pressure and Height

1140 @ 1.200

Valve Lift - Maximum

1.000

Valve Spring Inner Diameter

0.632

Valve Spring Rate

770
