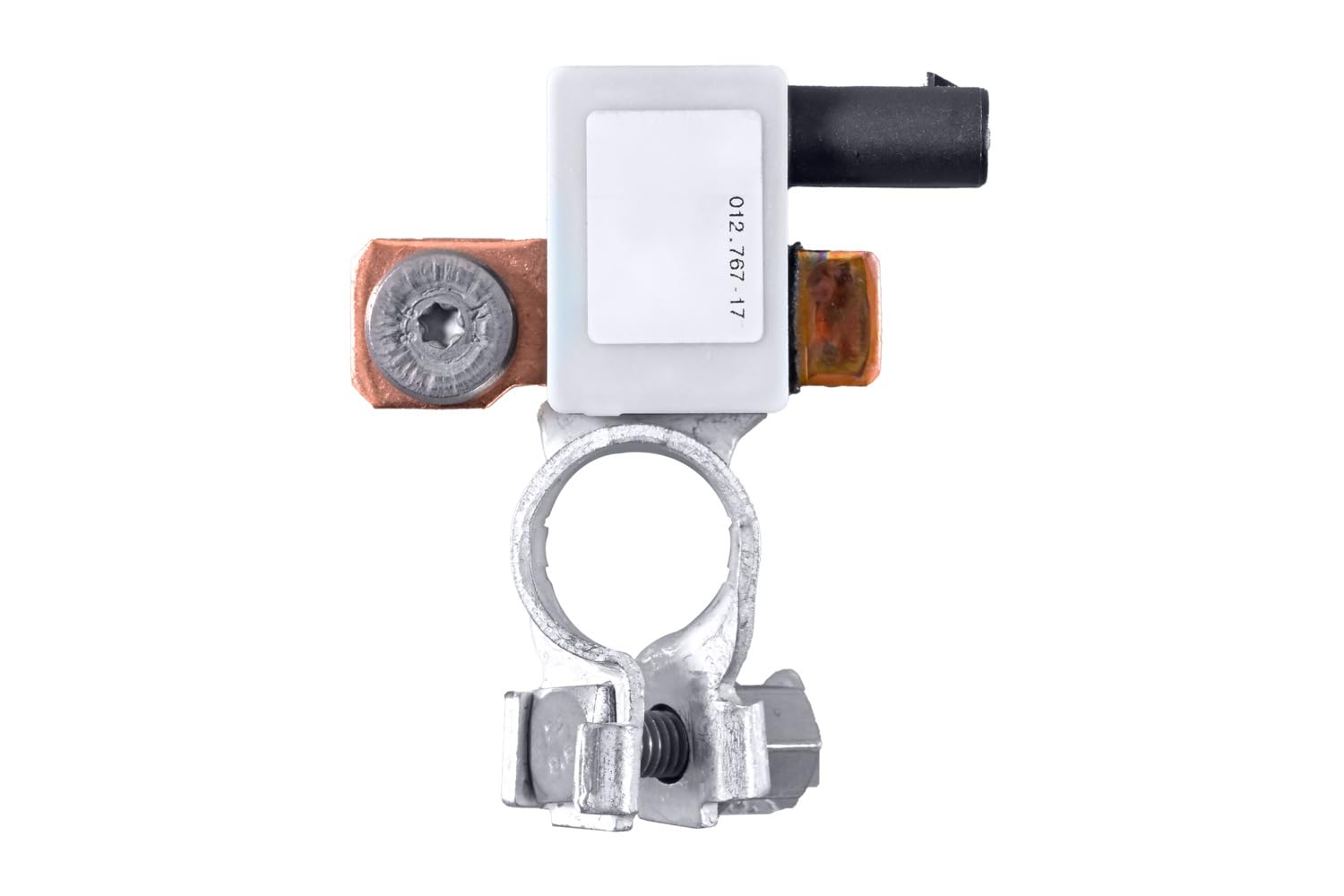

Hella 012767171 Intelligent Battery Sensor IBS - 12V

The Hella 012767171 Intelligent Battery Sensor (IBS) is a precision 12-volt battery monitoring sensor designed for direct, vehicle-specific installation. Also referenced by Hella part number 6PK 012 767-171, this compact sensor continuously tracks key battery parameters to support the vehicle's energy management system and help prevent unexpected electrical failures.

The IBS measures three critical battery variables — voltage, current, and temperature — in real time. From these measurements, the sensor calculates and reports the battery's State of Charge (SOC), State of Health (SOH), and State of Function (SOF), giving the vehicle's control unit everything it needs to intelligently manage charging and electrical load behavior.

Key Features:

• Real-Time Monitoring: Continuously tracks battery voltage, current, and temperature for accurate, up-to-the-moment battery health data
• SOC / SOH / SOF Reporting: Algorithmically determines state of charge, state of health, and expected starting capability
• LIN Bus Communication: Transmits battery condition data to the vehicle's ECU via the LIN communication protocol
• Fault Detection: Provides early warning of a weak or deteriorating battery before failure occurs
• Energy Efficiency: Enables the energy management system to optimize charging behavior and extend battery life
• Durable Construction: Built to withstand extreme temperatures and harsh underhood conditions
• Vehicle-Specific Design: Engineered for direct 1:1 OEM replacement; compact form factor installs even in tight battery compartments
• Compatible Battery Types: Suitable for use with starter, gel, and AGM batteries

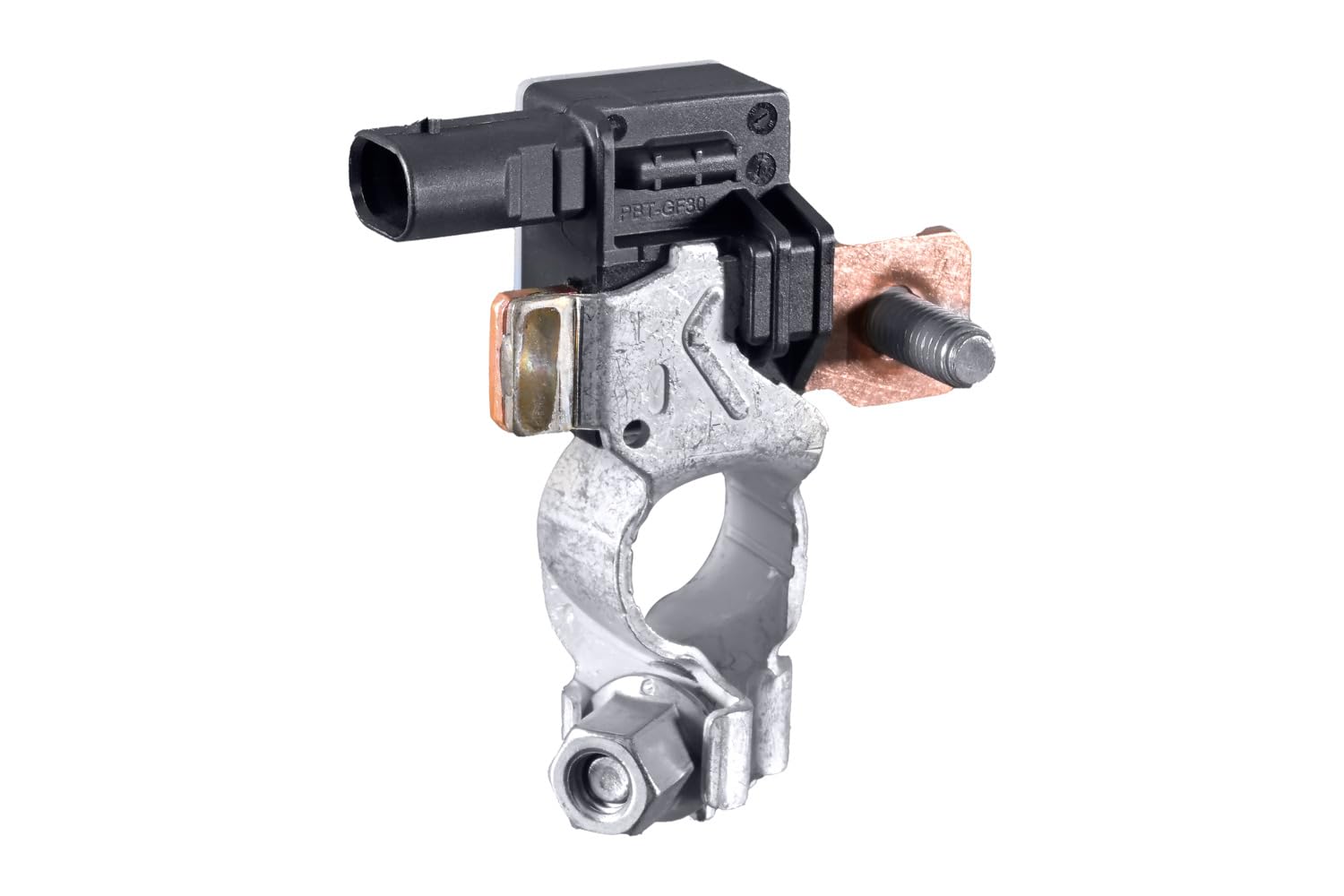

The Hella IBS mounts to the battery's negative terminal, with its integrated shunt serving as the current measurement resistor in the vehicle's load path. The sensor draws its supply voltage — also used as the voltage measurement reference — from a connection to the positive battery pole. With a measured accuracy of ±2%, a voltage measuring range of 10–16V, and an upper temperature rating of 257°F (125°C), this sensor delivers OEM-grade precision in an aftermarket replacement package.
