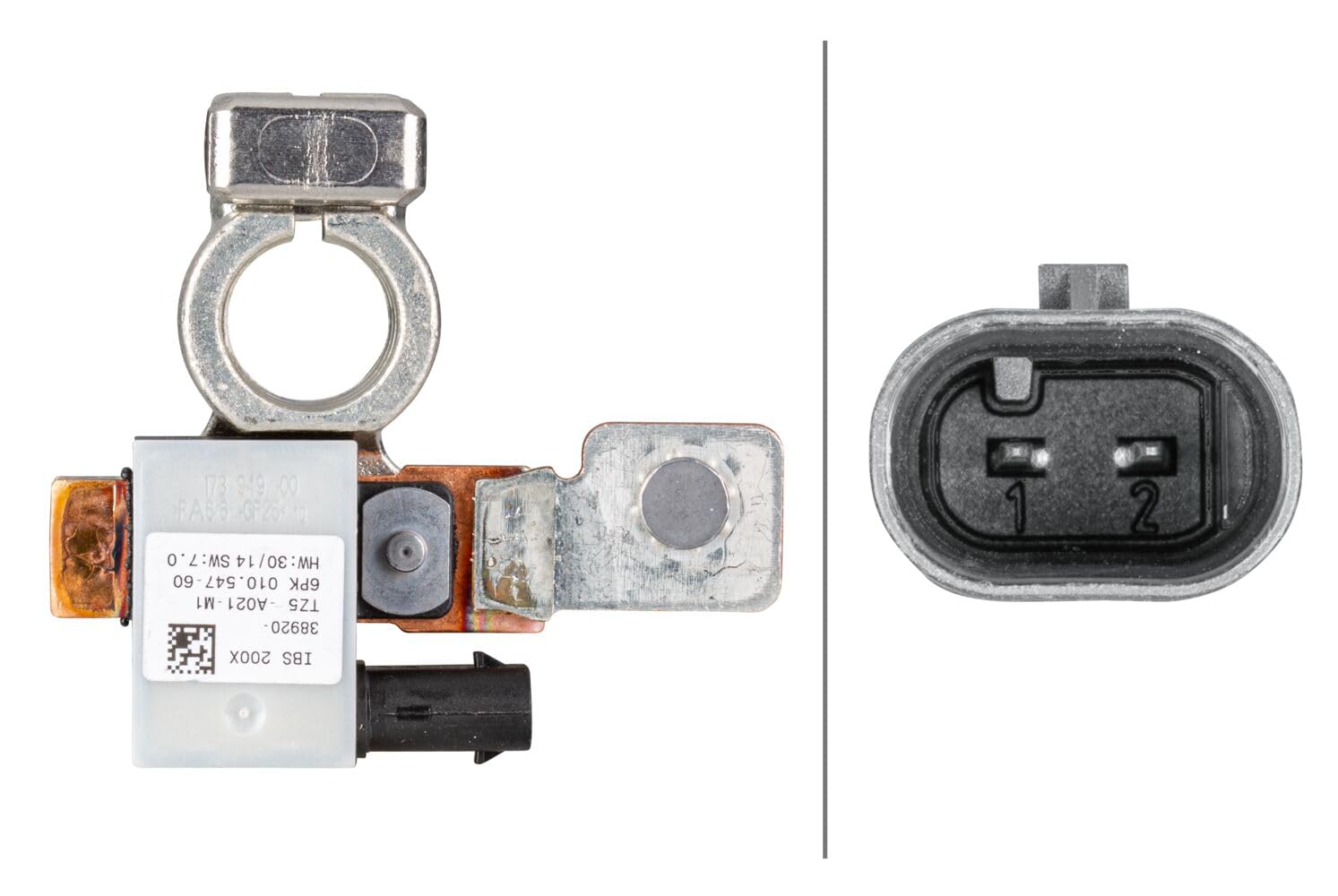

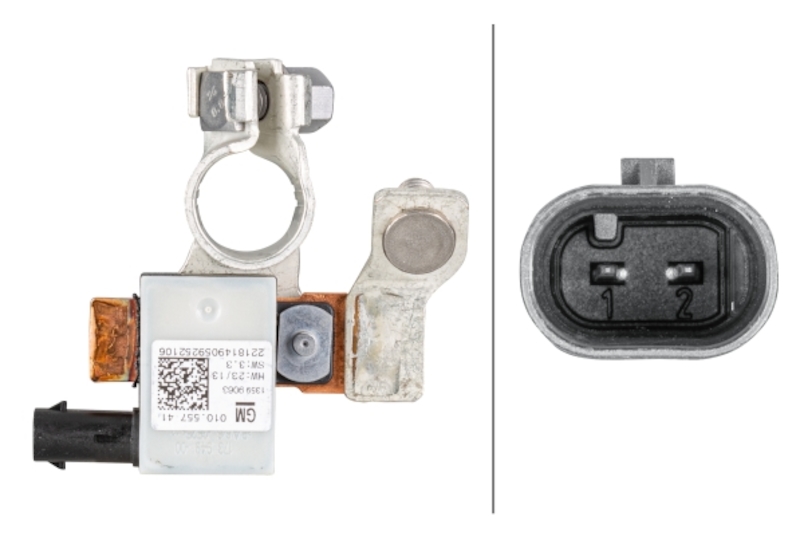

Hella 010557481 Intelligent Battery Sensor IBS - 12V

The Hella 010557481 Intelligent Battery Sensor (IBS) is a precision mechatronic component designed to provide real-time monitoring and advanced energy management for modern vehicle electrical systems. This sensor mounts directly onto the negative battery terminal and continuously measures critical battery parameters including voltage, current, and temperature to optimize charging system performance and prevent unexpected battery failures.

Key Features:

• Measures battery voltage, current, and temperature in real-time
• Calculates State-of-Charge (SOC), State-of-Health (SOH), and State-of-Function (SOF)
• Essential for proper operation of automatic start-stop systems
• Provides early warning of battery degradation and potential failure
• Communicates with vehicle control modules via LIN bus protocol
• Helps extend battery life by 10-20% through optimized charging strategy
• Designed for 12V electrical systems without cable set included
• Compatible with standard battery designs and terminals

The sensor continuously monitors battery performance and transmits data to the vehicle's Powertrain Control Module (PCM) or Body Control Module (BCM), enabling intelligent alternator control and power management. This advanced monitoring helps reduce CO2 emissions through optimized charging, improves fuel efficiency, and ensures reliable starting capability. The IBS is particularly critical for vehicles equipped with start-stop technology, as it determines whether the battery has sufficient energy for engine restart.
