Install Bay IBR78 Pass-Through Flush Mount USB Socket

The Install Bay IBR78 is a pass-through, flush-mount USB socket designed for seamless integration into your vehicle's dash or any convenient panel location. It supports both data transfer and device charging, making it an ideal upgrade for cars, trucks, boats, and powersports vehicles.

Wired directly to the battery with an internal resettable fused connection, the IBR78 accepts both 12V and 24V input and delivers a 5V / 2.1A charging output to keep any USB-chargeable mobile device powered up. The socket is compatible with any source unit that features a USB input port, extending that connection to a more accessible mounting location.

Key Features:

• Pass-through flush-mount design — mounts in dash panel or custom bracket
• Supports data transfer and 5V / 2.1A charging output
• Accepts 12V and 24V input
• Direct-to-battery wiring with internal resettable fused connection
• 1 USB port with attachable water-resistant cover for all-weather protection
• Compatible with cars, trucks, boats, powersports vehicles, and more

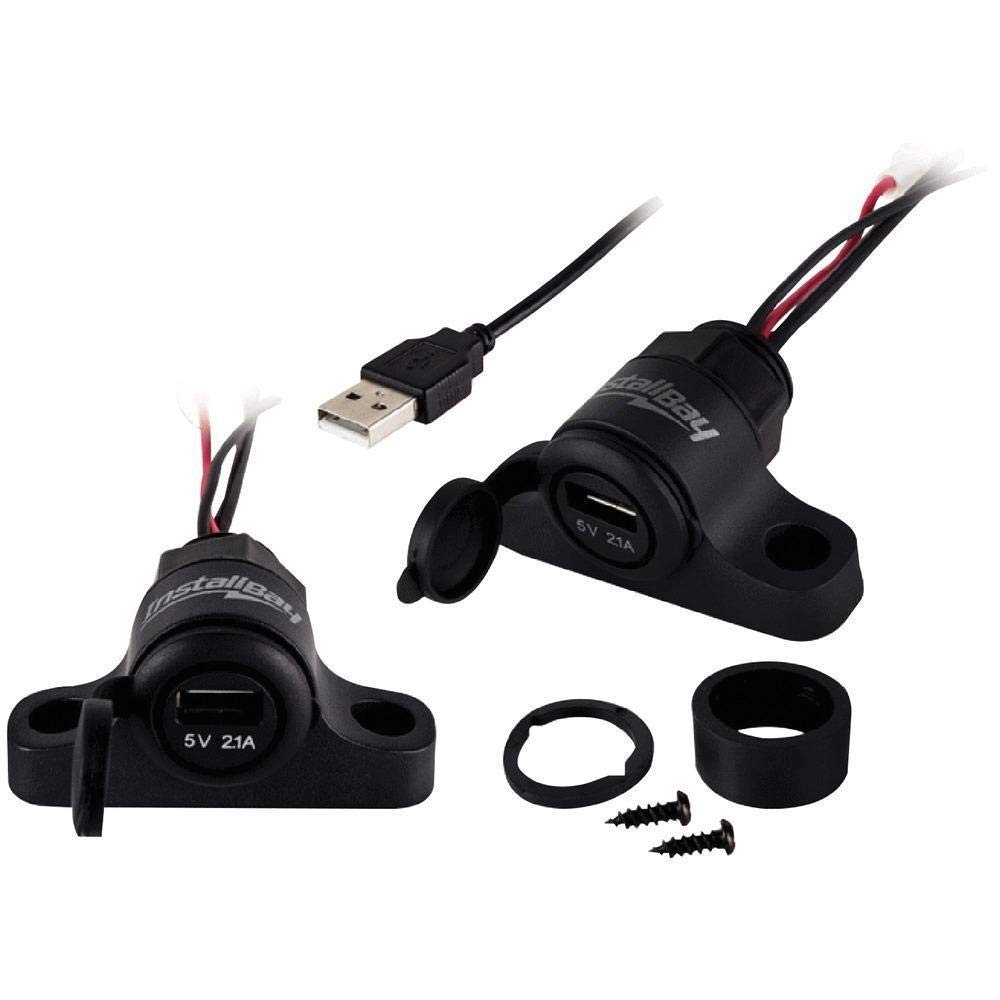

What's Included:

• USB socket extension
• 2 trim rings
• 2 mounting screws
• Water-resistant cap

The IBR78 comes backed by Install Bay's 1-year warranty against defects in materials and workmanship. UPC: 086429343645.
