COMP Cams 26944-1 Dual Valve Spring 1.546 OD 1.950 IH .800 Lift 638 LBS/IN Superfinish Single

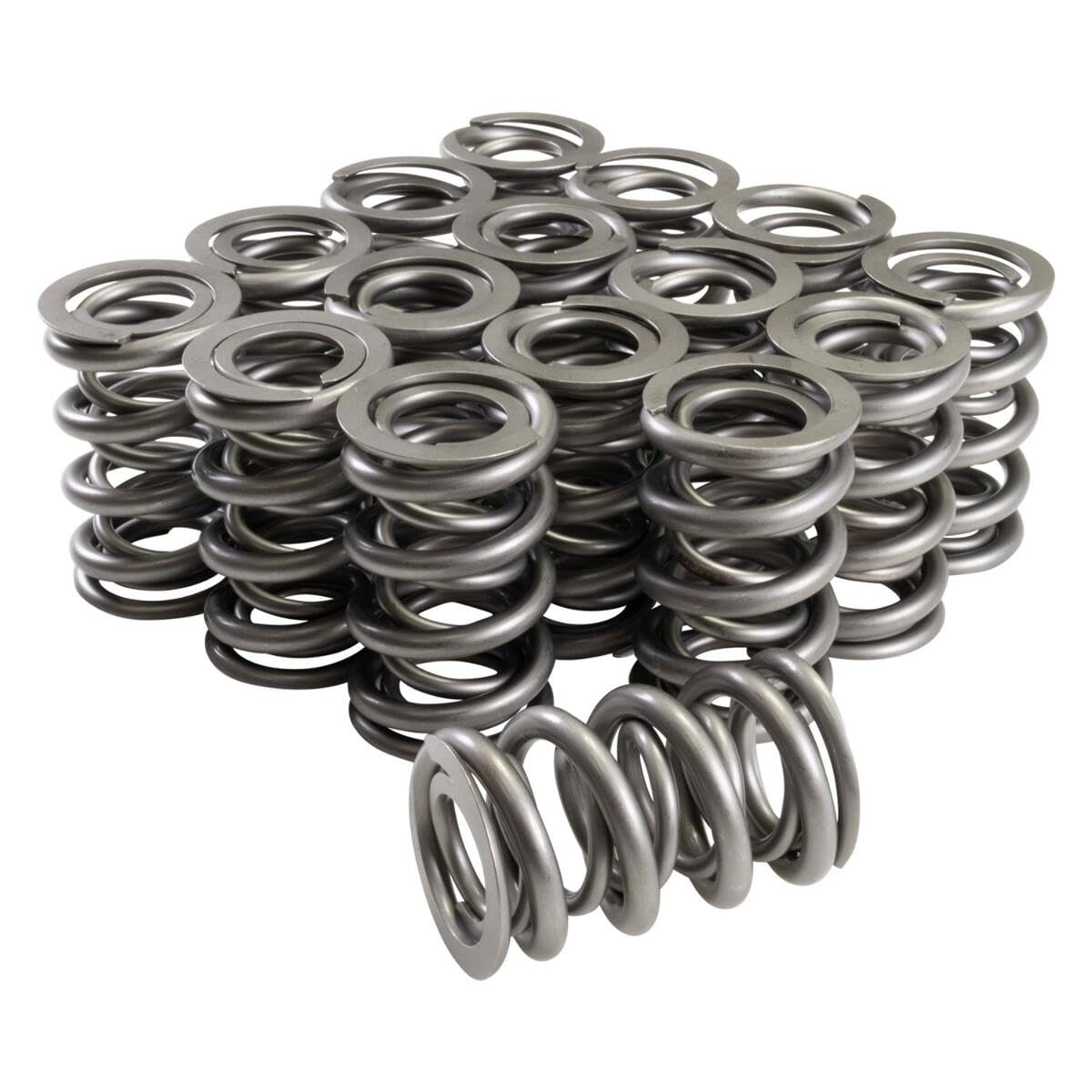

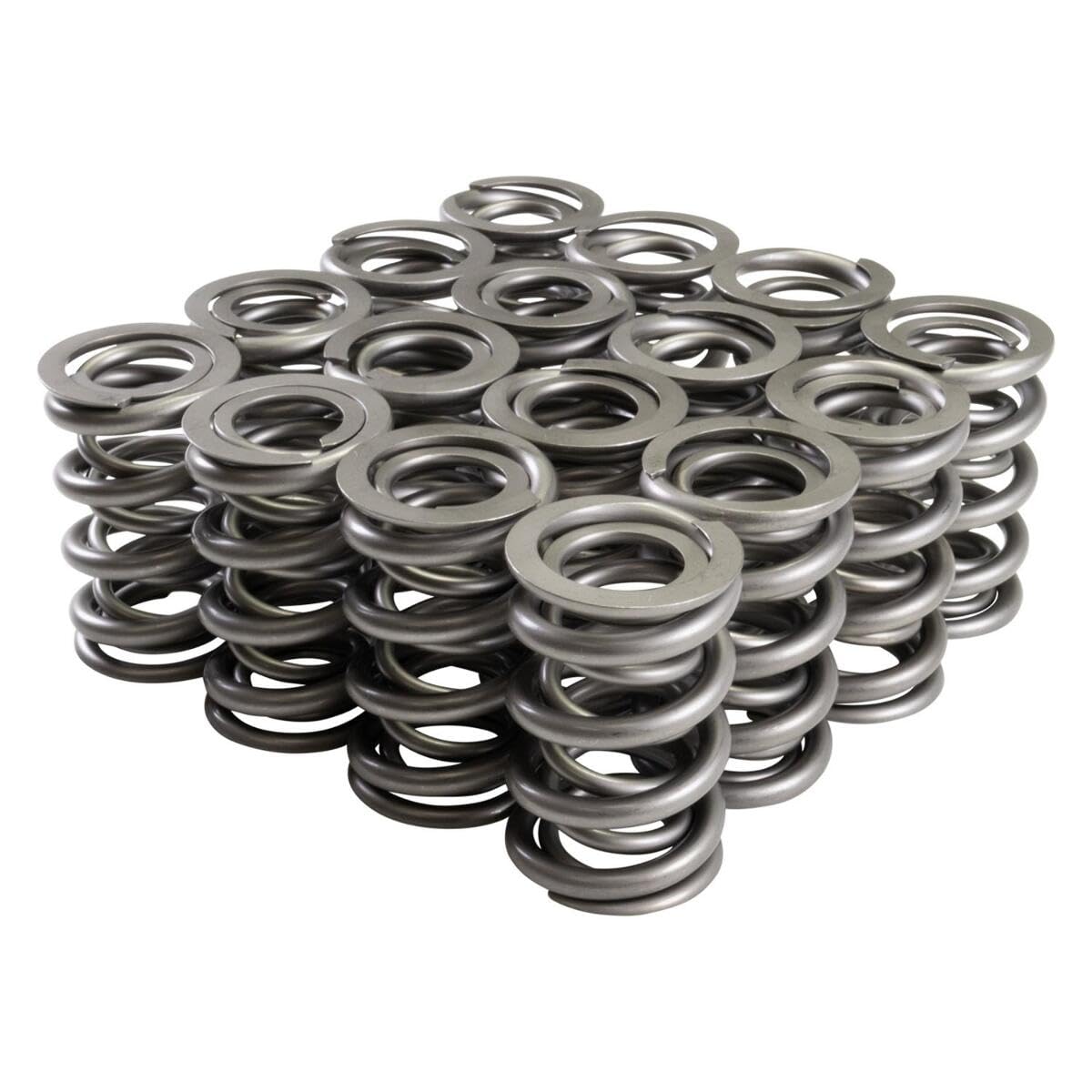

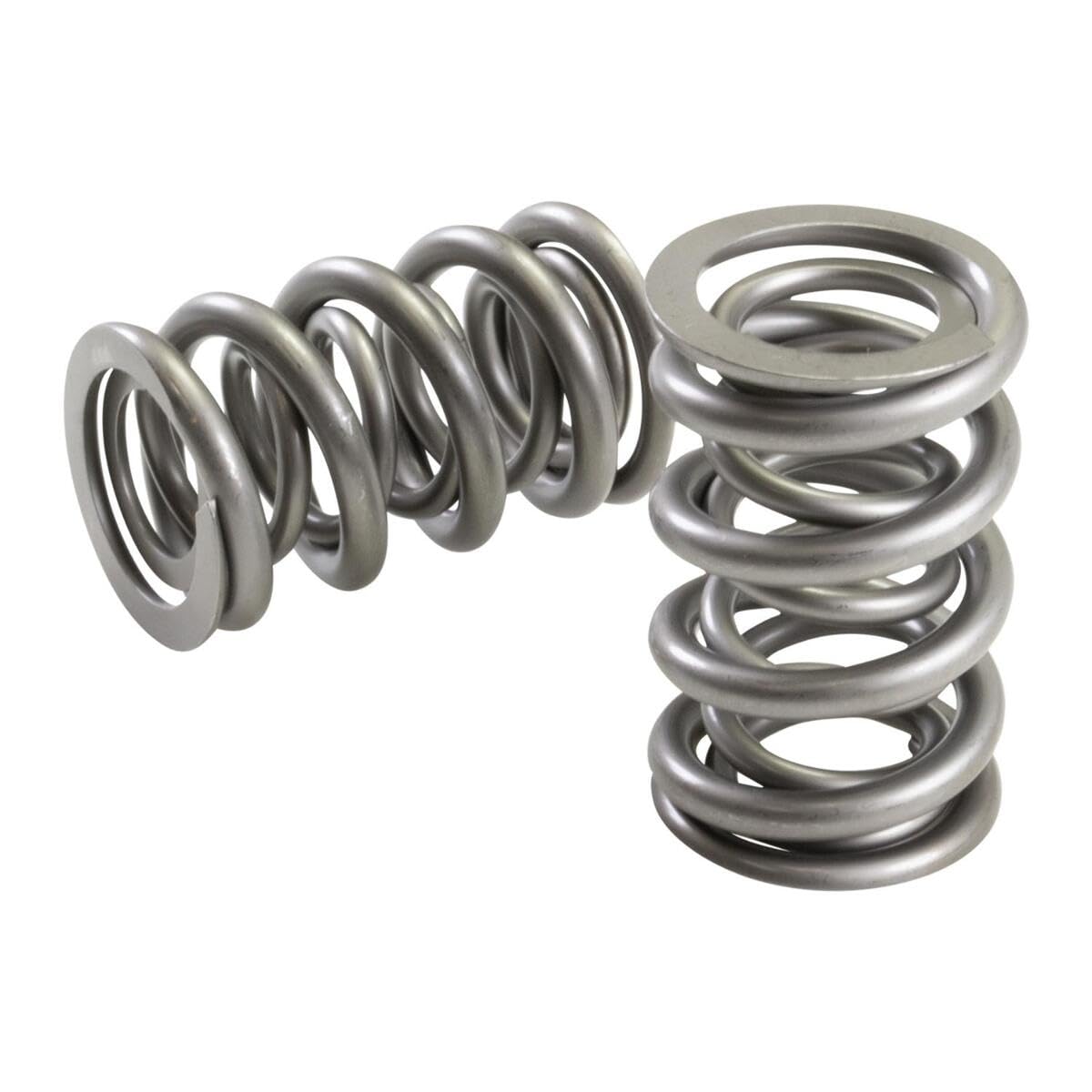

The COMP Cams 26944-1 is a single dual valve spring from the high-performance 26944 series, engineered specifically for endurance-race-oriented Solid Roller camshaft applications. Sold individually (SR – Single), this spring is the same race-proven unit found in the 26944-16 set, giving builders the flexibility to purchase individual replacements or build custom quantities.

Designed for cylinder heads with a spring pocket of 1.546" OD and an installed height near 1.950", the 26944 delivers a 638 lbs/in spring rate and an open load exceeding 750 lbs — making it ideal for high-RPM, high-lift endurance race builds. Maximum valve lift is .800".

Key Features:

• Dual spring design without damper for endurance solid roller cam applications
• 1.546" outer diameter — fits cylinder heads with matching spring pocket
• 1.950" installed height
• 638 lbs/in spring rate with over 750 lbs open load
• .800" maximum valve lift capability
• Superfinish wire processing for superior surface quality, consistency, and long-term durability
• Optimized for newer aggressive lobe profiles targeting higher RPM and higher lift
• Sold as a single spring (SR – Single); order multiples as needed

COMP Cams engineered the 26944 series using premium wire stock and advanced manufacturing techniques, including superfinishing, to deliver exceptional reliability and consistency demanded by today's professional engine builders and endurance racers.
