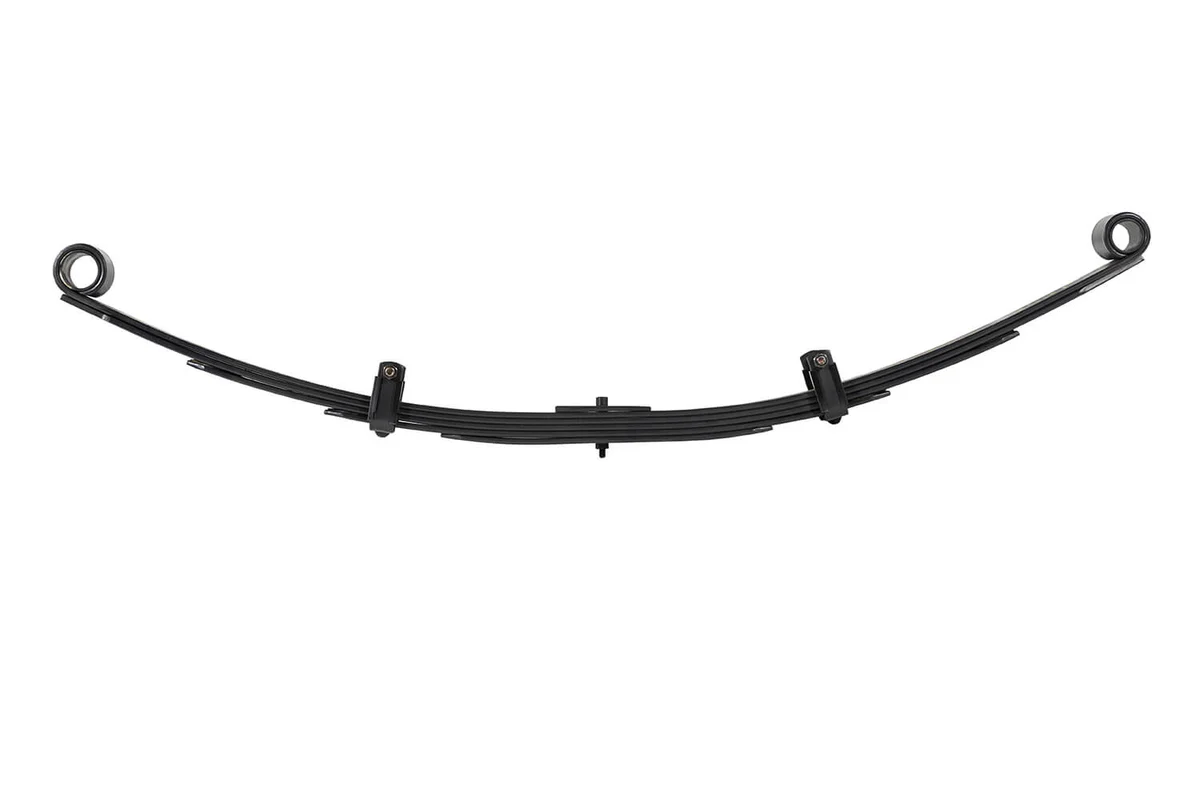

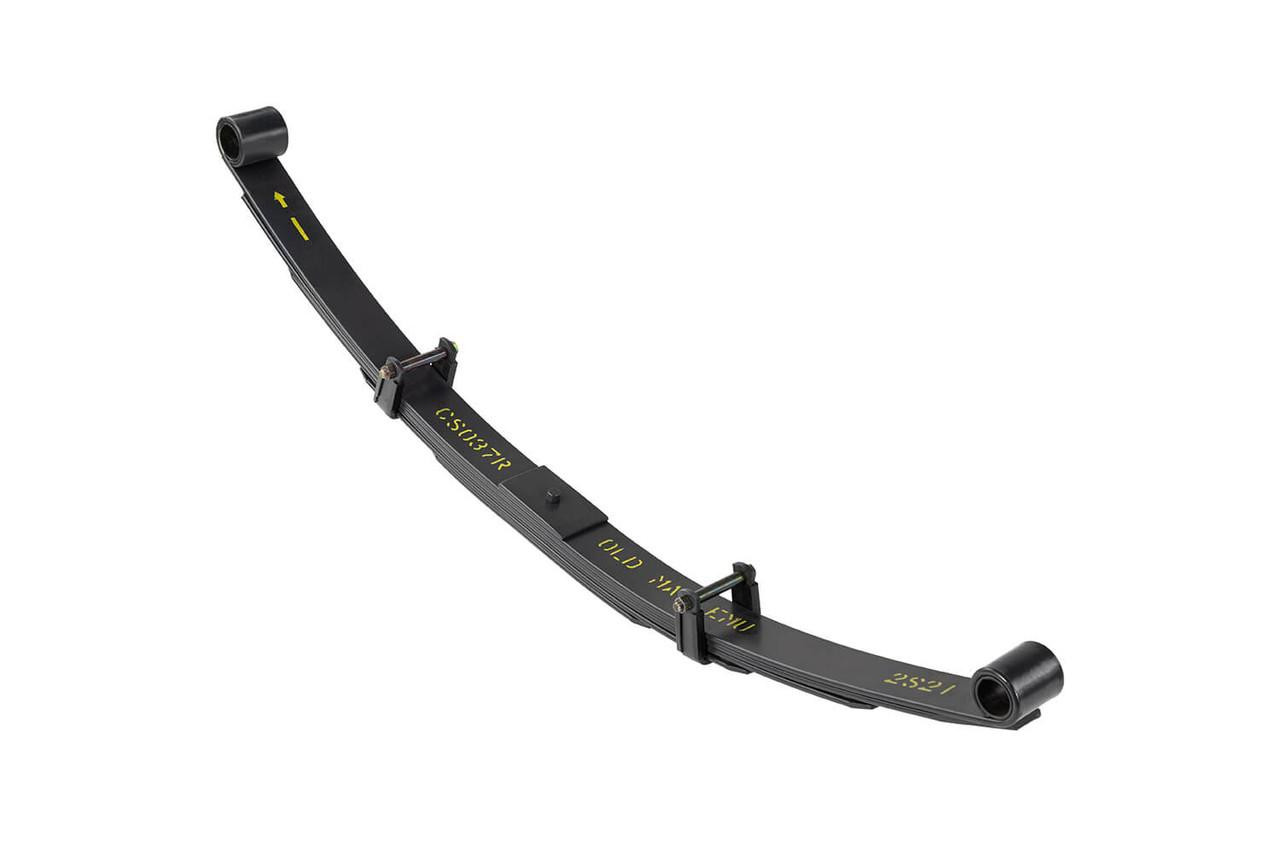

ARB CS037R Old Man Emu Dakar Rear Leaf Spring Light Load

The ARB CS037R is an Old Man Emu Dakar rear leaf spring designed for light load applications. Part of ARB's integrated 4X4 suspension systems, this leaf spring is engineered to provide optimum ride performance across all terrain and operating conditions.

Key Features:

• 5-leaf design with 188 lbf/in spring rate for balanced performance
• Draw-tapered and diamond-cut leaves progressively distribute load over larger surface area, reducing stress and preventing leaf breakage
• Military wrap design provides added safety and durability
• Bolted leaf clamps allow installation of anti-squeak nylon liners
• Re-greasable nylon interleaf anti-friction pads reduce friction at leaf tips
• Fully scragged to reduce the risk of sagging over time
• Load tested to ensure spring meets required specifications
• Shot peened to reduce spring stress and increase spring life
• Two-stage leaf pack for optimum comfort
• Flat axle seat area allows positive, safe axle mount and reduces spring stress
• Graphite coating further reduces friction between spring leaves

Specifications:

• Stack Height: 32.5mm (1.28 inches)
• Number of Leaves: 5
• Eye Diameter: 37.5mm front / 31.5mm rear
• Primary Free Camber: 185mm (7.28 inches)
• Spring Rate: 188 lbf/in
• Material: Steel with black finish

When paired with Old Man Emu 4X4 shock absorbers, this leaf spring delivers vastly improved ride quality, handling, and load carrying capability. The CS037R is specifically designed for light load rear applications and provides approximately 2 inches of lift. Bushings sold separately.
