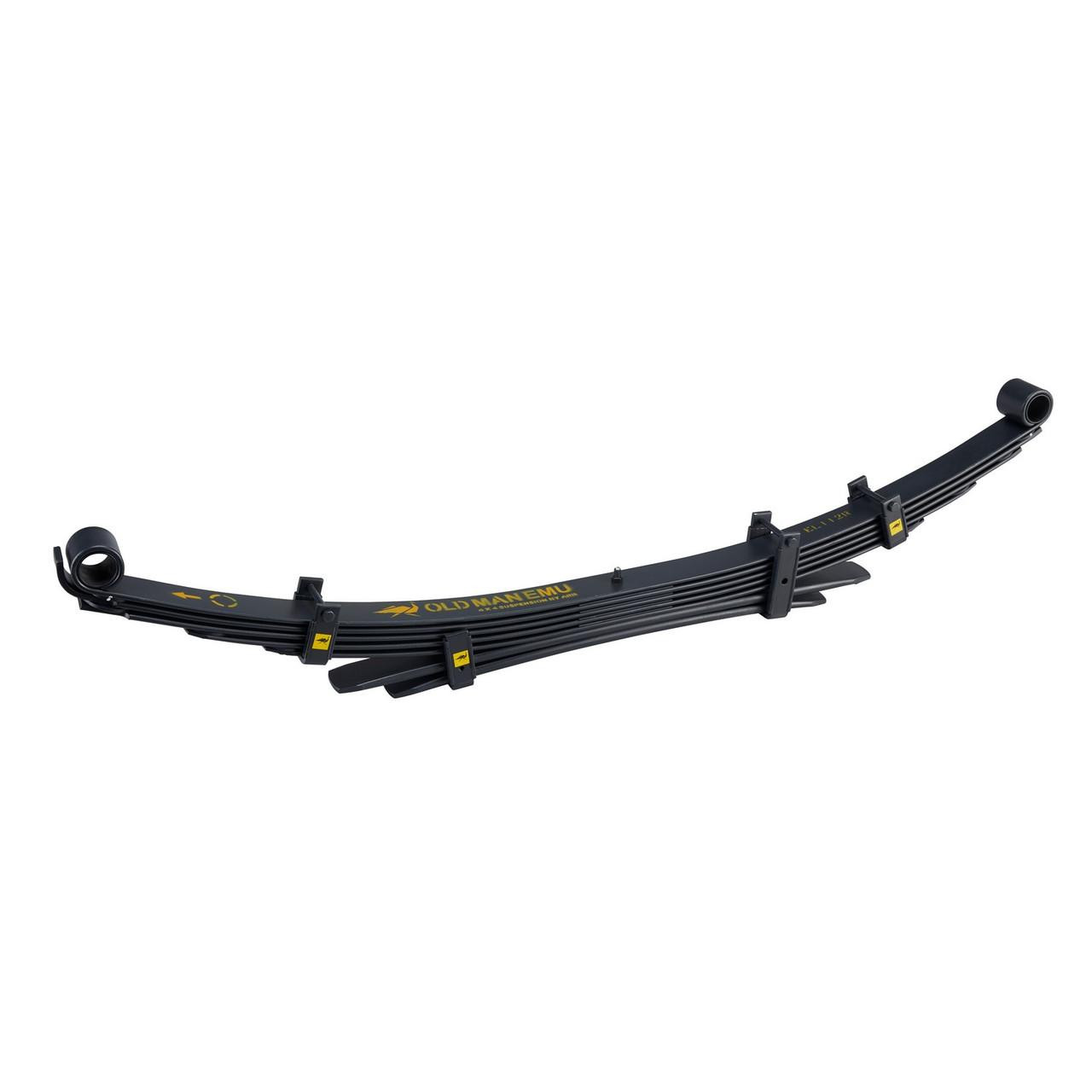

ARB EL112R Old Man Emu Heavy Duty Leaf Spring - Rear 300kg Constant Load

The ARB Old Man Emu EL112R is a heavy-duty rear leaf spring engineered for superior off-road performance and load-carrying capability. Designed for Toyota Tacoma trucks carrying a constant 300kg (660 lbs) rear load, this spring features a 5+2 leaf configuration with draw-tapered and diamond-cut leaves that progressively distribute loads over a larger surface area, reducing stress and increasing ride comfort.

Key Features:

• Heavy-duty constant load rating of 300kg (660 lbs) for overlanding and commercial applications
• Spring rate: 193/506 lbf/in with two-stage leaf pack design for optimum comfort
• Draw-tapered and diamond-cut leaves reduce stress at leaf ends and increase longevity
• Fully scragged and load tested to prevent sagging and ensure specification compliance
• Military wrap design provides added safety in extreme conditions
• Shot peened tension side on all leaves can double spring life
• Bolted leaf clamps allow installation of anti-squeak nylon interleaf liners
• Flat axle seat area for positive, safe mounting and reduced spring stress
• 40mm front and rear eye diameter with 76mm stack height

When paired with Old Man Emu shock absorbers, this leaf spring delivers vastly improved ride quality, handling, and load-carrying capability across all terrain conditions. Designed and manufactured in Australia to exacting standards. Sold individually; bushings and U-bolts not included.
