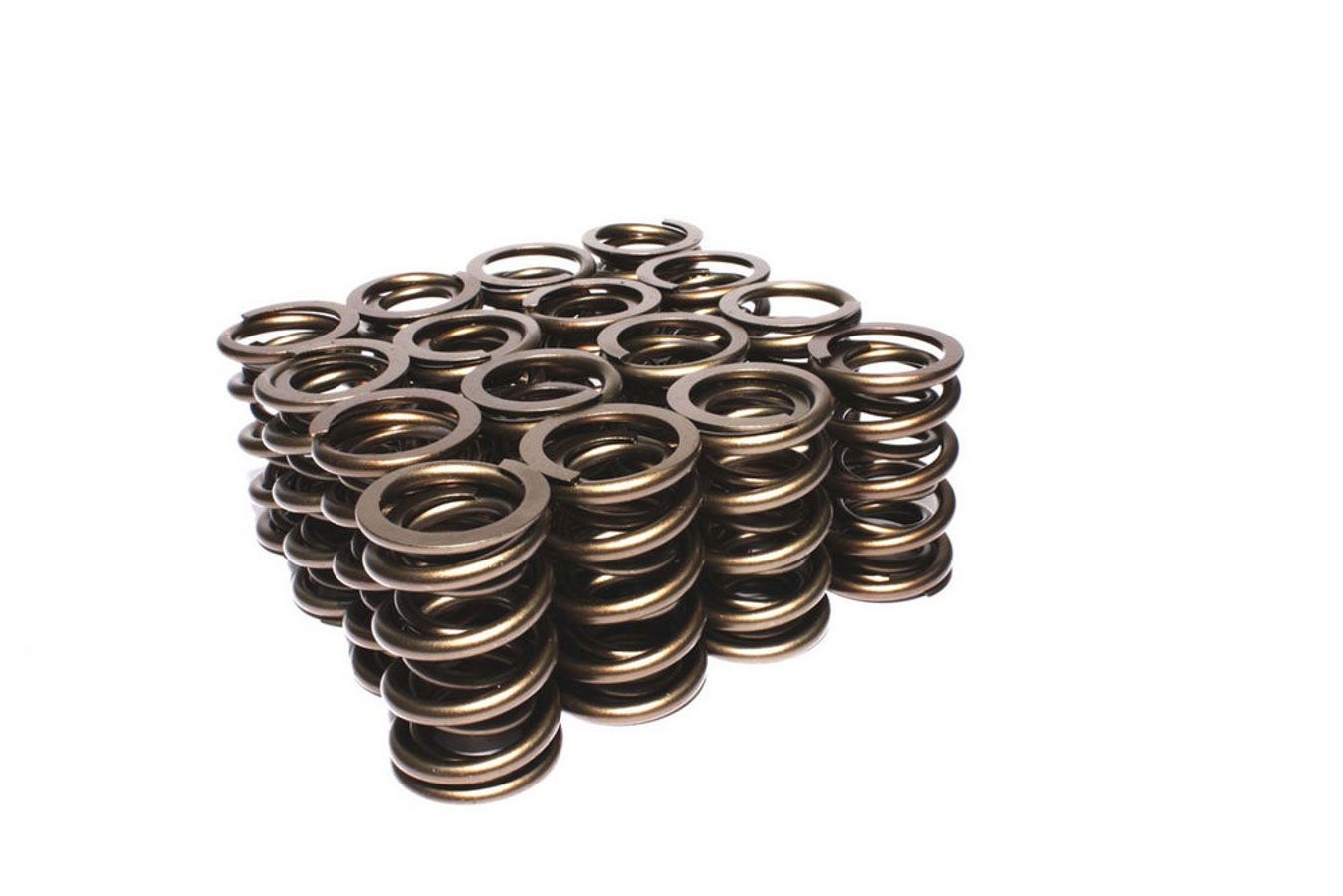

COMP Cams 26943-16 Dual Valve Spring Set 1.560" OD 551 lb/in

The COMP Cams 26943-16 is a high-performance dual valve spring set designed for solid roller camshaft applications. This revised 26943 series spring features superior engineering with a superfinish surface treatment that enhances durability and performance over previous valve spring designs.

Key Specifications:

• Spring configuration: Dual valve spring design
• Outer diameter: 1.560 inches
• Installed height: 1.900 inches
• Maximum valve lift: 0.740 inches
• Spring rate: 550-551 lbs/in
• Coil bind: 1.100 inches
• Surface finish: Superfinish treatment

Performance Features:

• Dual spring design provides superior strength for high-lift applications
• Short coil bind dimension allows for aggressive cam profiles
• Superfinished surface reduces friction and extends spring life
• Manufactured from high-quality spring steel with extensive quality control testing
• Delivers consistent valve train stability at high RPM

This valve spring set replaces COMP Cams part numbers 919 and 943, offering improved performance characteristics. The dual spring configuration creates a stronger valve spring assembly that can handle the extreme stresses found in solid roller camshaft applications, making it ideal for racing and high-performance street engines.
