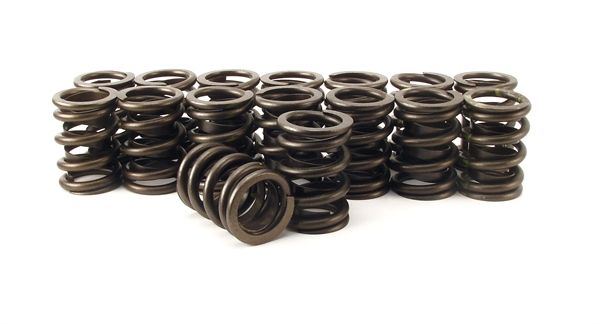

COMP Cams 26911-16 Single Valve Spring with Damper 1.486" OD .650" Lift

The COMP Cams 26911-16 valve spring set is engineered to deliver more lift capacity than the springs it replaced, making it an excellent choice for hydraulic roller camshaft applications with a 1.486" outside diameter spring pocket. This single spring with integrated damper design provides a 410 lb/in spring rate and supports maximum valve lift up to 0.650 inches.

Key Specifications:

• Spring Rate: 410 lb/in
• Outside Diameter: 1.486 inches
• Maximum Valve Lift: 0.650 inches
• Installed Height: 1.85 inches
• Coil Bind Height: 1.14 inches
• Seat Load: 120 lbs @ 1.85 inches
• Open Load: 387 lbs @ 1.2 inches
• Material: Steel construction

This spring replaces COMP Cams part numbers 911-16 and 926-16, offering improved performance for engines requiring precise valve control. COMP Cams valve springs are designed to deliver the correct spring pressure with valves both seated and at maximum lift, and are available in single and dual configurations to match your specific camshaft requirements. The integrated damper helps reduce valve float and maintain consistent valve control at higher RPM ranges, making these springs ideal for performance street and mild racing applications.
