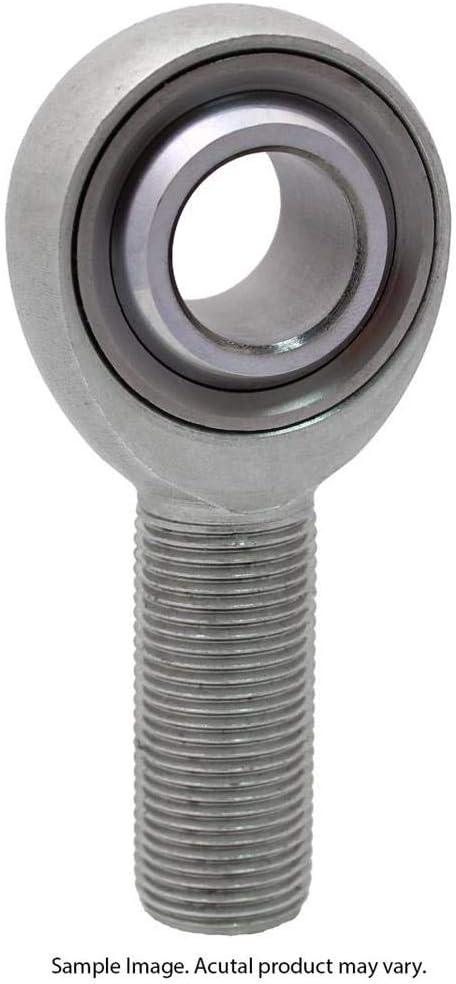

QA1 HML14T HM-T Series 3-Piece Male Rod End 7/8 Bore PTFE Lined

Part of: QA1 Precision Products Rod End

Other options in this family: QA1 Precision Products NFL5 QA1 Precision Products NML4 QA1 Precision Products NML3 QA1 Precision Products KFR6Z QA1 Precision Products HFL6

Manufacturer

Picture for manufacturer QA1 Precision Products

Part Number

HML14T
4 reviews
Sale Price

$49.73

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 HML14T is a precision-engineered three-piece male rod end from the HM-T Series, featuring PTFE (Teflon) lining for reduced friction and maintenance-free operation. This left-hand threaded rod end combines chromoly steel construction with advanced bearing technology for superior performance in suspension linkages, steering systems, and custom fabrication applications.

Three-Piece Construction:

QA1's three-piece design features a ball pressed into a sleeve that is swaged around the ball to create the insert. The insert's outer diameter is then precision-machined and staked into the rod end body, providing better ball-to-race conformity and tighter tolerances compared to two-piece designs.

Key Specifications:

  • Thread Size: 7/8 inch-14 left-hand male threads
  • Bore Diameter: 0.875 inches (7/8 inch)
  • PTFE liner for reduced friction and self-lubricating properties
  • Three-piece chromoly steel construction

Ball Features:

  • 52100 bearing steel construction
  • Heat treated for maximum strength
  • Hard chrome plated surface
  • Precision ground for tight tolerances

Race Features:

  • Low carbon steel construction
  • Corrosion and wear resistant
  • PTFE lined for smooth articulation

Body Features:

  • Chromoly steel construction
  • Heat treated for durability
  • Protective coating for corrosion resistance

The HM-T Series is ideal for applications requiring precision articulation with minimal maintenance. The PTFE lining eliminates the need for regular greasing while providing smooth, consistent movement throughout the rod end's range of motion.

Products specifications

A (+/-0.015)

3.375

Approx Bearing Weight

0.92

B (+0.0015/-0.0005)

0.875

Ball Dia Ref

1.375

C (+0.062/-0.031)

2

D (+/-0.010)

2

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

7

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.875 in.

Rod End Centerline Length

3.375 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.875 in.

Rod End Head Diameter

2.000 in.

Rod End Head Width

0.875 in.

Rod End Material

Chromemoly

Rod End Misalign Angle (degrees)

7 degrees

Rod End Static Load Capacity

45,051 lbs.

Rod End Style

Teflon® lined

Rod End Thread Size

7/8-14 LH in.

T (+/-0.005)

0.765

Thread Length

1.375 in.

Thread Type

Left Hand

Thread UNF-3A

7/8 -14

UTL Radical Static

45501

W (+0.000/-0.005)

0.875

Title

QA1 Suspension Rod End Bearing HML14T

Prop 65

WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
