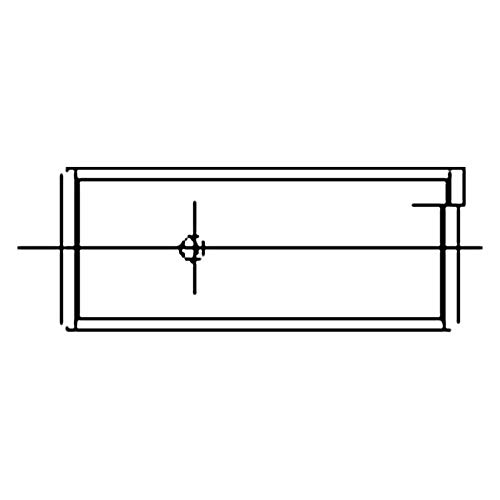

ACL Bearings 4B1946H-.025 Race Series Connecting Rod Bearing Set Oversized - 0.025mm

Manufacturer

Part Number

4B1946H-.025
Black Friday Price

$68.86

Estimated ship date Monday, December 07

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 4B1946H-.025 is a high-performance connecting rod bearing set designed for Honda and Acura B-series engines, including B16A2, B16A3, B17A1, B18A1, B18B1, B20B, and B20Z applications. This oversized bearing set features a 0.025mm (0.001 inch) oversize to accommodate machined crankshafts.

Race Series Performance Features:

  • Tri-metal copper alloy construction provides exceptional strength and superior seizure resistance
  • Hardened steel backing on all rod bearings improves bearing lining support and retention in the housing
  • High-strength overlay plate with reduced thickness delivers improved fatigue properties for high-RPM durability
  • Increased crush design enhances bearing retention through higher radial contact pressure and improves heat dissipation
  • Elimination of flash plating on bearing backs maximizes heat transfer and improves grip in the housing
  • Increased eccentricity compensates for bore distortion at high RPM and assists in forming hydrodynamic oil films
  • Precision manufactured to micron-level tolerances for consistent wall thickness, crush, and clearances

ACL Race Series bearings are trusted by championship-winning engine builders across motorsports disciplines, from drift racing to NASCAR. The H-suffix designation identifies these as Race Series bearings, engineered specifically for high-performance and racing applications where reliability under extreme conditions is critical.

Products specifications

Max Overall Length

0.768"(19.50mm)

Max Std Shaft Size

1.7717"(45.000mm)

Max Std Tunnel Size

1.8907"(48.024mm)

Max Wall at Crown

0.0592"(1.504mm)

Min Std Shaft Size

1.7709"(44.980mm)

Min Std Tunnel Size

1.8898"(48.000mm)

Oil Clearance

Standard

Size

.025
