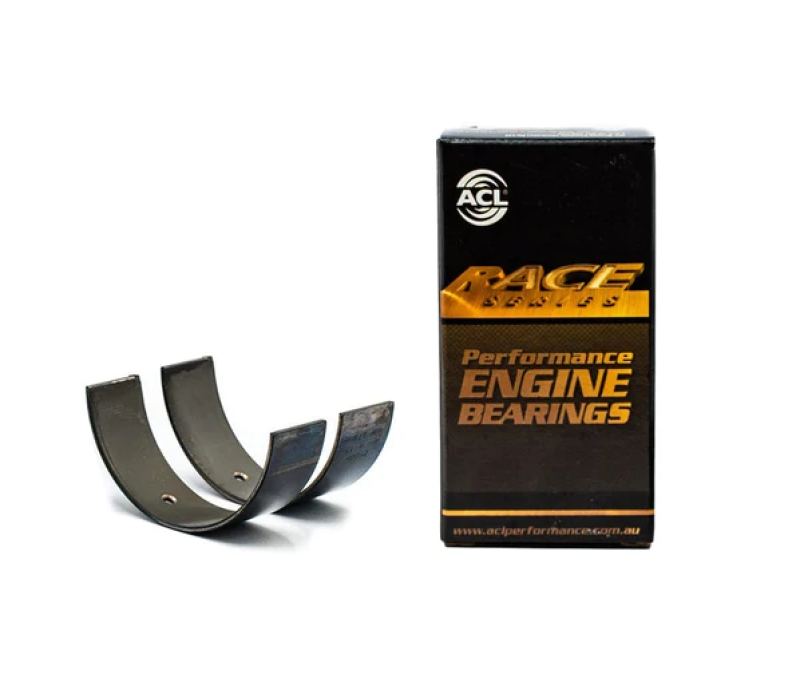

ACL Bearings 3B8532HX-STD Race Series Connecting Rod Bearing Set Toyota - G16E-GTS

Manufacturer

Part Number

3B8532HX-STD
Black Friday Price

$118.90

3 left at this price

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The ACL Bearings 3B8532HX-STD is a high-performance Race Series connecting rod bearing set designed specifically for the Toyota G16E-GTS 1.6L turbocharged inline-3 engine found in the GR Yaris and GR Corolla. These bearings are engineered for tuning and engine upgrades where superior quality and higher bearing capacity are essential compared to standard OEM bearings.

Key Features:

  • Standard (STD) bearing size with F781 bearing material and identical bearing halves
  • HX designation provides 0.0005" extra thickness reduction per bearing half, creating 0.001" additional oil clearance for standard-sized crankshafts
  • High-strength overlay plate with reduced thickness for improved fatigue properties
  • Hardened steel backing on all rod bearings to improve support of the bearing lining and assist with bearing retention in the housing
  • Elimination of flash plating on bearing backs improves heat transfer and maximizes grip between bearings and housing
  • Increased eccentricity to compensate for bore distortion at high RPM and assist in formation of hydrodynamic oil films
  • Manufactured to exacting tolerances with particular attention to wall thickness accuracy for reliable fit and consistent clearances

These high-strength bearings are manufactured by ACL from 3 layers of hardened steel, copper, and nickel, designed to withstand high RPM, temperatures, and loads. ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world, making them ideal for both high-performance street applications and competitive racing builds.

Technical Specifications:

  • Maximum overall length: 17.25mm (0.679")
  • Shaft size range: 47.992mm to 48mm (1.889" to 1.890")
  • Tunnel size range: 51mm to 51.024mm (2.008" to 2.009")
  • Vertical oil clearance range: 0.052mm to 0.107mm (0.002" to 0.004")
  • Wall thickness at crown: 1.483mm (0.058")
  • EAN: 9315726465905
