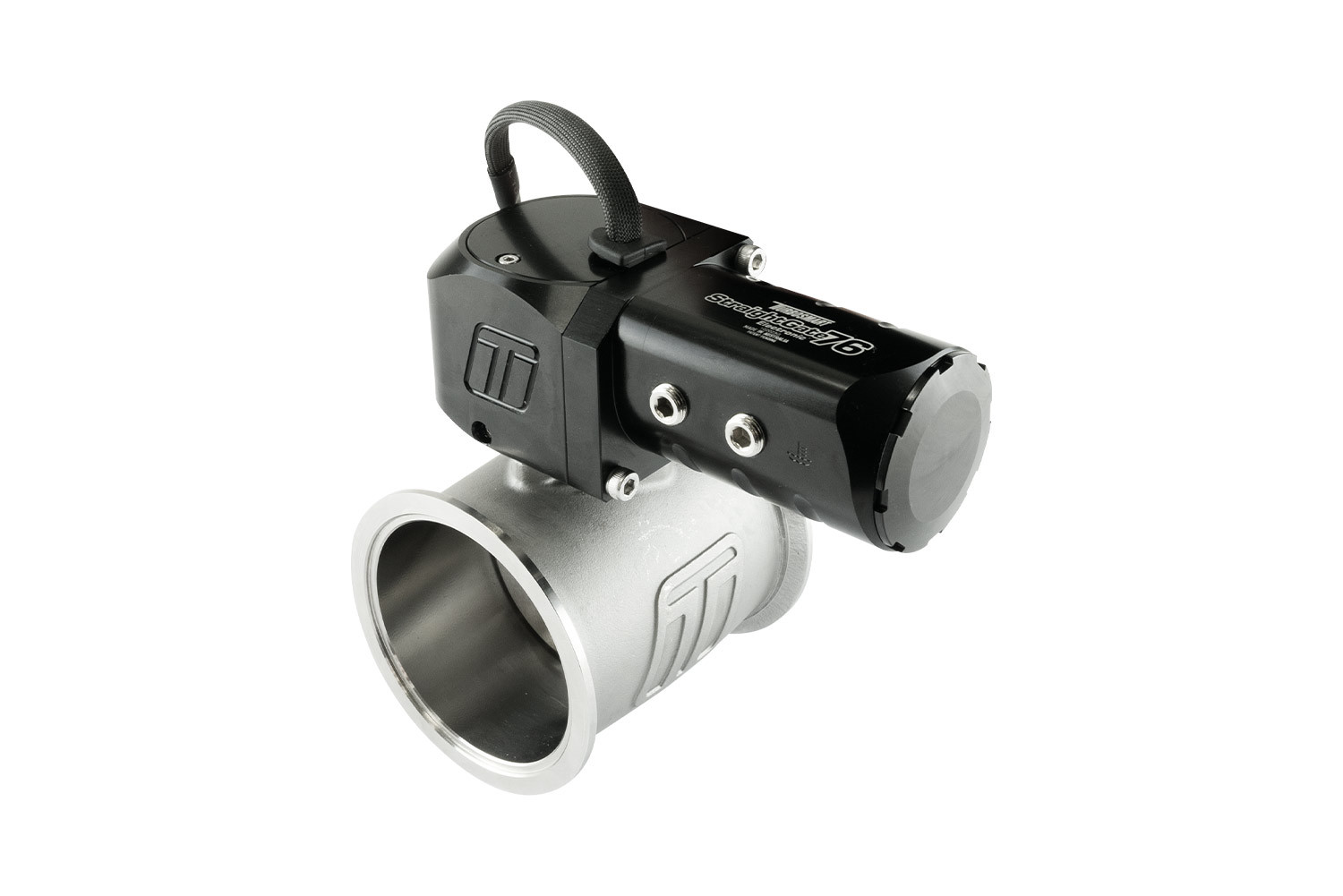

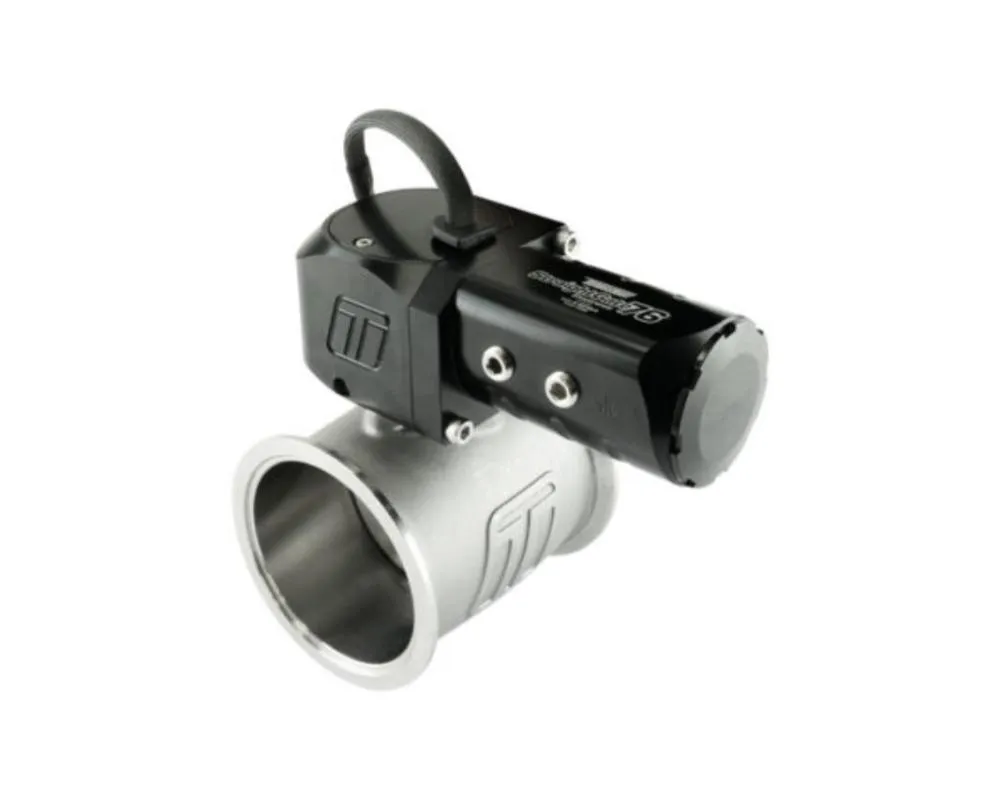

The Turbosmart Electronic StraightGate76 (eSG76) represents the world's highest flowing external wastegate, engineered to deliver unprecedented boost control for high-performance turbocharged engines. This 76mm butterfly-style wastegate features a zero-offset valve design with an impressive flow capacity of 723.7 CFM, surpassing traditional poppet-style wastegates through its straight-through flow path.
Advanced Electronic Actuation Technology:
The eSG76 features full electronic control via a servo motor and Turbosmart's zero-backdrive gearbox, eliminating reference hoses, springs, and diaphragms while delivering lower current demands and superior operation stability against extreme drive pressures. Onboard sensors monitor both actuator temperature and valve position in analog and digital formats, providing precise feedback for optimal tuning.
Self-Balancing Butterfly Valve Design:
The zero-offset butterfly valve is subjected to exhaust drive pressure equally on both halves, pivoting centrally to create a self-balanced valve that requires less work to actuate even against the highest drive pressures, enabling a wider tuning window. This innovative design delivers almost linear control throughout the entire boost range.
Premium Construction Features:
- Stainless steel 630 butterfly valve and shaft for exceptional durability
- Stainless steel 347 main body construction
- Heat-treated stainless steel 431 V-band clamps
- 360-degree mounting options on V-band
- Clock-able actuator position with three 120-degree options
- Dual H-Bridge input for full electronic actuation
- Liquid cooling provision for actuator stability
- 7-wire unterminated flying lead loom
What's Included:
- Electronic StraightGate76 unit with unterminated flying lead
- Inlet and outlet V-band clamps
- Inlet and outlet weld flanges
- Turbosmart decal
The eSG76 requires a programmable ECU with high-current H-bridge output or an external driver module like the Turbosmart BlackBox. Professional installation with welding and fabrication is required. This product is designed for off-road and racing applications.
