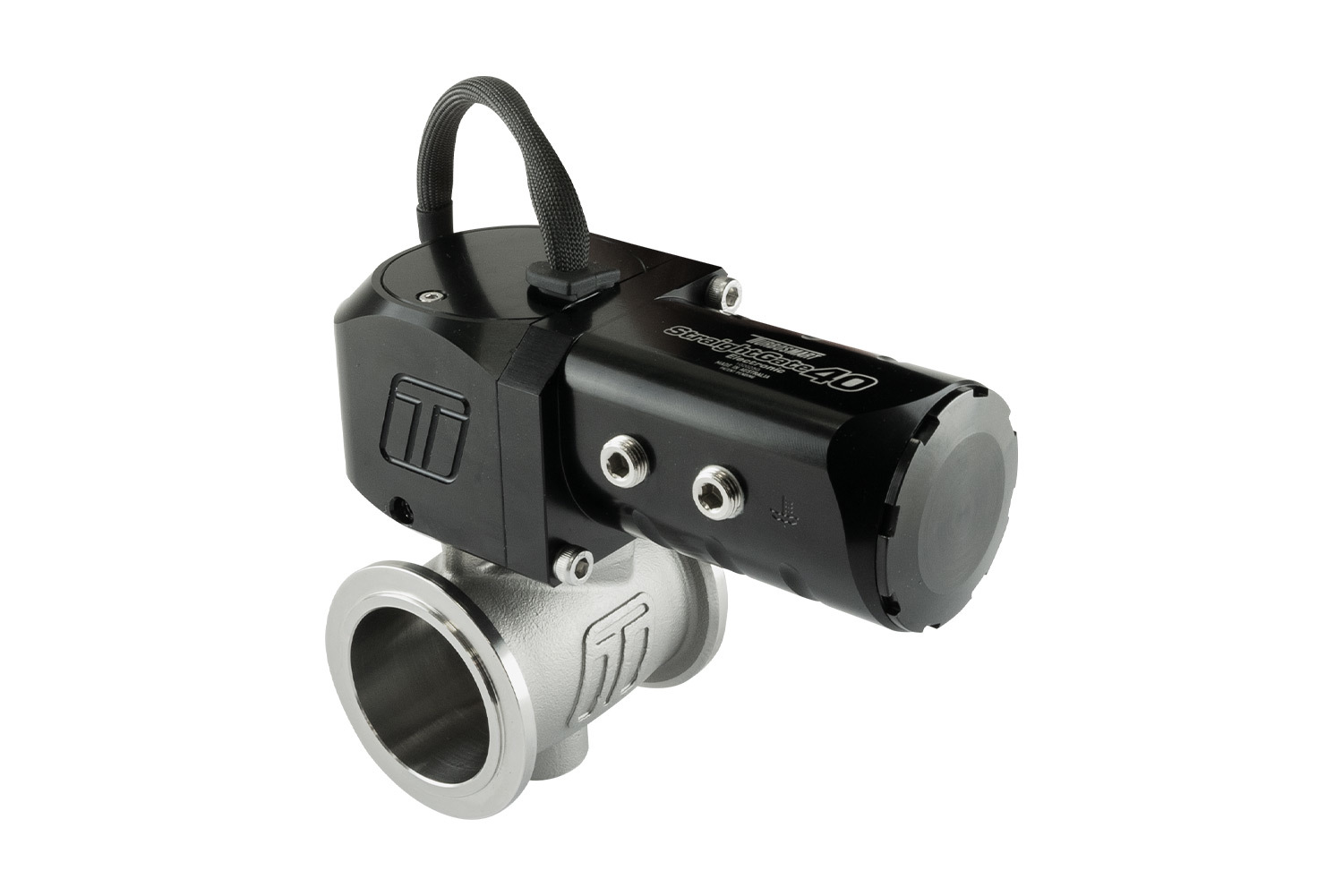

Turbosmart TS-0563-1002 eSG40 Electronic StraightGate 40mm External Wastegate Black

Part of: Turbosmart Electronic External Wastegate

Other options in this family: Turbosmart TS-0567-1002

Manufacturer

Part Number

TS-0563-1002
Sale Price

$1,242.89

In Stock (10)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Turbosmart eSG40 Electronic StraightGate is a patent-pending 40mm butterfly-style external wastegate designed for turbocharged engines where space is at a premium. This advanced wastegate represents the next generation of boost control technology, eliminating traditional springs, diaphragms, and boost reference hoses in favor of full electronic actuation.

Key Features:

  • 40mm (1.57") zero-offset butterfly valve design with 217.4 CFM flow capacity
  • 100% electronic actuation via servo motor and patented zero-backdrive gearbox
  • Onboard sensors for actuator temperature and valve position (analog and digital feedback)
  • Stainless steel construction: 630 butterfly and shaft, 347 main body, heat-treated 431 V-band clamps
  • 360-degree mounting options with clockable actuator position (3 x 120-degree options)
  • Liquid cooling for actuator stability under extreme conditions
  • Dual H-Bridge input for ECU control with 7-wire unterminated flying lead harness
  • Self-balancing valve design requires less actuation force against high drive pressures

The zero-offset butterfly design allows exhaust gases to flow straight through rather than redirecting 90 degrees like traditional poppet-style wastegates, resulting in superior flow efficiency and more linear boost control. The zero-backdrive gearbox technology ensures the valve remains stable even under hundreds of PSI of drive pressure when no power is applied, reducing current demands while maintaining precise control. Includes electronic StraightGate unit, inlet and outlet V-bands with weld flanges, and Turbosmart decal. Requires programmable ECU with high-current H-Bridge output or external controller such as Turbosmart BlackBox.

Note: Not CARB legal for sale or use in California on pollution-controlled vehicles.
