The Davies Craig DC-8970 is a complete electric water pump and digital controller combo kit, pairing the high-performance EWP150 Alloy Electric Water Pump with the LCD EWP/Fan Digital Controller in a single 12-volt package. Designed for remote inline mounting in the engine bay, this combo delivers precise, fully controlled cooling system performance for high-output, turbocharged, supercharged, and performance-built engines.

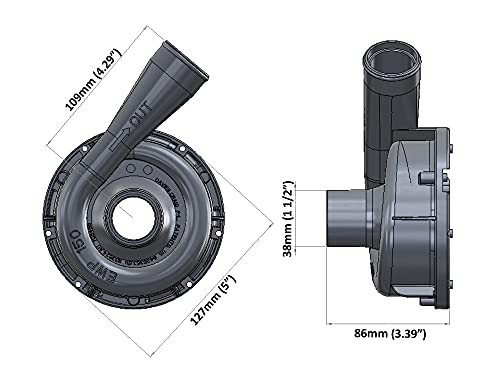

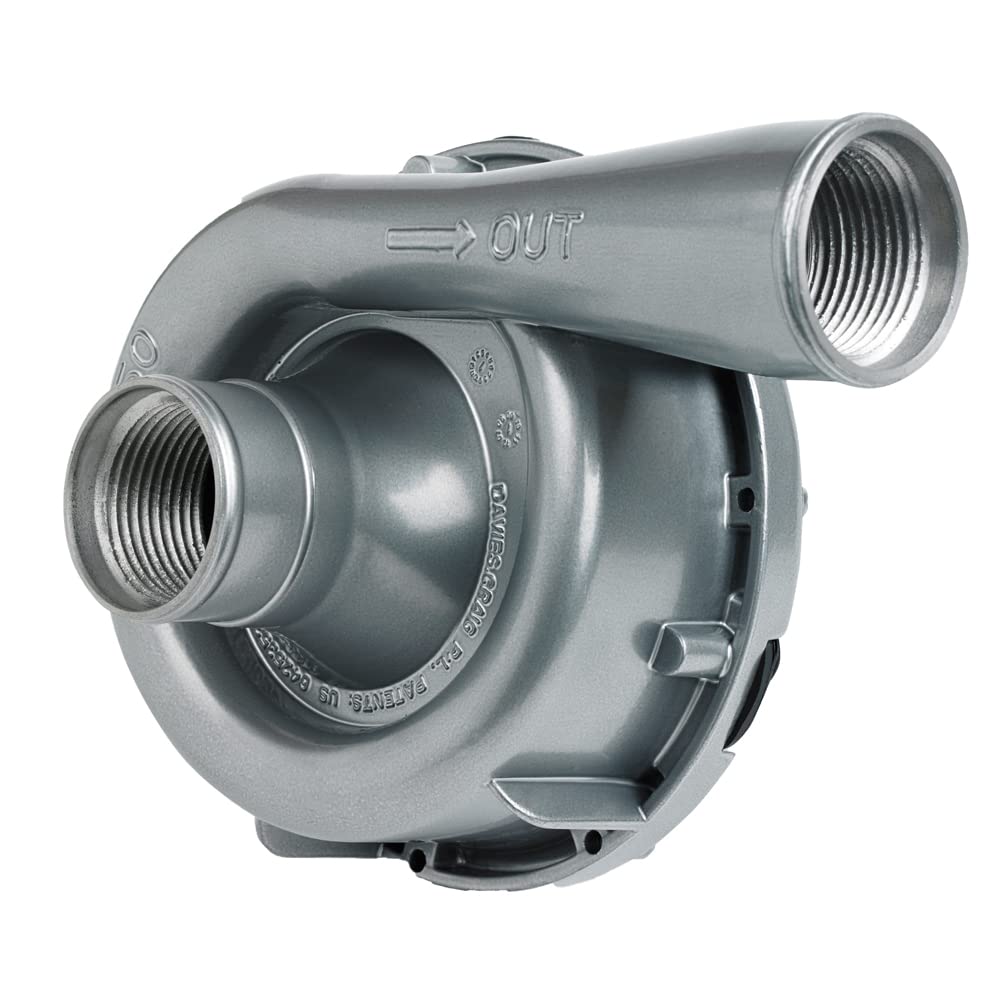

The EWP150 aluminum pump flows an impressive 150 litres per minute (42.8 GPM) and is built to complement or fully replace the factory belt-driven mechanical water pump. By eliminating the parasitic drag of a mechanical pump, the EWP150 can release up to 13 horsepower of additional power while improving torque and fuel economy. The pump features AN-16 threaded internal inlet and outlet ports (38mm / 1½" hose compatible with included sleeve adapters) and is constructed from lightweight aluminum with a ceramic-faced impeller seal for long service life.

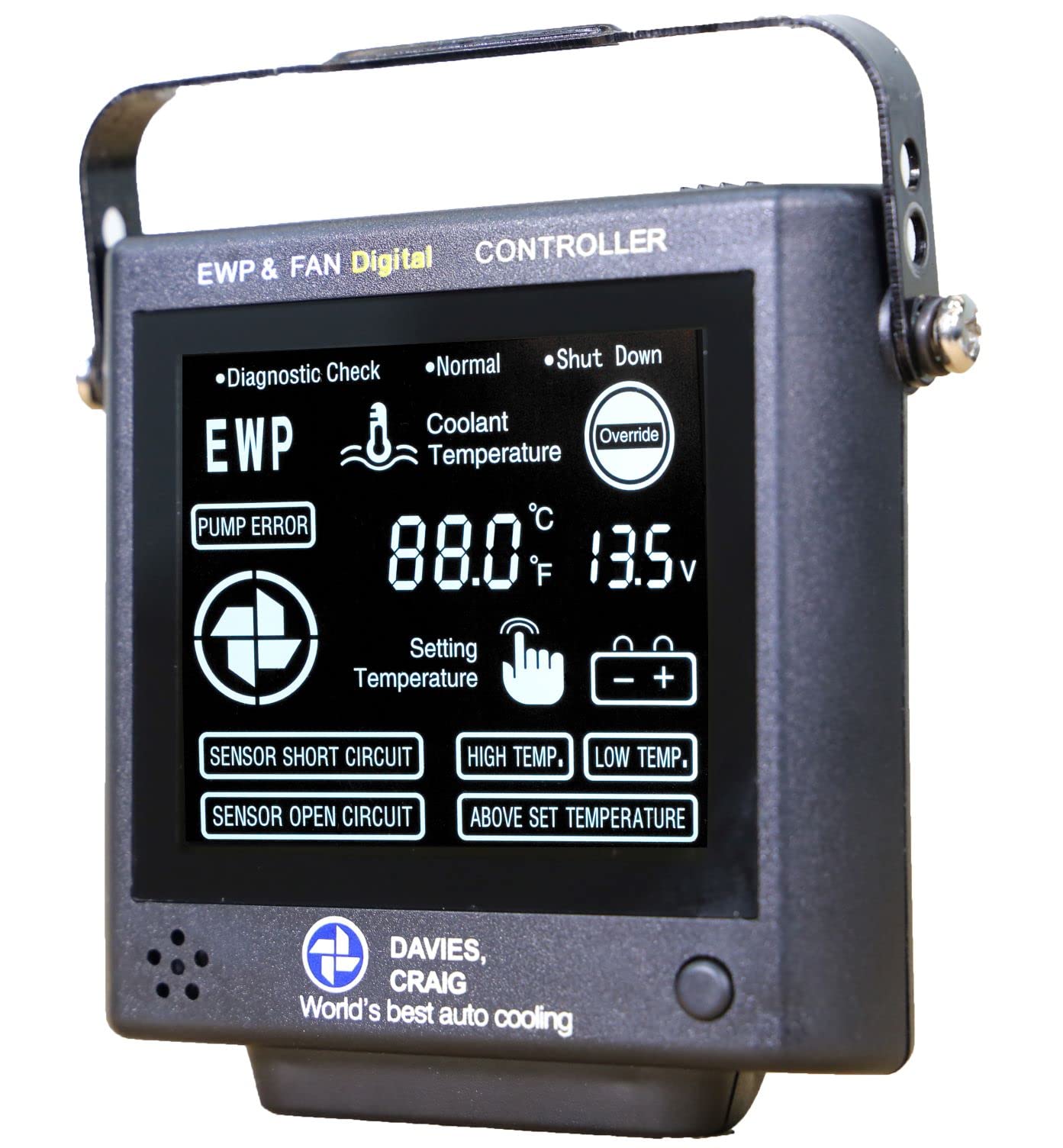

The included LCD EWP/Fan Digital Controller manages both the electric water pump and your electric engine fan. It varies pump speed in real time based on coolant temperature and activates the Thermatic fan automatically when coolant temperature rises 3°C (5.4°F) above the user-set target. The controller's push-button interface allows precise temperature targeting, and the system continues to run after engine shutdown to eliminate heat soak.
Key Features:
- Flow rate: 150 LPM / 42.8 GPM open flow
- Operating voltage: 12V DC (3–15V range)
- Maximum current draw: 10 amps
- Aluminum pump housing with AN-16 ORB internal inlet and outlet ports
- Pump weight: 1,170 g (2.6 lbs)
- Compatible with engines up to 7 litres (429 cubic inches)
- LCD controller varies pump speed based on live coolant temperature
- Automatic Thermatic fan activation at 3°C above set temperature
- Post-shutdown operation to eliminate heat soak
- Temperature sensor port: 1/4" NPT
- 2-year manufacturer warranty

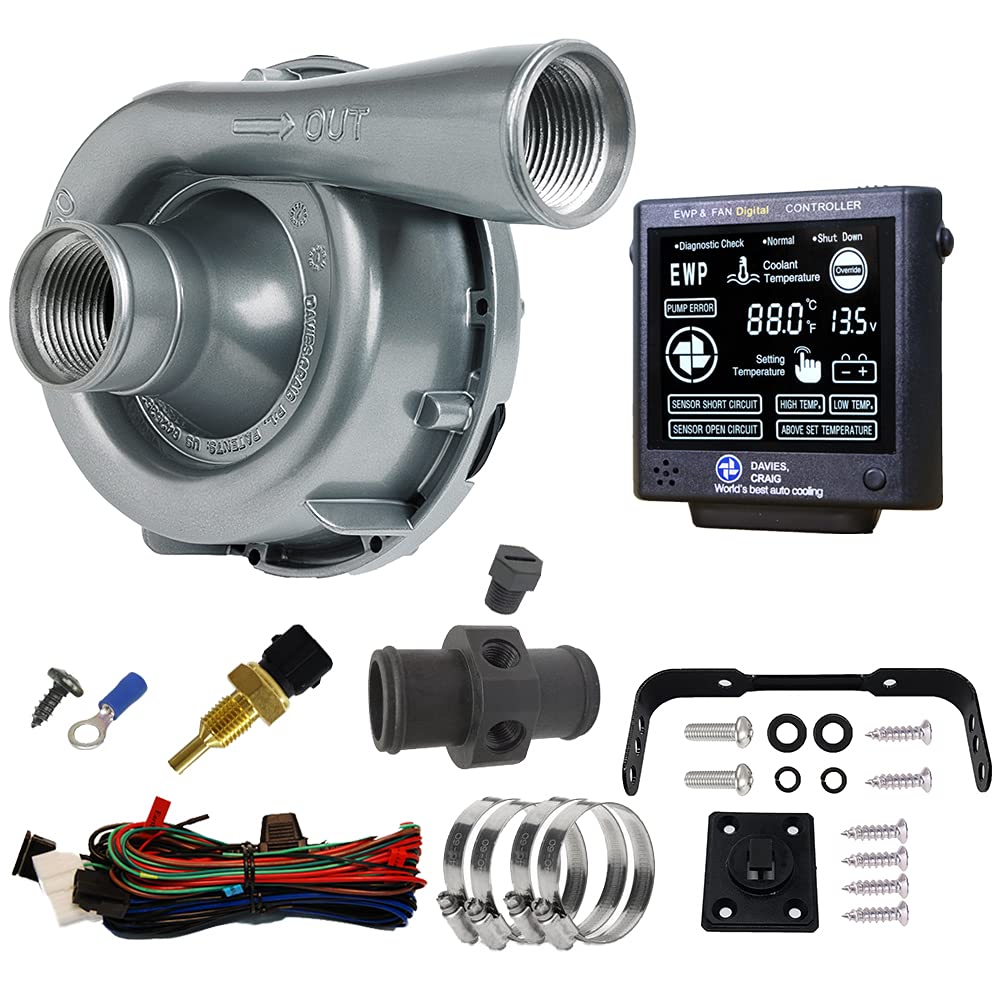

Kit Includes:
- EWP150 Alloy Electric Water Pump
- LCD EWP/Fan Digital Controller (Part #8002)
- Wiring harness
- In-line adapter
- Rubber sleeve reducers (4)
- Hose clamps (4)
- Temperature sensor assembly
- LED with pigtail
- Hardware and DIY instruction booklet
The Davies Craig DC-8970 combo is the most economical way to convert to a fully electric cooling system, delivering improved temperature management, increased engine longevity, and enhanced performance for street, 4WD, and motorsport applications.
