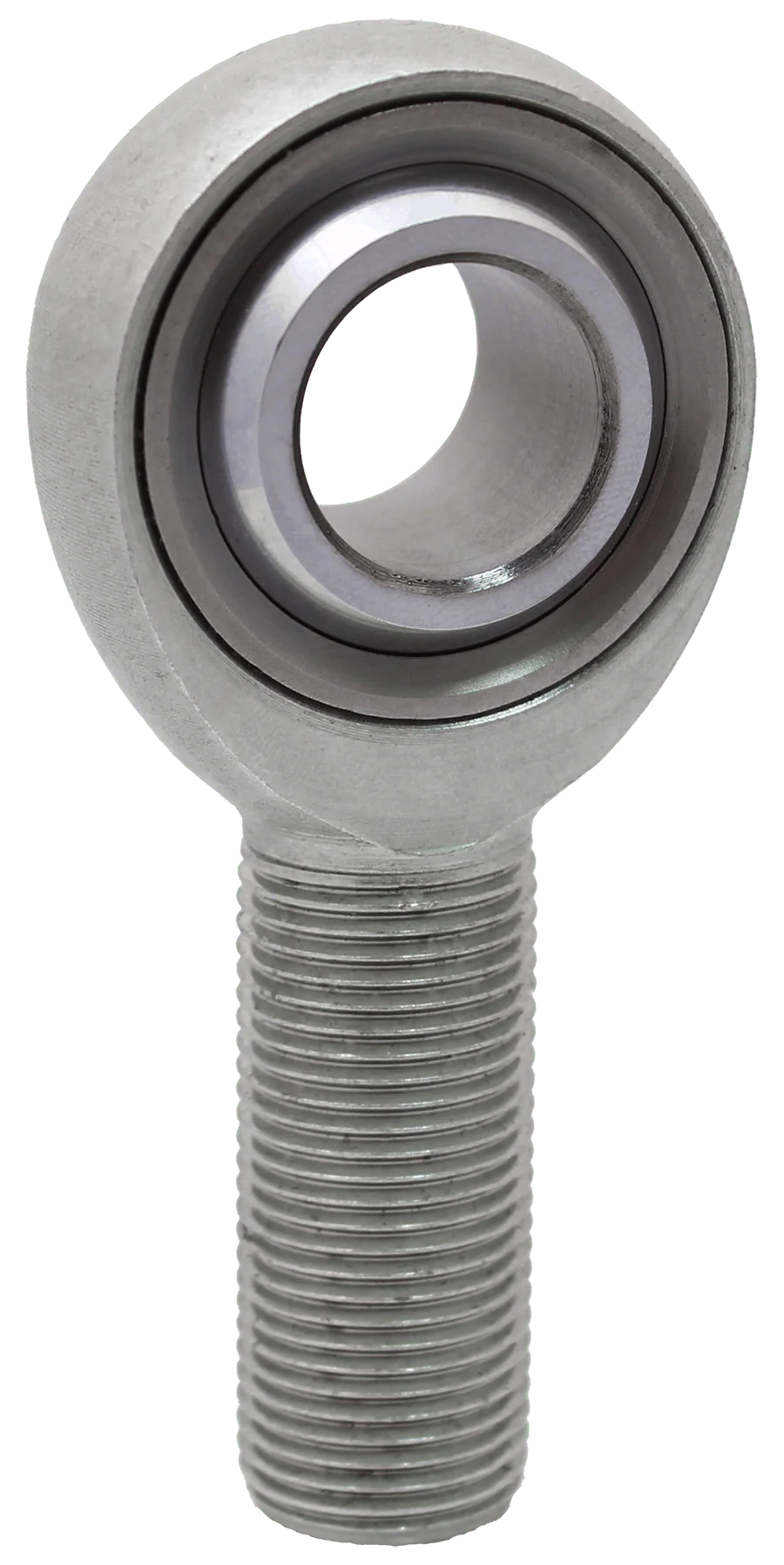

QA1 HMR10-12T H Series 3-Piece Chromoly Rod End with 5/8" Bore and 3/4"-16 LH Thread

Manufacturer

Part Number

HMR10-12T
Black Friday Price

$35.29

$42.67 Save 17%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 HMR10-12T is a precision-engineered H Series rod end designed for demanding steering and suspension applications. This traditional three-piece chromoly steel rod end features a male right-hand thread configuration with PTFE liner for smooth articulation and reduced friction.

Key Features:

  • Three-piece chromoly steel construction with heat treatment for superior strength and durability
  • 5/8 inch (0.625") bore diameter with 3/4"-16 left-hand male thread
  • 52100 bearing steel ball that is heat treated, hard chrome plated, and precision ground
  • Chromoly heat-treated steel race with corrosion and wear resistance
  • PTFE liner for smooth operation and extended service life
  • Protective coating on body for corrosion resistance
  • 1.75 inch rod end head diameter with 0.75 inch head width
  • 1.75 inch thread length for versatile mounting options

QA1's H Series rod ends are precision components built for high-performance street, racing, and custom automotive applications. The three-piece design allows for rebuild capability while maintaining tight tolerances for precise steering and suspension geometry. Compatible with tie rod assemblies, control arms, and other critical chassis linkages where reliability and precision are essential.

Products specifications

A (+/-0.015)

2.875

Approx Bearing Weight

0.57

B (+0.0015/-0.0005)

0.625

Ball Dia Ref

1.125

C (+0.062/-0.031)

1.75

D (+/-0.010)

1.75

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

13

Quantity

Sold individually.

Rod End Attachment

Male threads

Rod End Ball Width

0.750 in.

Rod End Centerline Length

2.875 in.

Rod End Construction

3-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.625 in.

Rod End Head Diameter

1.750 in.

Rod End Head Width

0.750 in.

Rod End Material

Chromoly

Rod End Misalign Angle (degrees)

13 degrees

Rod End Static Load Capacity

40,572 lbs.

Rod End Style

PTFE lined

Rod End Thread Size

3/4-16 RH in.

T (+/-0.005)

0.562

Thread Length

1.750 in.

Thread Type

Right Hand

Thread UNF-3A

3/4 -16

UTL Radical Static

40572

W (+0.000/-0.005)

0.75

Prop 65
