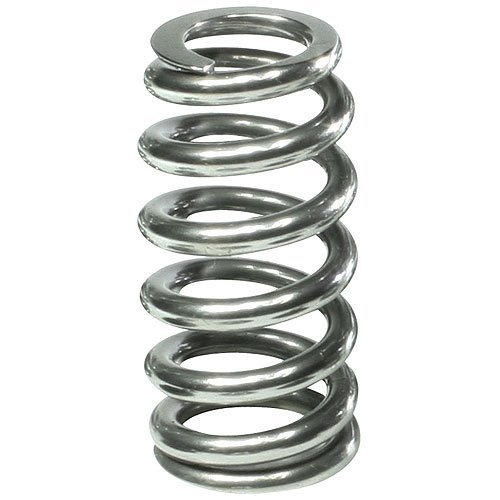

Manley 221434-1 NexTek Single Beehive Valve Spring 1.126 in. O.D. 330 lbs./in.

Manufacturer

Picture for manufacturer Manley

Part Number

221434-1
6 reviews
Sale Price

$20.17

In Stock (10+)

delivery box

Usually delivered within 2 days

Check out with

ApplePay
Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Manley 221434-1 NexTek Single Beehive Valve Spring is a high-performance, single conical ovate wire valve spring engineered for purpose-built performance and racing engines. With a 1.126 in. bottom outer diameter tapering to a 1.016 in. top, this lightweight beehive design allows the engine to rev higher and faster compared to traditional cylindrical springs.

Manufactured from super-clean, high-tensile chrome silicon steel and shot-peened to MIL specifications, this spring delivers maximum fatigue life and long-term durability under extreme valve train loads. A proprietary multi-step heat-treating process minimizes load loss over time, while computer-aided modeling reduces valve bounce and valve gear separation for precise, consistent valve control.

Key Features:

  • Single beehive (conical ovate wire) design — smaller diameter and lighter weight than conventional springs
  • Outer Diameter: 1.016 in. (top) / 1.126 in. (bottom)
  • Inner Diameter: 0.640 in. (top) / 0.750 in. (bottom)
  • Spring Rate: 330 lbs./in.
  • Seat Pressure: 95 lbs. @ 1.420 in. installed height
  • Open Pressure: 270 lbs. @ 0.895 in.
  • Maximum Valve Lift: 0.525 in.
  • Coil Bind Height: 0.860 in.
  • Weight: 45 grams
  • No damper included
  • Shot-peened to MIL specifications for maximum fatigue life
  • Extended tip thickness eliminates overload breakage
  • Tightly controlled open-end flatness reduces valve stem side loading
  • Sold individually (single spring)

The NexTek beehive profile reduces the reciprocating mass of the valve train, which lowers the load required to control the valves at high RPM. This makes the Manley 221434-1 an ideal upgrade for high-revving performance engines running aggressive aftermarket camshafts.
