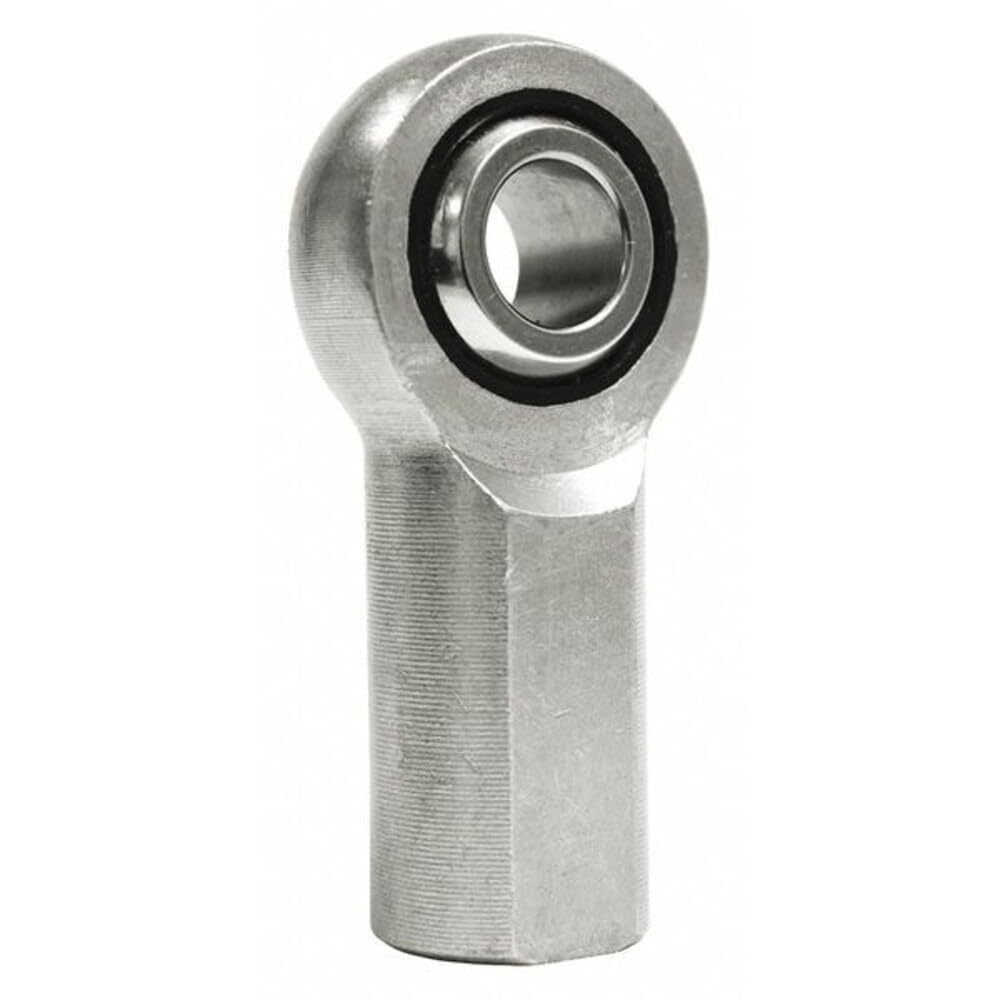

QA1 Precision Products NFR3 Rod End Bearing 3/16 Bore 10-32 RH Female

Manufacturer

Part Number

NFR3
Black Friday Price

$5.19

$16.14 Save 68%

In Stock (10+)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The QA1 Precision Products NFR3 is an economical N Series injection molded rod end designed for suspension linkage and control applications. This female-mounted rod end features a durable carbon-reinforced composite construction that provides reliable performance in non-extreme duty applications.

Key Specifications:

  • Bore Size: 3/16 inch (0.1875")
  • Thread Size: 10-32 right hand threads
  • Mounting Style: Female (internal threads)
  • Construction: Injection molded carbon composite
  • Series: N Series Economy

This rod end bearing is ideal for budget-conscious builders who need dependable articulation in suspension systems, throttle linkages, and light-duty mechanical connections. The self-lubricating composite material eliminates the need for regular maintenance while providing smooth rotation throughout its service life.

Products specifications

A (+/-0.015)

1.062

Approx Bearing Weight

0.04

B (+0.0025/-0.0005)

0.19

Ball Dia Ref

0.437

C (+0.062/-0.031)

0.562

D (+/-0.010)

0.625

E (+/-0.010)

0.406

F (+/-0.010)

0.312

Grease Fitting

No

Heat-Treated

Yes

Jam Nut Included

No

Misalign Angle

13

Notes

Only rod end ball is heat-treated.

Quantity

Sold individually.

Rod End Attachment

Female threads

Rod End Ball Width

0.312 in.

Rod End Centerline Length

1.062 in.

Rod End Construction

1-piece

Rod End Finish

Zinc plated

Rod End Head Bore Size

0.190 in.

Rod End Head Diameter

1.062 in.

Rod End Head Width

0.312 in.

Rod End Material

Carbon steel

Rod End Misalign Angle (degrees)

13 degrees

Rod End Style

Nylon lined

Rod End Thread Size

10-32 RH NF

T (+/-0.005)

0.25

Thread Length

0.562 in.

Thread Type

Right Hand

Thread UNF-2B

10-32

UTL Radical Static

1,210

W (+/-0.005)

0.312
