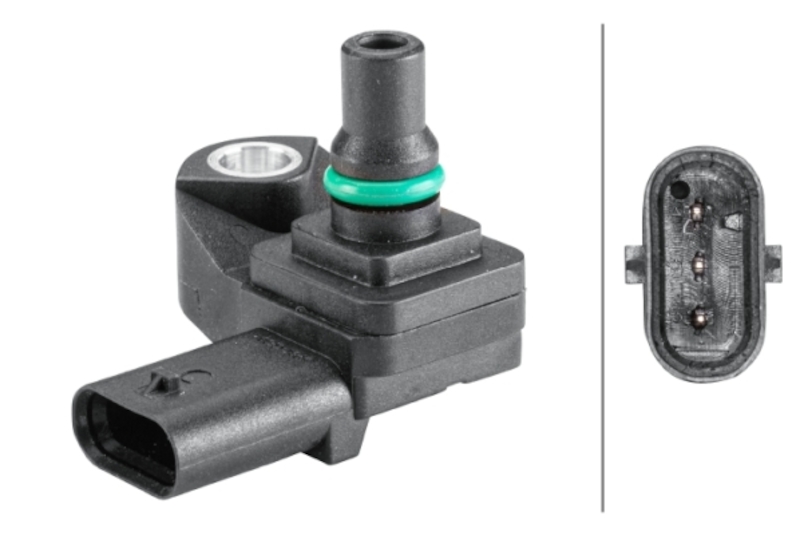

Hella 358152401 Manifold Absolute Pressure Sensor

The Hella 358152401 Manifold Absolute Pressure Sensor (MAP sensor) is a precision electronic component designed to monitor intake manifold pressure and provide critical data to the engine control unit. This sensor measures the difference between atmospheric pressure and the vacuum in the intake manifold, allowing the ECU to calculate air density and determine the correct fuel delivery and ignition timing for optimal engine performance.

Key Features:

• Utilizes advanced Wheatstone bridge technology with screen-printed membrane construction for accurate pressure readings
• Features integrated signal conditioning electronics that convert mechanical pressure changes into a voltage signal
• Operates on a constant 5-volt reference voltage for precise, proportional output
• Designed for direct mounting into the intake manifold or installation in the intake hose depending on application
• Built to OEM specifications for reliable performance and proper ECU communication
• Constructed with durable materials to withstand harsh under-hood environments

This sensor plays a vital role in engine management by continuously monitoring manifold vacuum conditions. When the engine is at rest, the sensor membrane responds to atmospheric pressure, while during operation, intake vacuum influences the membrane resistance, generating corresponding voltage changes that inform fuel injection and timing calculations. Essential for maintaining proper air-fuel ratios, smooth idle, and optimal fuel efficiency.
