RADIUM Engineering 20-0092-FL Crankcase Catch Can Kit with Fluid Lock

The RADIUM Engineering 20-0092-FL is a complete crankcase catch can kit engineered specifically for 2000-2005 Honda S2000 models with left-hand drive configurations. This single catch can system interfaces directly with the 1/2-inch valve cover breather port and air intake pipe to effectively capture oil vapors and contaminants before they enter the intake system.

Fluid Lock Technology:

This kit features RADIUM's patented Fluid Lock catch can design, which prevents the reservoir from overfilling and securely traps collected fluids until emptied. The catch can draws out oil and water condensation from crankcase gases that would otherwise contaminate the intake manifold, throttle body, and intake system walls.

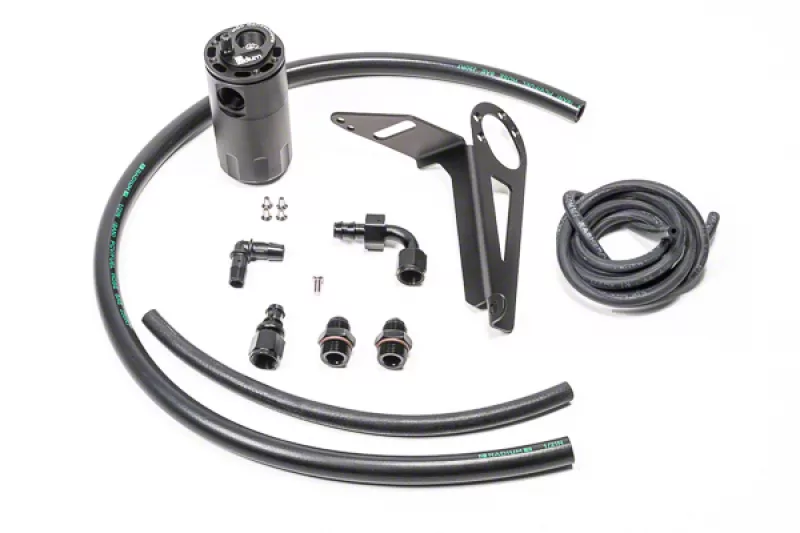

Complete Kit Includes:

• RADIUM billet aluminum catch can with integrated condenser and dipstick
• Laser-cut anodized S2000-specific mounting bracket
• Anodized aluminum -8AN hose ends and adapter fittings
• 1/2-inch PCV rubber hose for custom applications
• Vacuum and heater hose to eliminate OEM metal hard tube loom
• Stainless steel mounting hardware

Performance Benefits:

At low engine loads, the crankcase vent line experiences atmospheric pressure, but at wide-open throttle (WOT) and high loads, the system experiences vacuum that would normally draw unwanted crankcase vapors, unspent fuel, and oil sludge into the air intake pipe. This catch can prevents contamination while maintaining a closed-loop system that is emissions and track legal. The kit is compatible with all strut tower braces and provides essential protection for performance-driven vehicles, especially those running forced induction.

Important Note: This kit is designed exclusively for 2000-2005 left-hand drive S2000 models and is NOT compatible with right-hand drive or 2006-2009 S2000 models. Installation instructions are available at www.radiumauto.com.
